AP6015A

Introduction

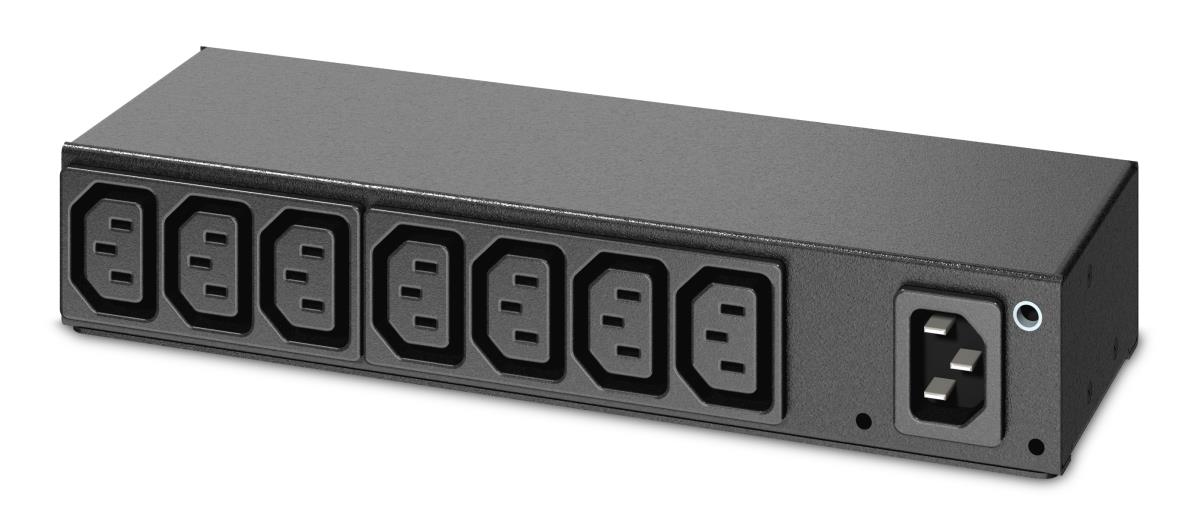

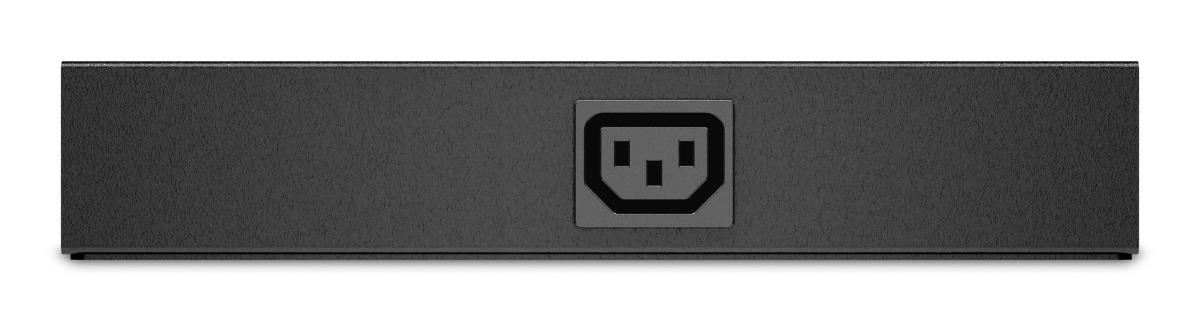

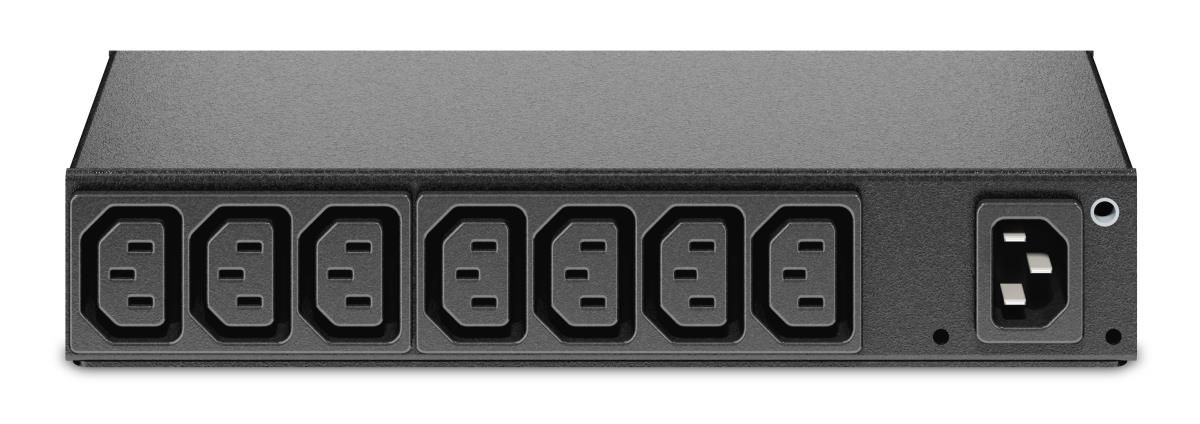

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Specifications

Design
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Certification	VDE, CE
Rack capacity	0U/1U
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Features
Cable length	3.65 m
Certification	VDE, CE
Ergonomics
Cable length	3.65 m
Power
Maximum power	2300 W
Nominal input voltage	230 V
Nominal output voltage	120 - 240 V
Maximum current	10 A
Maximum input current per phase	10 A
Load capacity	2300 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	VDE, CE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Technical details
Compliance certificates	RoHS
