Part No:AP8653
Stock:1 In Stock
EAN Code:0731304276982

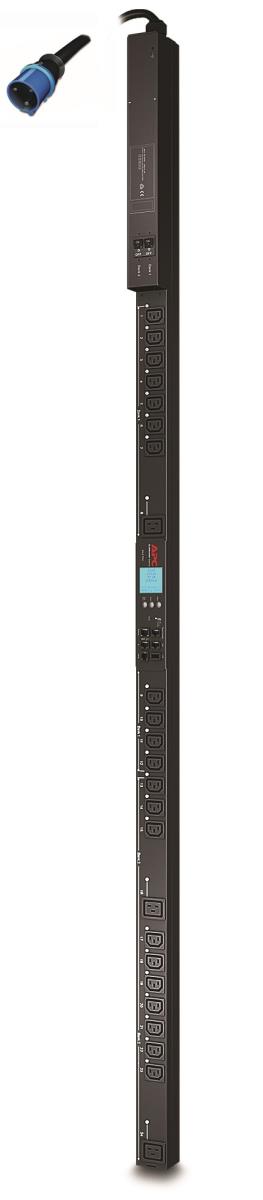

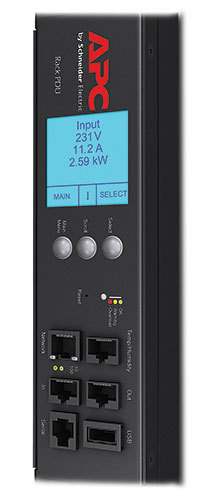

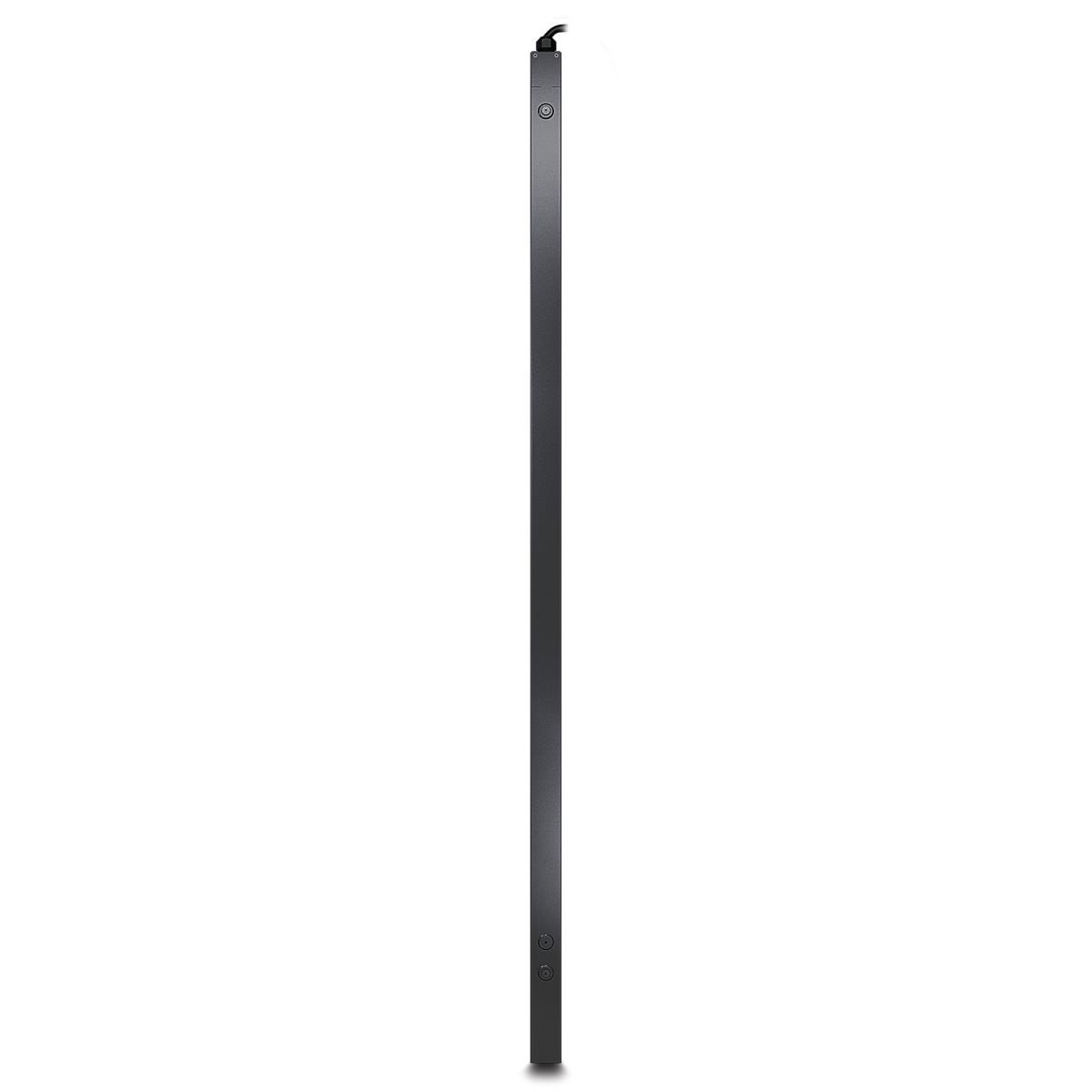

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Includes: CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable
Design | |
---|---|
Type | Single-phase |
PDU types | Metered, Metered-by-outlet, Switched |
Mounting | Vertical |
Product colour | Black |
Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
Rack capacity | 0U |
Ports & interfaces | |
AC outlets quantity | 24 AC outlet(s) |
AC outlet types | C13 coupler, C19 coupler |

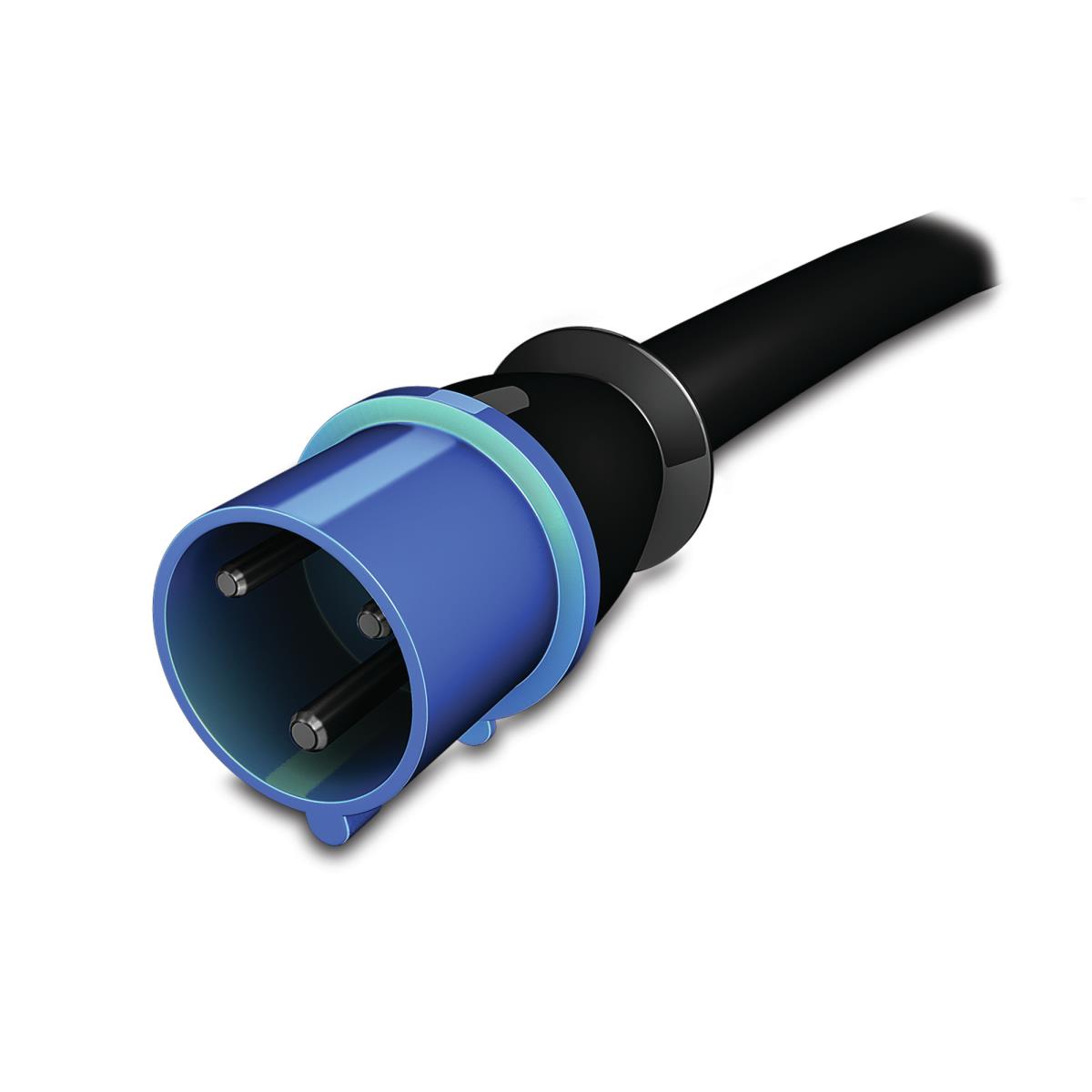

Power plug | IEC309 |
Features | |
Cable length | 3 m |
Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
Management features | |
Monitoring | Current, Power, Voltage |
Outlet control | Lock-out, Recycle, Turn off, Turn on |
Ergonomics | |
Cable length | 3 m |
Power | |
Maximum power | 7680 W |
Nominal input voltage | 230 V |
Nominal output voltage | 230 V |
Power protection features | Overload |
Maximum current | 32 A |
Maximum total current draw per phase | 32 A |
Maximum input current per phase | 32 A |
Load capacity | 7680 VA |
AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
Dimensions (WxDxH) | 56.00 x 51.00 x 1829.00 mm |
Weight | 8.23 kg |
Package weight | 10.5 kg |
Package dimensions (WxDxH) | 162.00 x 118.00 x 2038.00 mm |
Packaging data | |
Package weight | 10.5 kg |
Package dimensions (WxDxH) | 162.00 x 118.00 x 2038.00 mm |
Operational conditions | |
Operating temperature (T-T) | -5 - 45 °C |
Storage temperature (T-T) | -25 - 65 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Technical details | |
Sustainability certificates | RoHS |
