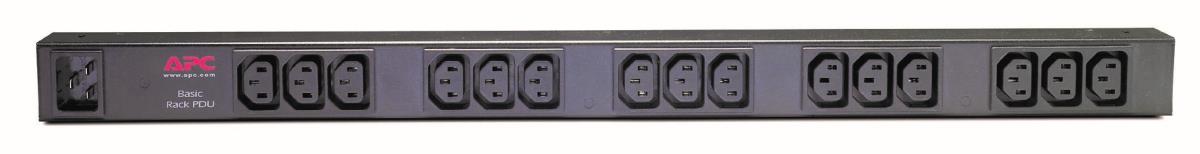

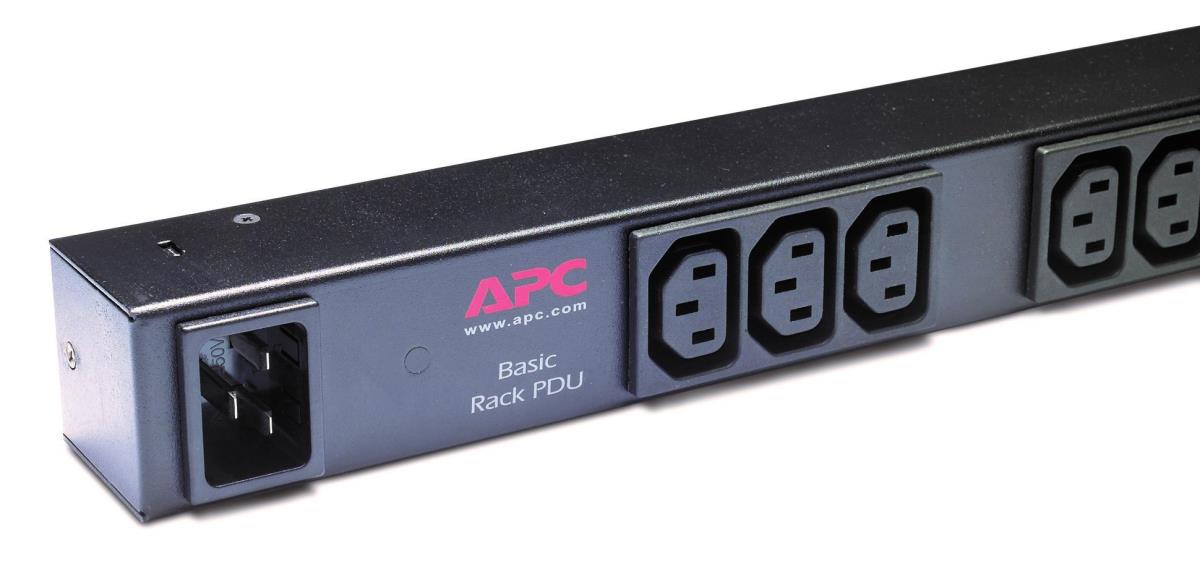

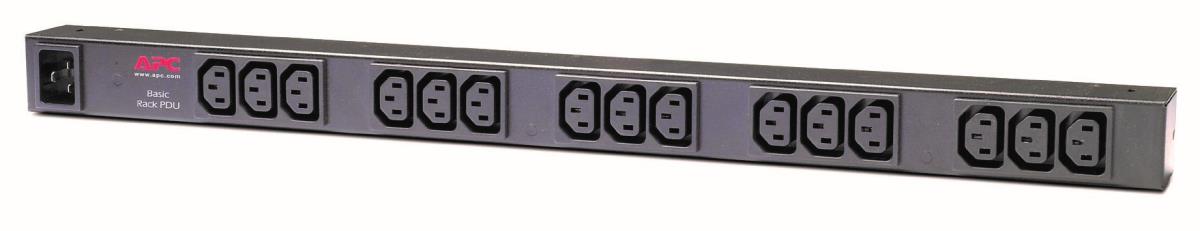

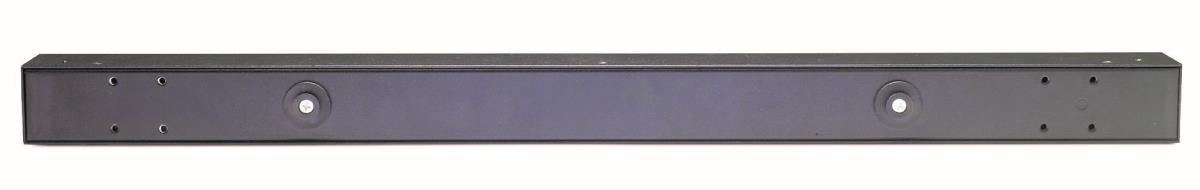

AP9572 APC RACK PDU BASIC ZERO U
Introduction
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.
Specifications
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 15 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Output connections | (15) IEC 320 C13 |
| Input connection type | IEC-320 C20 |
| Features | |
| Cable length | 2.5 m |
| Ergonomics | |
| Cable length | 2.5 m |
| Power | |
| Maximum power | 3680 W |
| Nominal input voltage | 23 V |
| Output voltage | 230 V |
| Maximum total current draw per phase | 16 A |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 2 kg |
| Width | 44 mm |
| Depth | 44 mm |
| Height | 620 mm |
