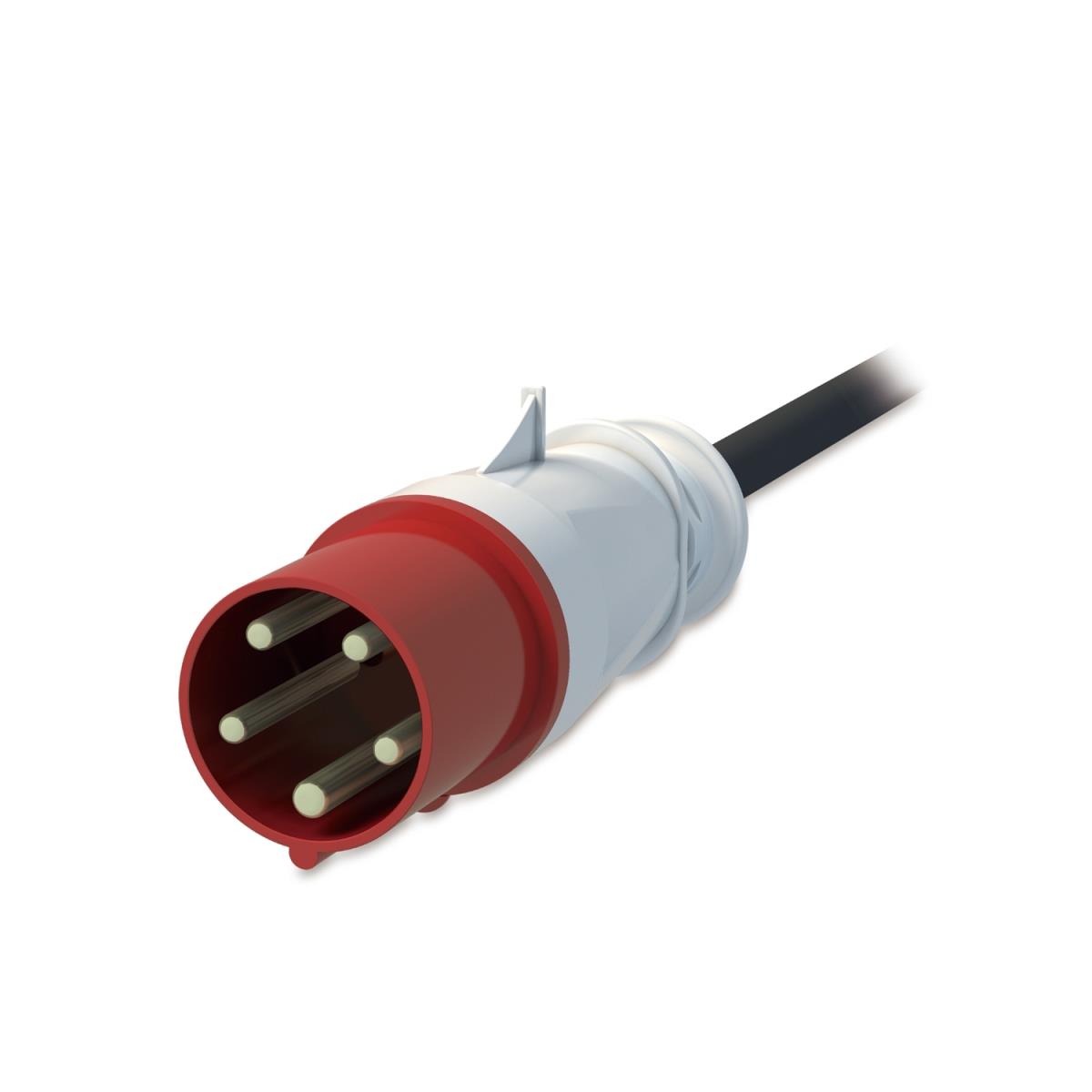

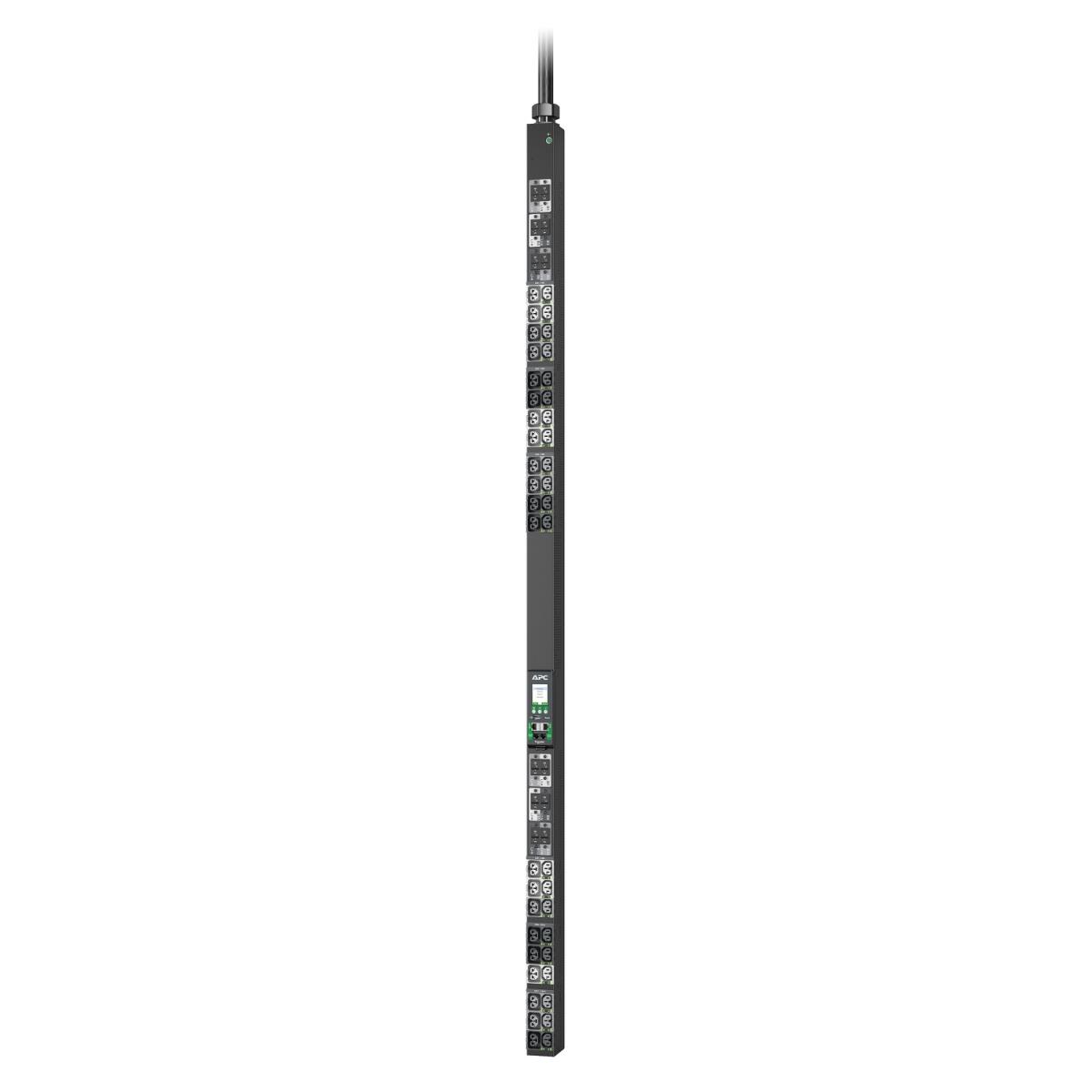

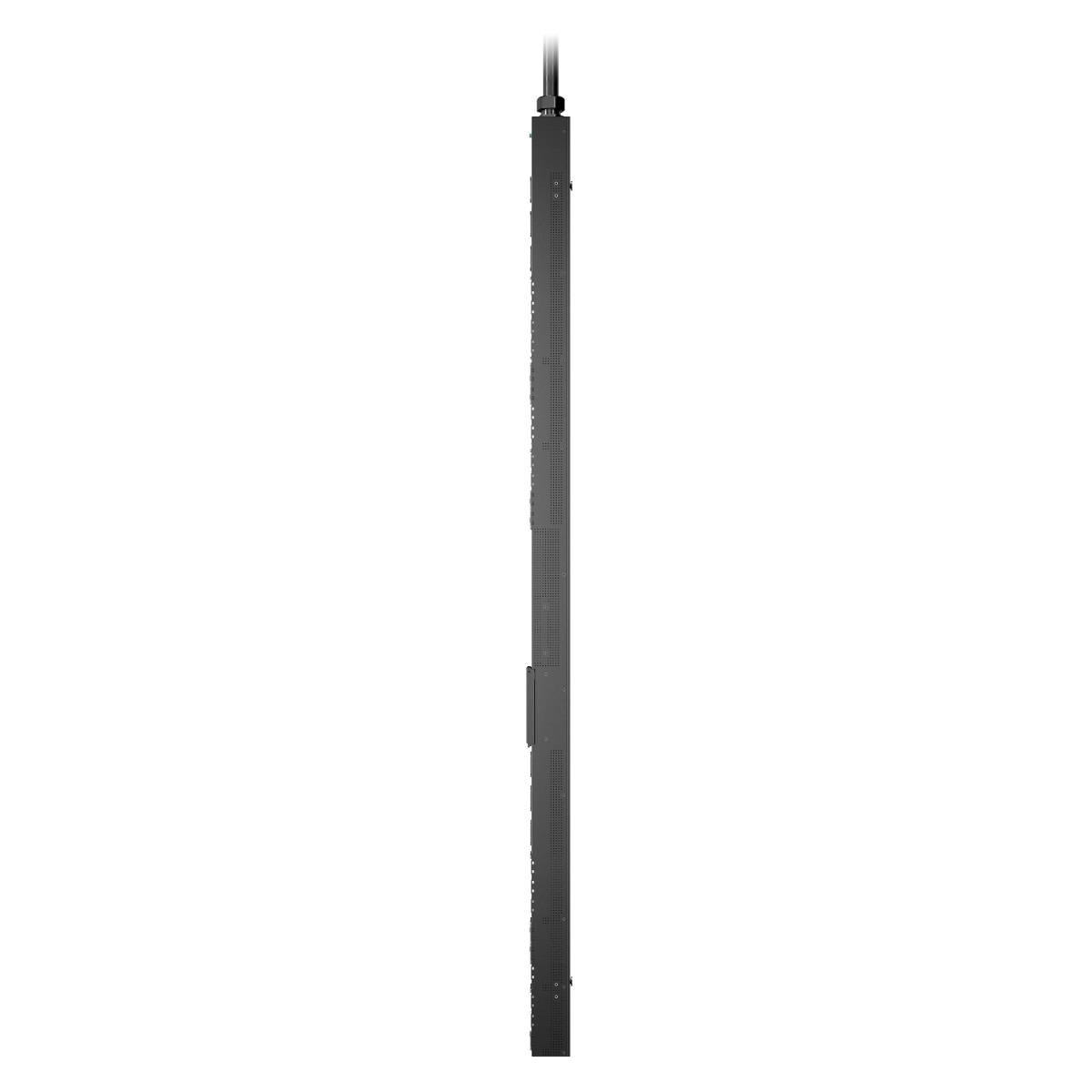

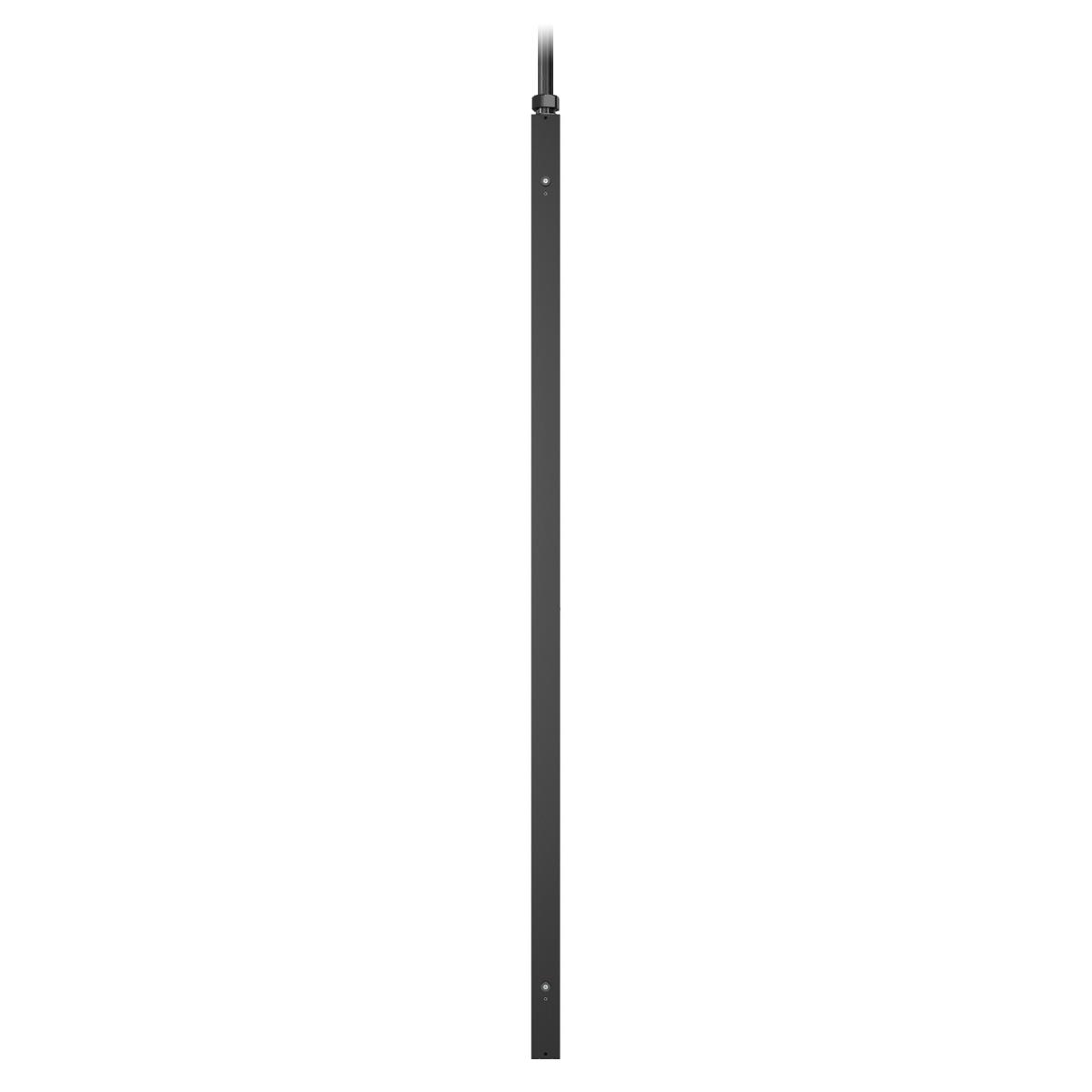

NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched metered outlet - AC 415 V - 34.6 kW - 34600 VA - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 560P6 - output connectors: 42 (21 x IEC 60320 C13/C15, 21 x IEC 60320 C13
Introduction

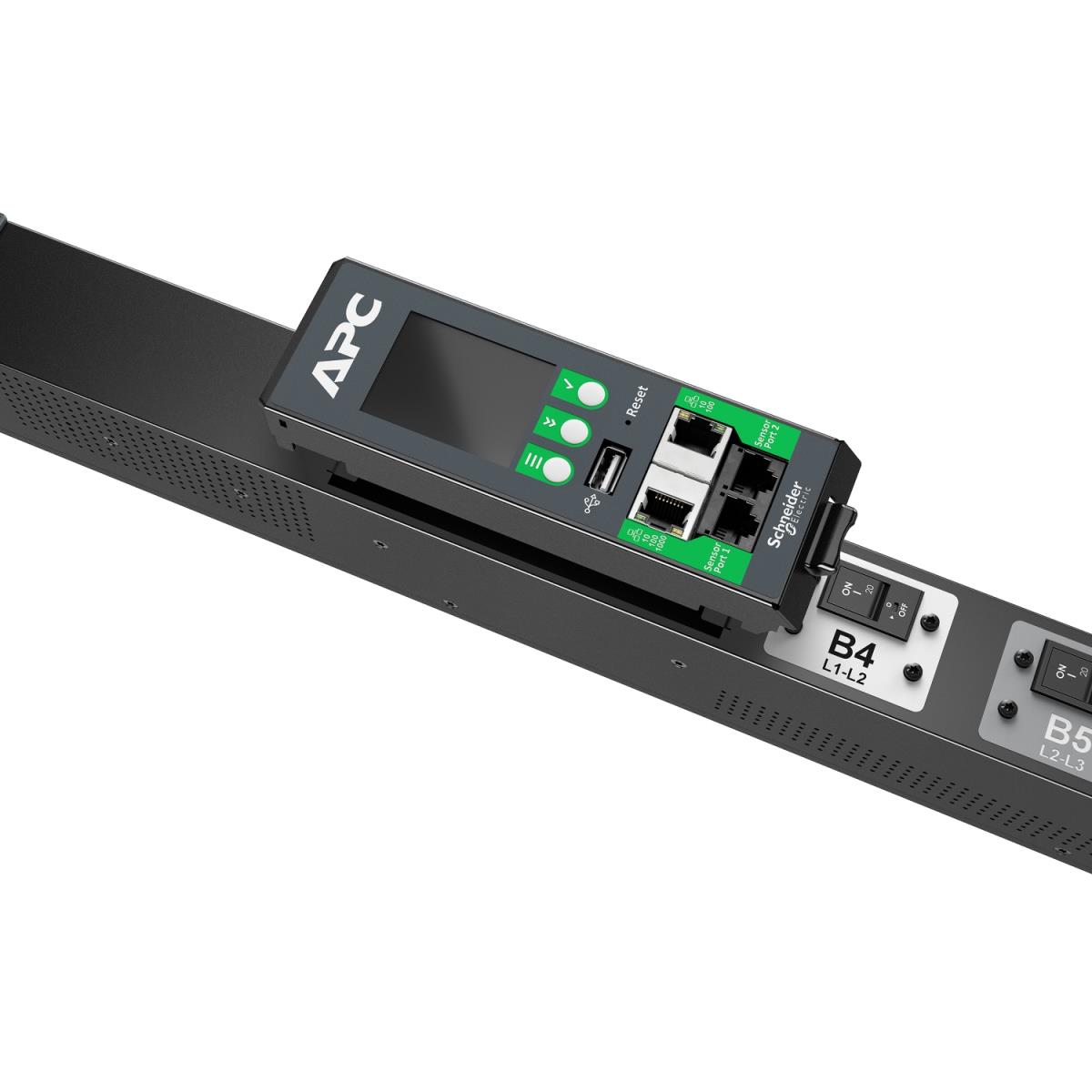

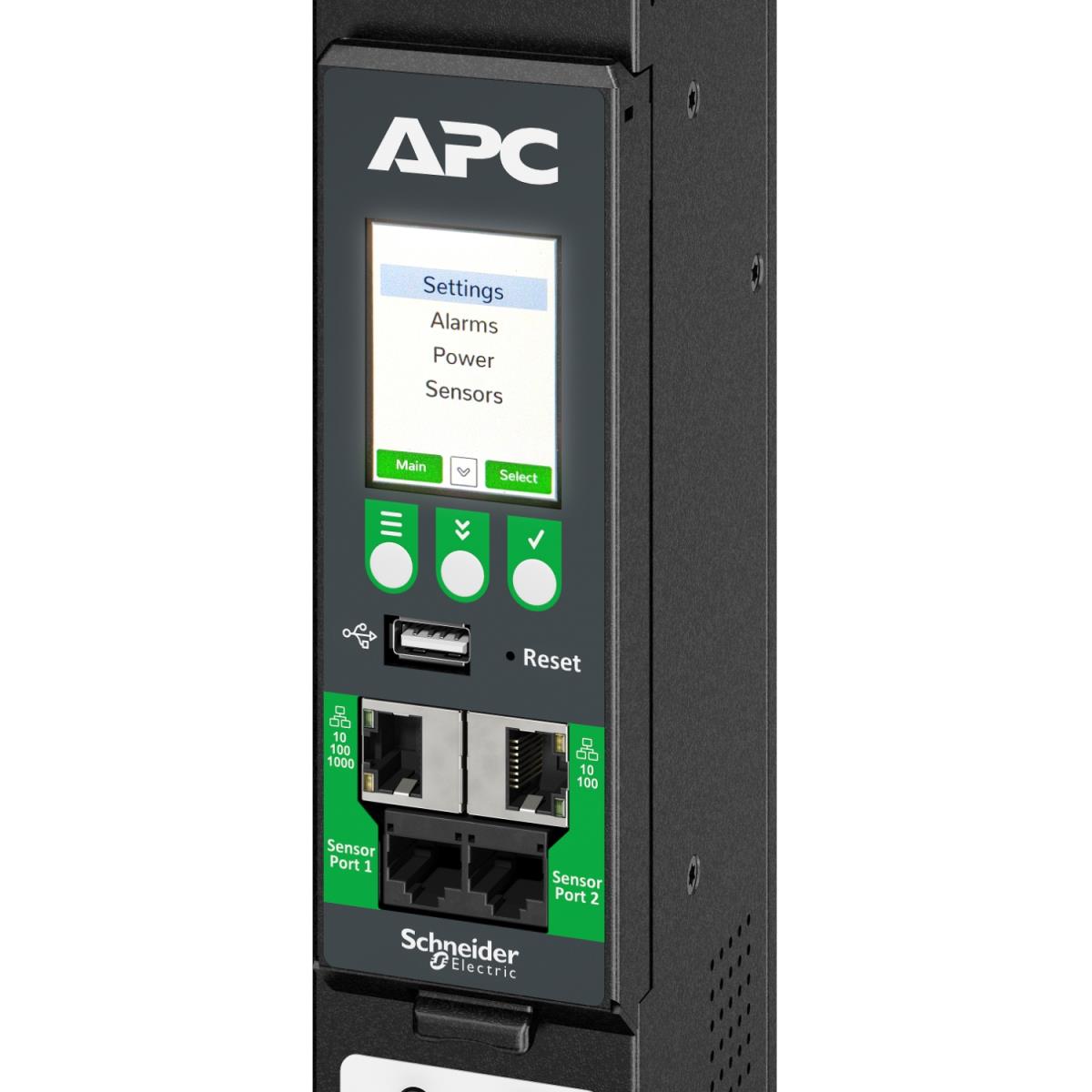

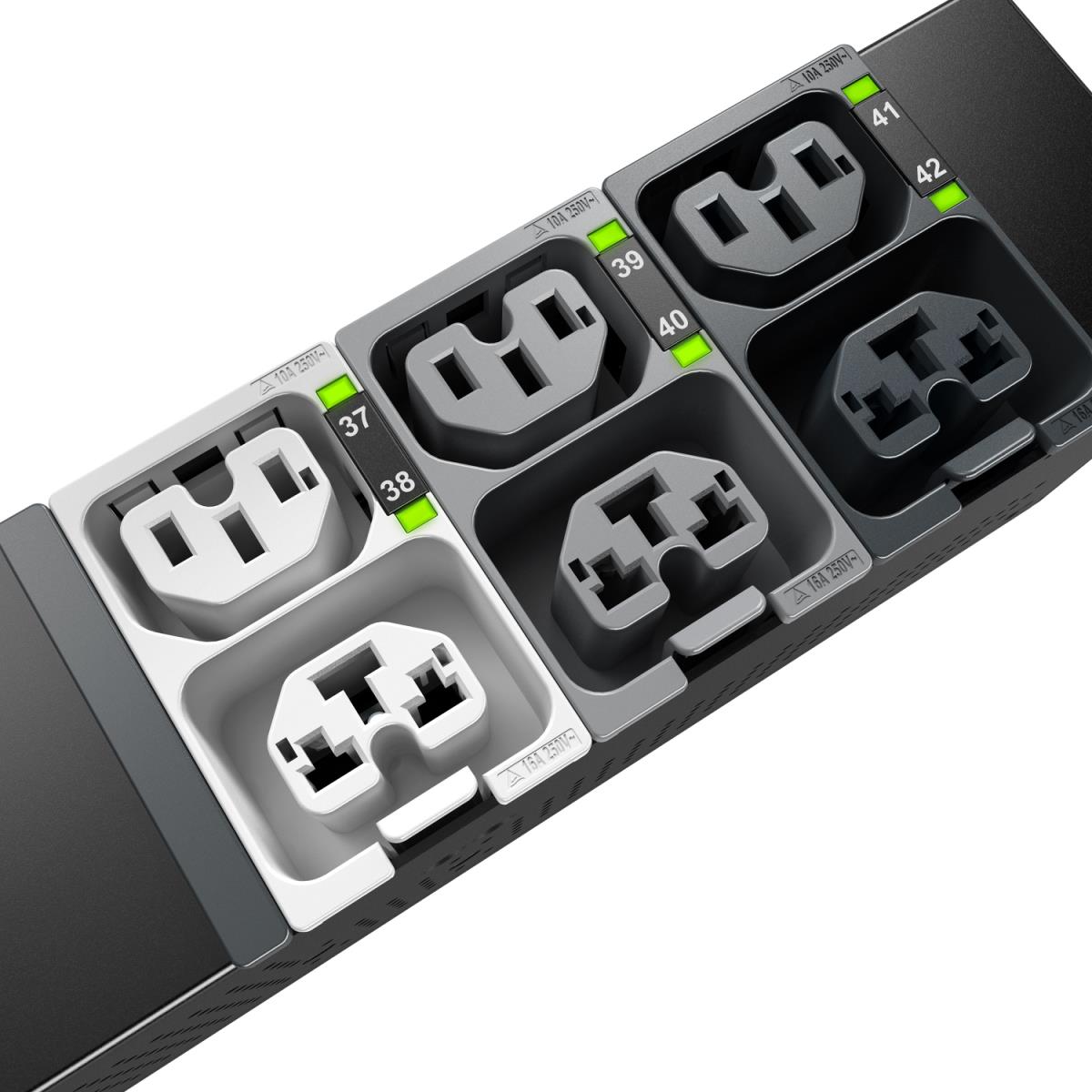

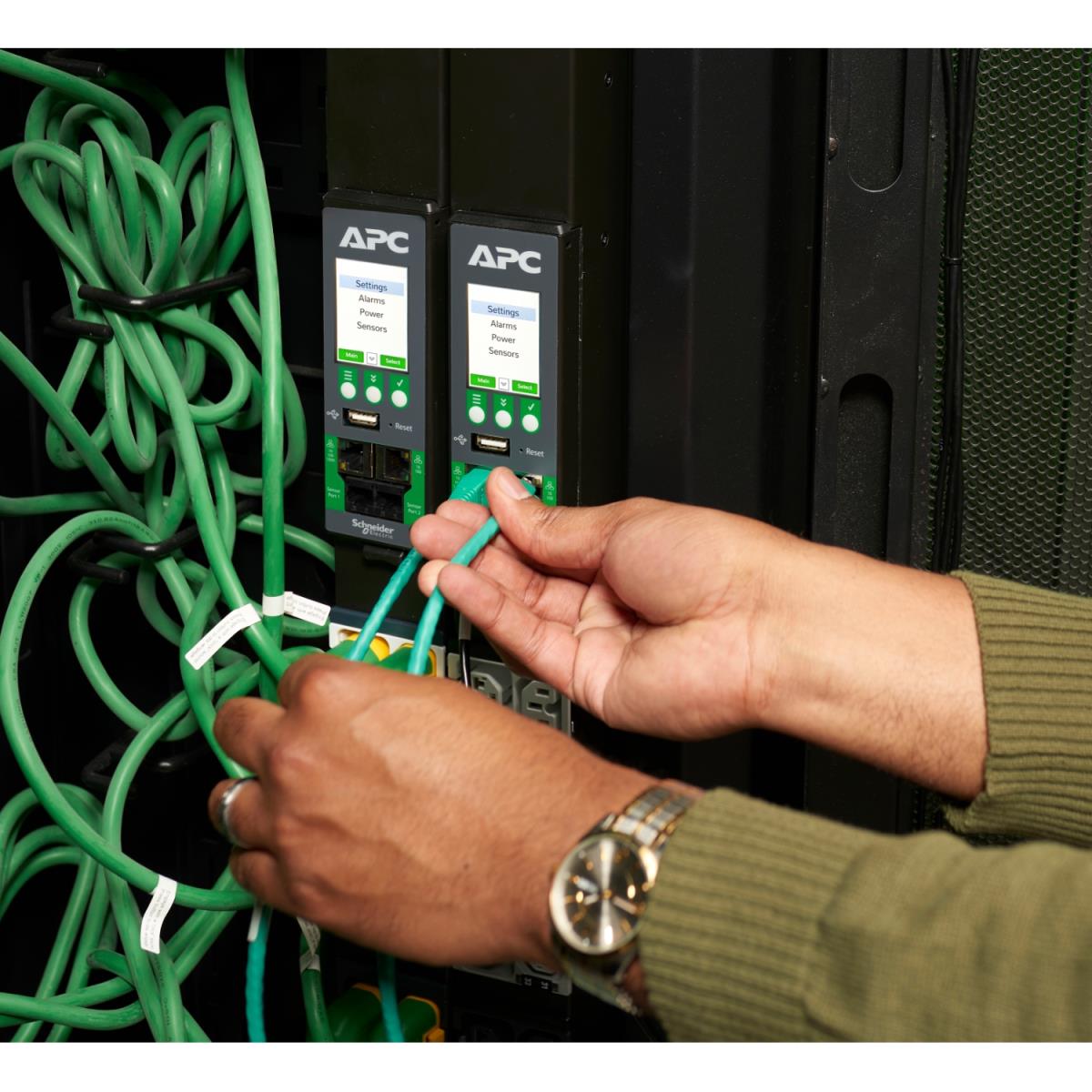

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. Outlet and PDU level power metering for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.
Specifications
| Design | |
|---|---|
| Type | Three-phase |
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 subpart B CE EN 62368-1 |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Features | |
| Cable length | 1.8 m |
| Certification | UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 subpart B CE EN 62368-1 |
| Ergonomics | |
| Cable length | 1.8 m |
| Power | |
| Nominal input voltage | 200 - 240, 346 - 415 V |
| Maximum current | 60 A |
| AC input frequency | 50 - 60 Hz |
| Number of phases | 3 |
| Certificates | |
| Certification | UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 subpart B CE EN 62368-1 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 23 - 140 °F |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Weight | 12.7 kg |
| Width | 5.6 mm |
| Depth | 7.5 mm |
| Height | 182.6 mm |
| Package width | 132 mm |
| Package depth | 262 mm |
| Package height | 1980 mm |
| Package weight | 15.7 kg |
| Packaging data | |
| Package width | 132 mm |
| Package depth | 262 mm |
| Package height | 1980 mm |
| Package weight | 15.7 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 24171.76 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 24171.76 |
