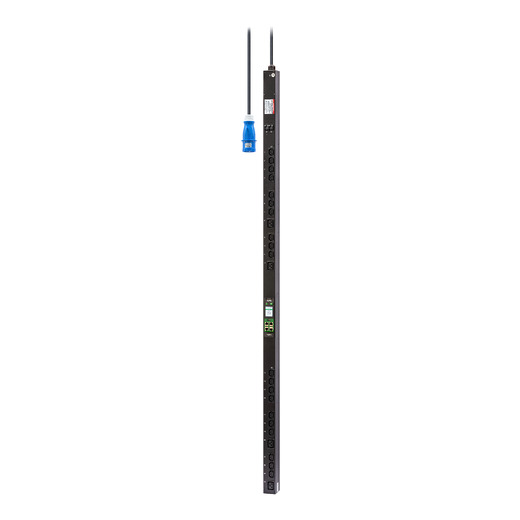

EASY PDU 2G METERED-BY-OUTLET
Introduction
Easy Metered-by-outlet rack PDU EPDU2132MBO provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2132MB is designed for single phase applications of upto 7.4kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| USB ports quantity | 1 |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| Ergonomics | |
| Cable length | 3 m |
| Display | LCD |
| Power | |
| Nominal input voltage | 230 V |
| Output voltage | 200-240 V |
| Maximum current | 32 A |
| Load capacity | 7360 VA |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 7.12 kg |
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Package weight | 8.29 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Package weight | 8.29 kg |
