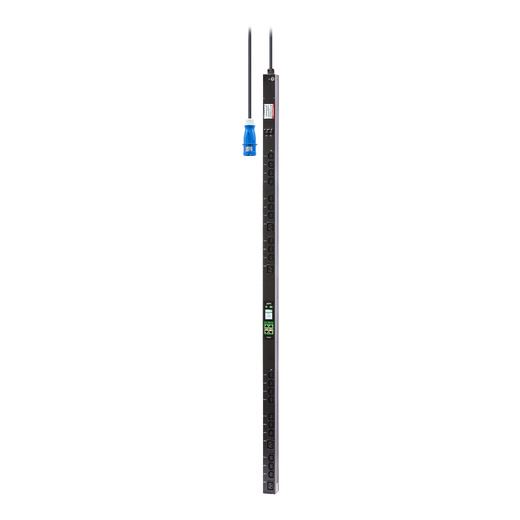

EASY PDU 2G METERED W SWITCHING
Introduction
Easy rack PDU Metered-by-Outlet with Switching EPDU2132SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2132SMBO is designed for single phase applications of upto 7.4kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered, Switched |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| AC outlets quantity | 20 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | IEC 60309 |
| Features | |
| Cable length | 3 m |
| Ergonomics | |
| Cable length | 3 m |
| Display | LCD |
| Power | |
| Nominal input voltage | 200 - 240 V |
| Output voltage | 200-240 V |
| Power protection features | Overload |
| Maximum current | 32 A |
| Load capacity | 7360 VA |
| AC input frequency | 50/60 Hz |
| Number of phases | 1 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 7.42 kg |
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Package weight | 8.59 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Package weight | 8.59 kg |
