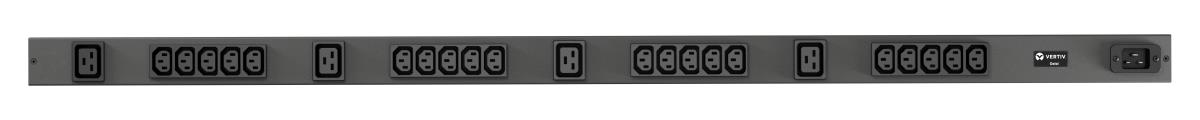

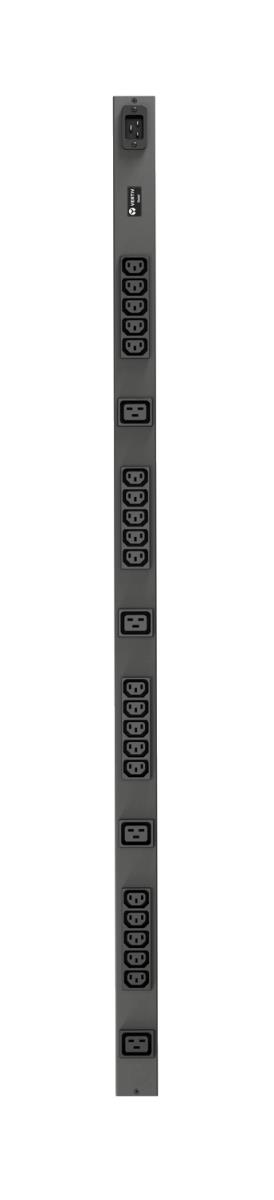

PowerIT Rack PDU Basic 0U input IEC 60320 C20 power inlet 230V 16A outlets (20)C13 (4)C19

Introduction

The Vertiv Geist Basic Rack PDU VP7552 is a 16A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and an IEC 60320 C20 power inlet. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

Specifications

Design
PDU types	Basic
Mounting	Vertical
Product colour	Black
Certification	CE, RoHS, CB
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Output connections	20 x C13 & 4 x C19
Features
LED indicators	No
Certification	CE, RoHS, CB
Ergonomics
LED indicators	No
Power
Nominal input voltage	230 V
Maximum current	16 A
Load capacity	3600 VA
AC input frequency	50 Hz
Certificates
Certification	CE, RoHS, CB
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Weight	3.1 kg
Width	1207 mm
Depth	51 mm
Height	51 mm
Package width	1270 mm
Package depth	127 mm
Package height	77 mm
Package weight	3.63 kg
Packaging data
Package width	1270 mm
Package depth	127 mm
Package height	77 mm
Package weight	3.63 kg
Technical details
Compliance certificates	RoHS
