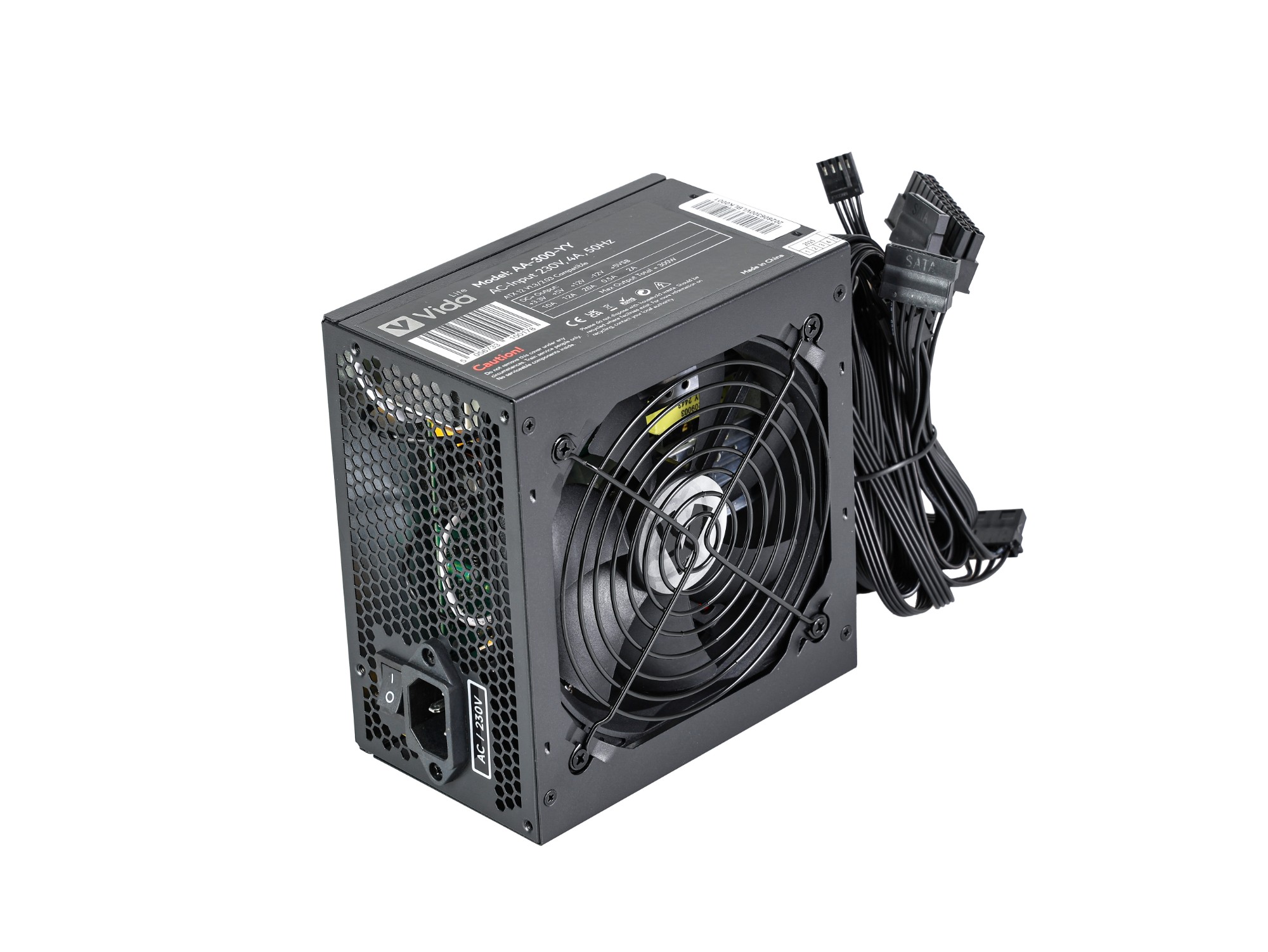

LITE 300W PSU PPFC 12CM FAN
Introduction
Introducing the Vida Lite 300W PSU (AA-300-YY) – where power meets price tag! This ATX dynamo delivers a dazzling 300 watts of electrifying performance, keeping your system fully charged and ready for action. With a fully wired design for a direct power connection and an ultra-quiet 120mm black fan, this powerhouse ensures a cool and quiet operation. Featuring connectors that spark convenience, including 20+4 pin and SATA, it's compatible with ATX 12V systems and guarantees a shockingly smooth performance. Don't miss out on the Lite side of power – it's your ticket to a jolt of energy without the shocking aftermath. Backed by a 1-year warranty, the Vida Lite 300W PSU is where power meets practicality in a positively electrifying package.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| ATX version | 1.3 |
| Country of origin | China |
| Removable filter | No |
| Design | |
| 80 PLUS certification | No |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Illumination | No |
| Fan location | Top |
| Country of origin | China |
| Cooling type | Active |
| Power | |
| Total power | 300 W |
| AC input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 10 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 12 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Number of +12V rail(s) | 1 |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 3 |
| PCI Express connector | No |
| Floppy disk drive connector | Yes |
| Certificates | |
| Compliance certificates | UKCA, CE, RoHS |
| 80 PLUS certification | No |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.17 kg |
| Packaging data | |
| Package depth | 92 mm |
| Package width | 195 mm |
| Package height | 160 mm |
| Package type | Box |
| Package weight | 1.4 kg |
| Technical details | |
| Compliance certificates | UKCA, CE, RoHS |
| Dangerous goods | No |
| Logistics data | |
| Country of origin | China |
