EU Product - Smr 500W 80+ X 12V 2.3
Introduction

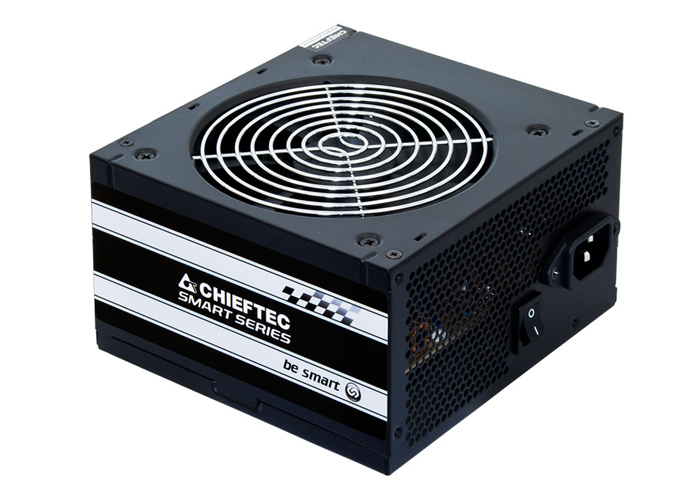

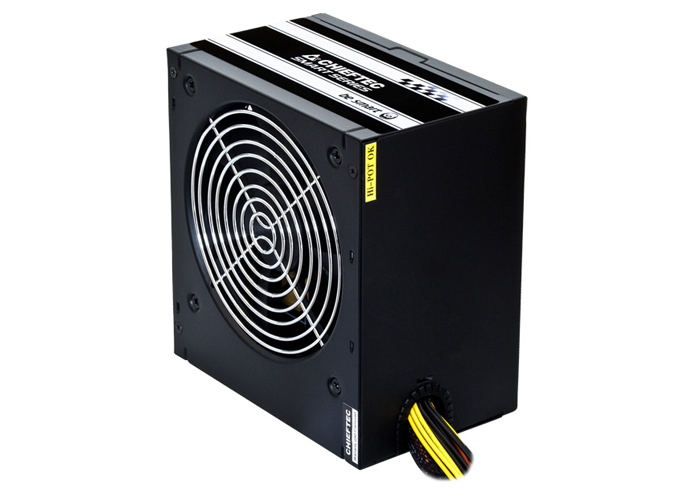

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | No |
| Product colour | Black |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Power | |
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 408 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 12.5 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Max output current (+5V) | 19 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Efficiency | 80% |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| Purpose | PC |
| ATX version | 2.3 |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Certificates | |
| 80 PLUS certification | No |
