REPLACEMENT OR SPARE 12 VOLT
Introduction

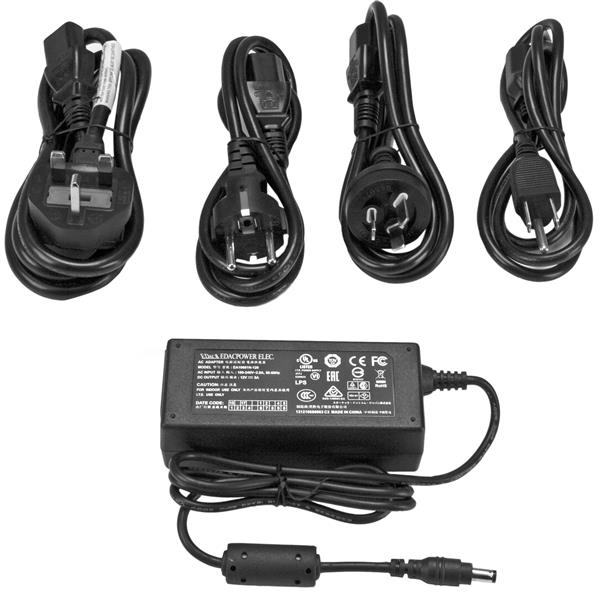

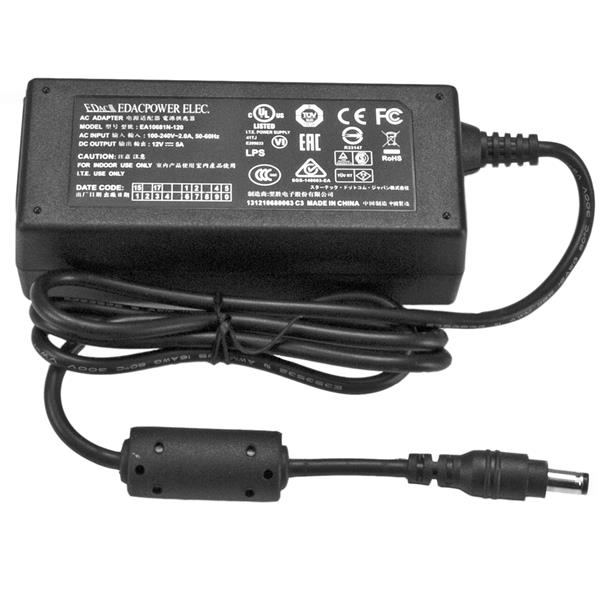

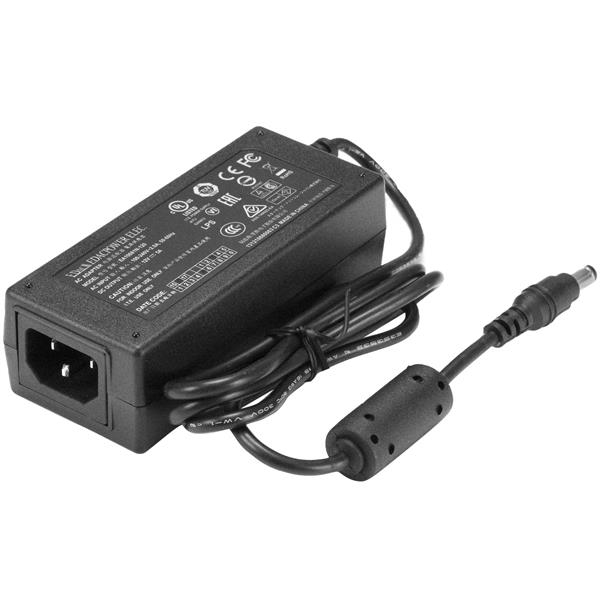

Replace your lost or failed power adapter
This replacement power adapter can provide a power source for any electronic device that has an M type barrel jack and requires 12 volts and up to 5 amps of power.
Replace your failed or lost power adapter
The adapter is a perfect replacement for the lost or damaged power adapter you've used to power your existing electronics.
Keep a spare power adapter on hand
When downtime isn't an option, keeping spare power adapters on hand ensures that you won't be left waiting for a replacement to arrive or have to replace your devices just for the sake of a compatible power source.
This power adapter is a direct replacement for the power adapters included with the following StarTech.com products:
Conference Table Box for AV Connectivity
10 Gigabit Ethernet Copper-to-Fiber Media Converter
Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m
Gigabit Ethernet Copper-to-Fiber Media Converter SM LC 10 km
Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC 20 km
Multi-Input to HDMI Automatic Switch and Converter 4K
1U 17 in. HD 1080p Rackmount LCD Console with Front USB Hub
1U 19in Rackmount LCD Console with Integrated 8 Port KVM Switch
USB 3.0 SATA Hard Drive Duplicator & Eraser Dock
HDMI over CAT5 HDBaseT Extender
4K HDMI over CAT5 HDBaseT Extender
HDMI Over CAT5/CAT6 Extender with Power Over Cable
HDMI over CAT5 HDBaseT Extender RS232 IR Ultra HD 4K 330 ft
4-Port Industrial USB 3.0 Hub
4-Port Charging Station for USB Devices
7-Port USB 3.0 Hub - Desktop or Wall-Mountable Metal Enclosure
7-Port USB 3.0 Hub - Desktop
2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub
2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
4 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub
4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
The SVA12M5NA is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Input current | 2 A |
| Power plug type | Type M |
| Input voltage | 110-240 V |
| Output voltage | 12 V |
| Output current | 5 A |
| Power supply type | Indoor |
| Purpose | Universal |
| Certification | CE, FCC, UL |
| Power | |
| Input current | 2 A |
| Input voltage | 110-240 V |
| Output voltage | 12 V |
| Output current | 5 A |
| Performance | |
| Power plug type | Type M |
| Power supply type | Indoor |
| Purpose | Universal |
| Certification | CE, FCC, UL |
| Design | |
| Cable length | 1.02 m |
| Certificates | |
| Certification | CE, FCC, UL |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 905.8 g |
| Width | 48 mm |
| Depth | 27 mm |
| Height | 35 mm |
| Cable length | 1.02 m |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 190 mm |
| Package height | 99 mm |
| Package weight | 924.19 g |
| Cables included | AC |
| Packaging content | |

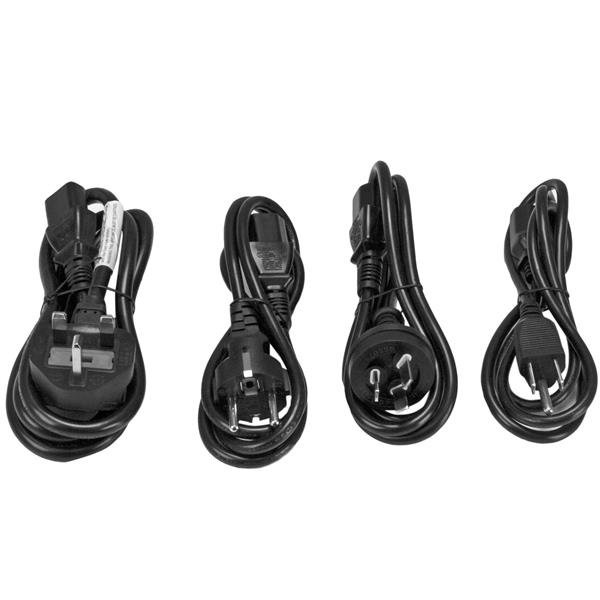

| Included power plug types | AU, EU, JP, NA, UK |
| Cables included | AC |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 404 mm |
| Master (outer) case length | 312 mm |
| Master (outer) case height | 330 mm |
| Harmonized System (HS) code | 85044095 |
