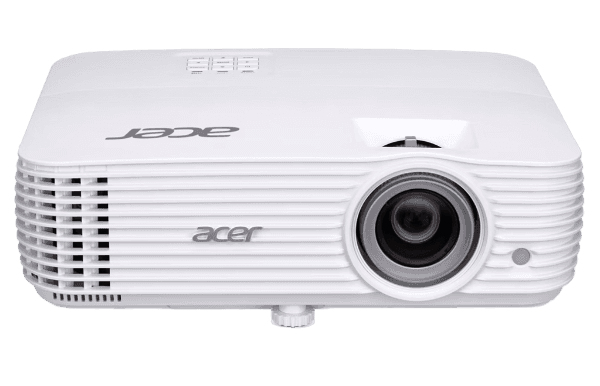

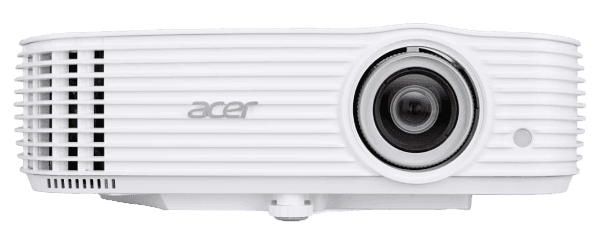

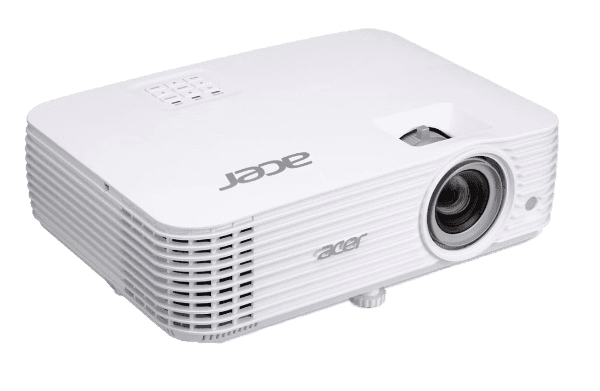

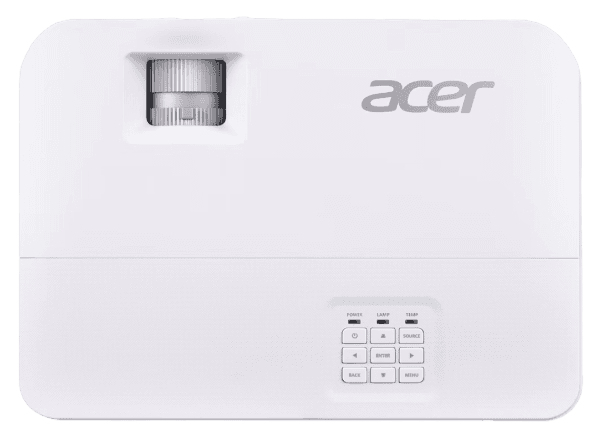

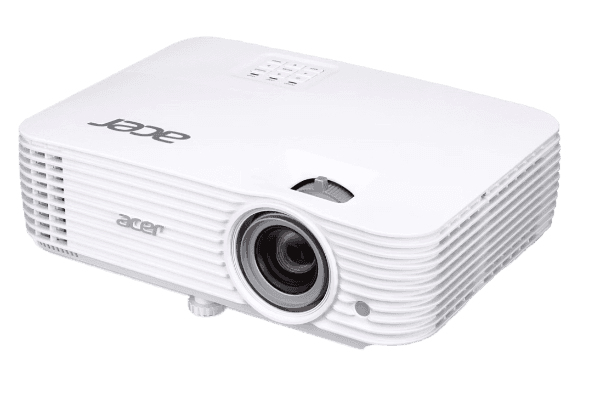

EU Product - Projektor H6830Bd - Projector - DLP/DMD
Introduction
The Home Entertainment Projector Family
The projector that turns your living room into a movie theater.
A True Cinematic Experience
Feast on popcorn while your eyes feast on an up to 4K UHD display.
Faithful Reproduction of Color
Color preservation is made possible with exclusive ColorBoost 3D, Rec. 709, and more.
Football Mode
Big match coming up? Football Mode is optimized to make the next 90 minutes the most immersive and life-like as possible.
Lightning-fast Refresh Rate
Stay in-the-action with up to 1080p 240Hz, delivering a hyper-smooth display every second.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colours |
| Projector native resolution | UHD 4K (3840x2160) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Projection distance | 1 - 9.8 m |
| Contrast ratio (typical) | 10000:1 |
| Vertical scan range | 24 - 240 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Keystone correction, vertical | -40 - 40° |
| Keystone correction, horizontal | -40 - 40° |
| Projection technology | DLP |
| Projector brightness | 4000 ANSI lumens |
| Smart projector | Yes |
| Lamps | |
| Light source type | LED |
| Service life of light source | 10000 h |
| Service life of light source (economic mode) | 5000 h |
| Light source | |
| Light source type | LED |
| Service life of light source | 10000 h |
| Service life of light source (economic mode) | 5000 h |
| Lens system | |
| Focus | Manual |
| Offset | 120% |
| Scanning frequency | |
| Vertical scan range | 24 - 240 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Video | |
| Analog signal format system | NTSC, PAL |
| Full HD | Yes |
| 3D | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| Serial interface type | RJ-45 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 0 |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level (economic mode) | 30 dB |
| Technical details | |
| Product colour | White |
| Performance | |
| Market positioning | Home cinema |
| Vertical scan range | 24 - 240 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Noise level (economic mode) | 30 dB |
| Features | |
| Interactive | Yes |
| Noise level (economic mode) | 30 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Design | |
| Market positioning | Home cinema |
| Product type | Standard throw projector |
| Product colour | White |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 120/230 V |
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| Weight & dimensions | |
| Weight | 2.92 kg |
| Width | 322 mm |
| Depth | 225 mm |
| Height | 93.8 mm |
| Packaging content | |
| Remote control included | Yes |
