EU Product - Pl6520 - Full HD DLP Projector - 1920x1080 - Projector - DLP/DMD
Introduction
Acer Large Venue PL6520. Projector brightness: 6000 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 17.63 - 27.90 mm, Aperture range (F-F): 2.3 - 3. Serial interface type: RS-232, HDMI version: 1.4b/2.0. Noise level: 33 dB, Noise level (economic mode): 27 dB
Specifications
| Projector | |
|---|---|
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Contrast ratio (typical) | 50000:1 |
| Zoom ratio | 1.7:1 |
| Vertical synchronization (min) | 24 kHz |
| Vertical synchronization (max) | 120 kHz |
| Keystone correction, vertical | +/- 30° |
| Keystone correction, horizontal | +/- 30° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 100 kHz |
| Projection technology | DLP |
| Projector brightness | 6000 ANSI lumens |
| Zoom type | Manual |
| Lamps | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Zoom ratio | 1.7:1 |
| Focus | Manual |
| Focal length range | 17.63 - 27.90 mm |
| Aperture range (F-F) | 2.3 - 3 |
| Throw ratio | 1.2 - 2.04 |
| Zoom type | Manual |
| Video | |
| Full HD | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |

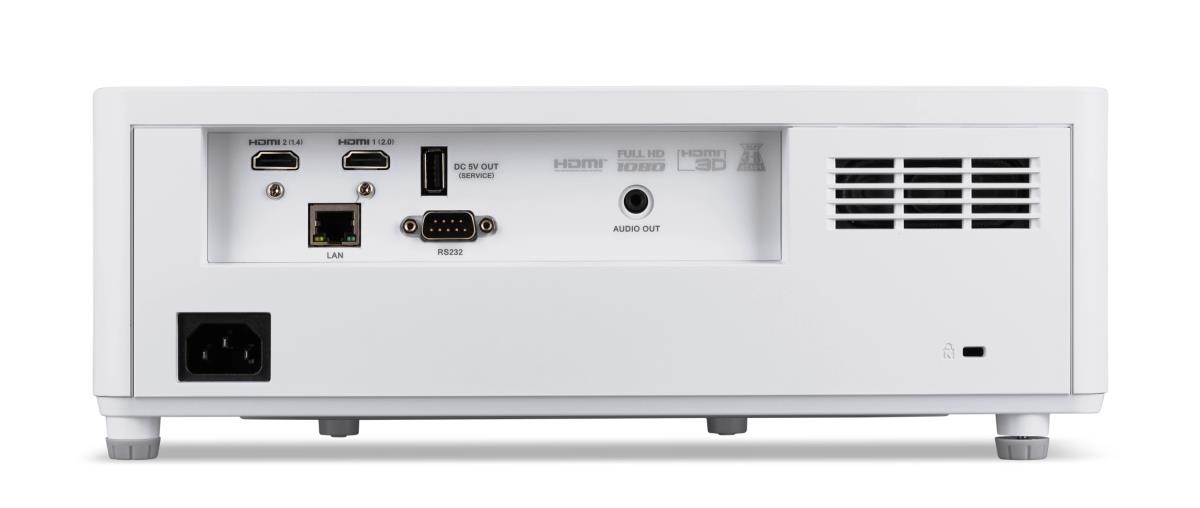

| Ports & interfaces | |
| HDMI version | 1.4b/2.0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video in | 0 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| Component video (YPbPr/YCbCr) in | 0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 33 dB |
| Noise level (economic mode) | 27 dB |
| Technical details | |
| Product colour | White |
| Performance | |
| Noise level | 33 dB |
| Noise level (economic mode) | 27 dB |
| Features | |
| Noise level | 33 dB |
| Noise level (economic mode) | 27 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |
| Design | |
| Product type | Large venue projector |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power consumption (typical) | 245 W |
| Power consumption (standby) | 0.5 W |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Weight | 4.5 kg |
| Width | 374 mm |
| Depth | 265 mm |
| Height | 108 mm |
