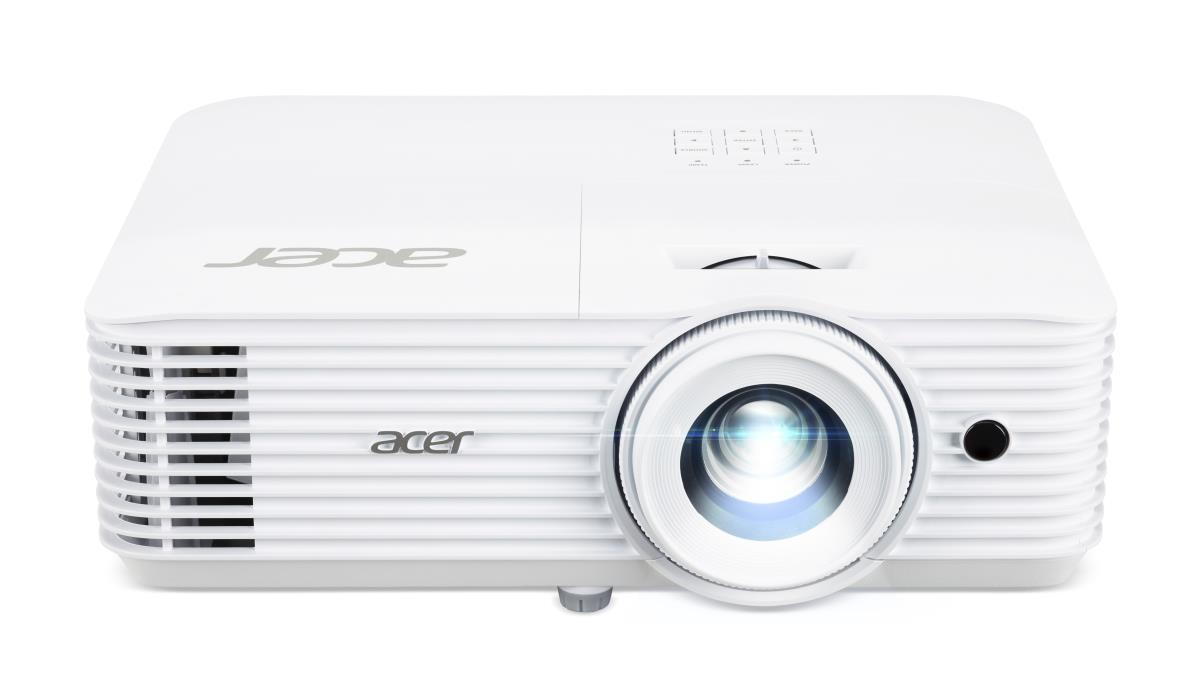

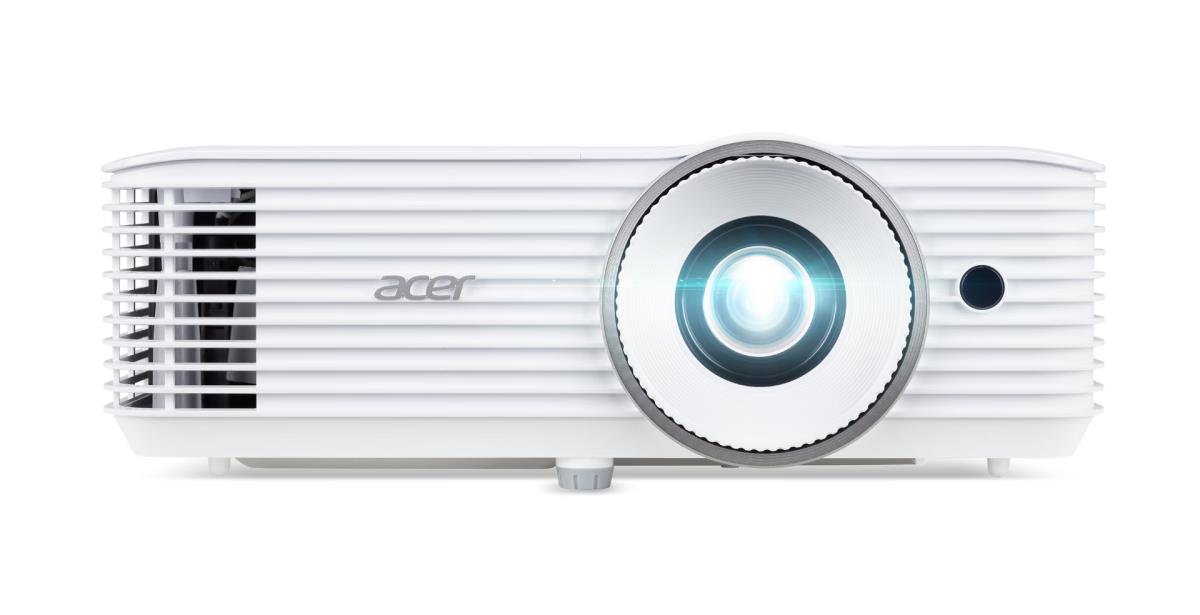

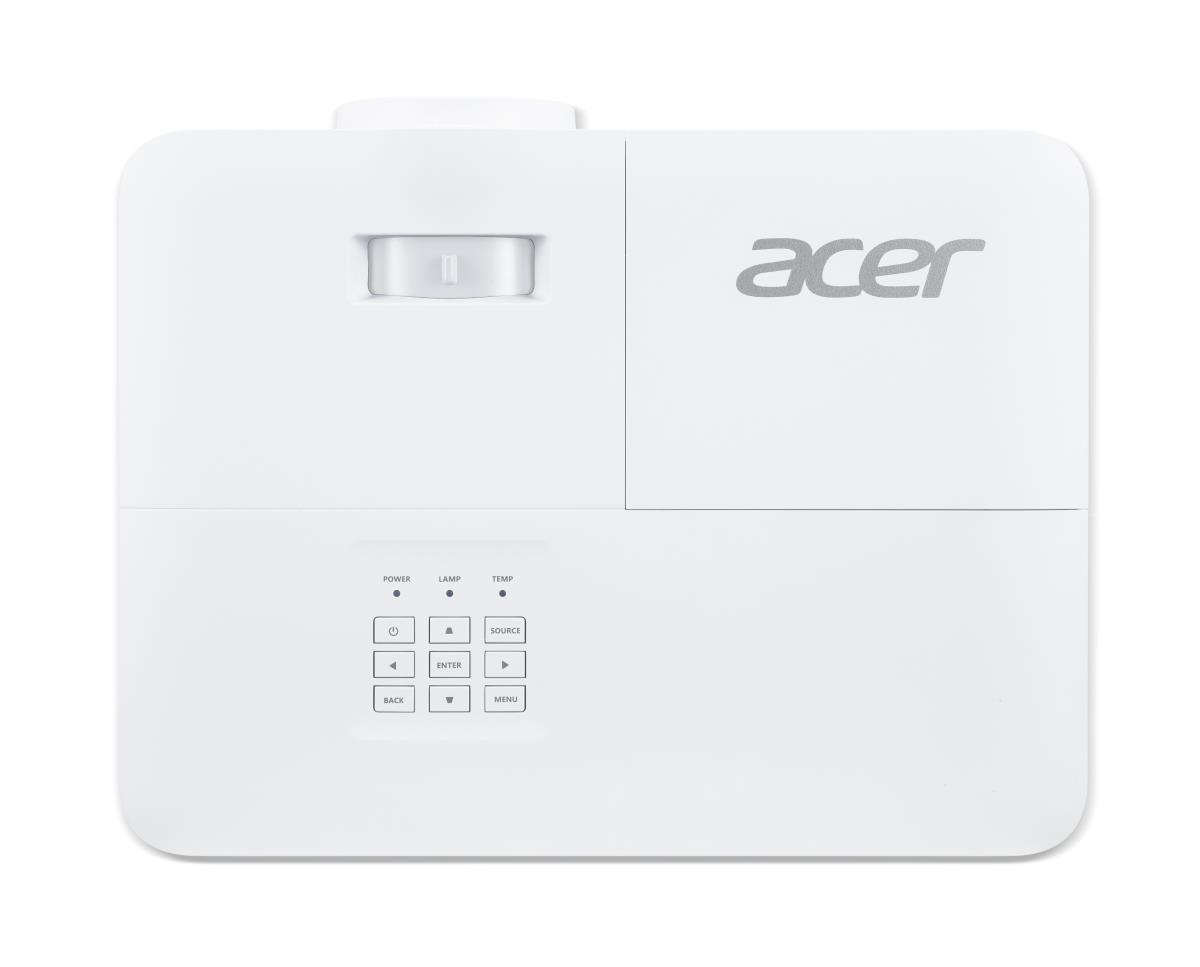

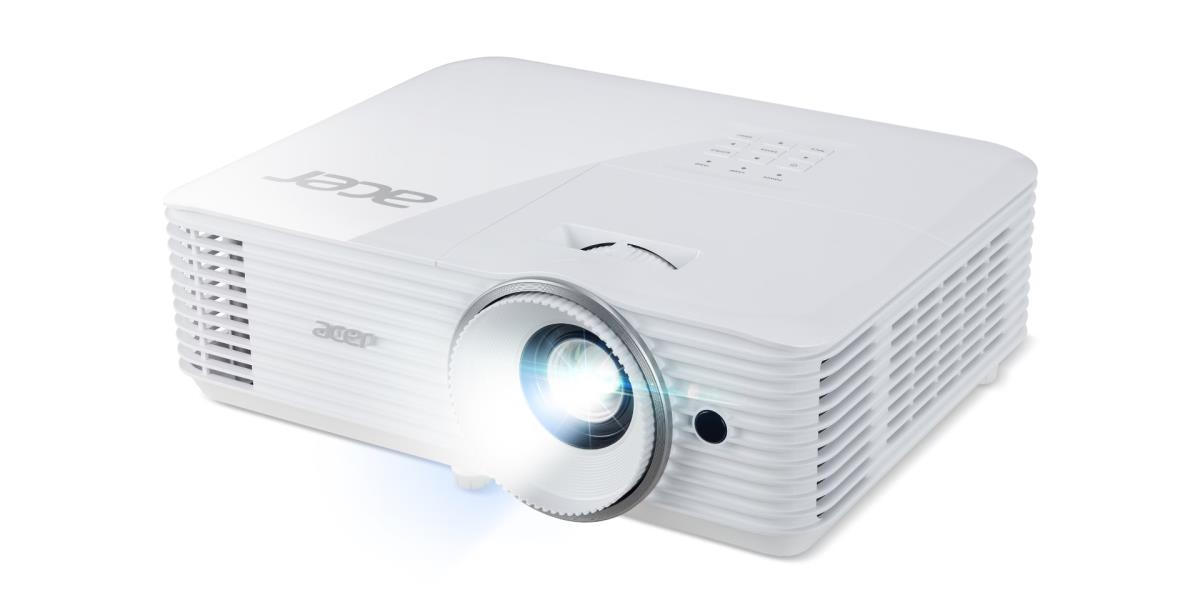

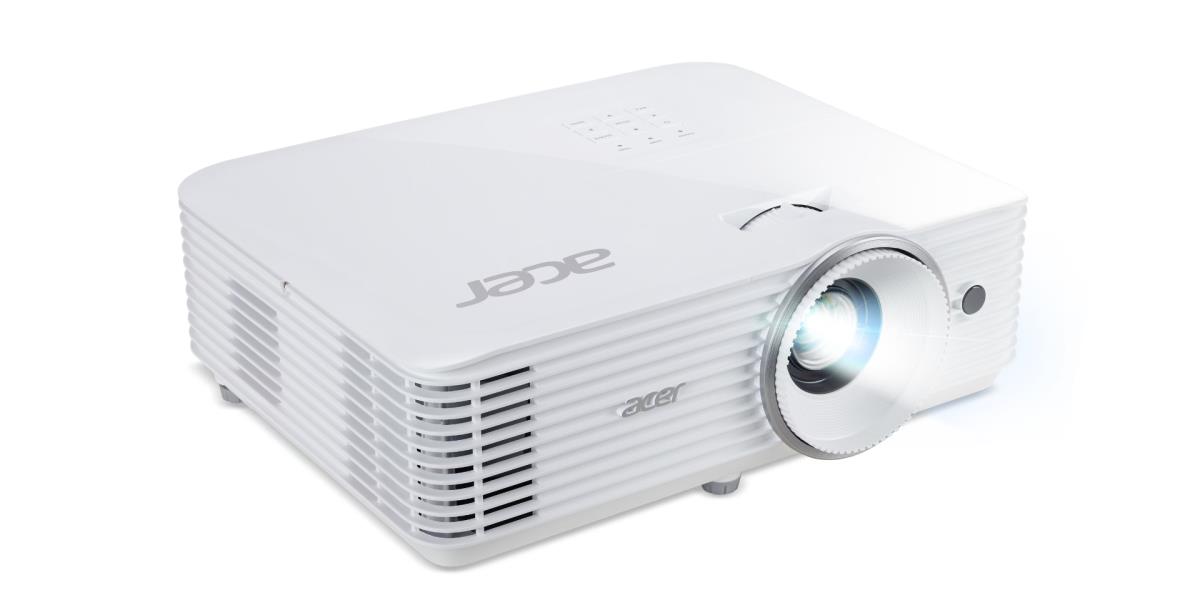

EU Product - H6546 - Full HD Dlp Projector - 1920x1080 - Projector - DLP/DMD
Introduction
Acer Home H6546. Projector brightness: 5200 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 21.8 - 24 mm, Aperture range (F-F): 2.5 - 2.67. Serial interface type: RS-232, HDMI version: 1.4b. Noise level: 27 dB
Specifications
| Projector | |
|---|---|
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Contrast ratio (typical) | 10000:1 |
| Zoom ratio | 1.1:1 |
| Keystone correction, vertical | +/-40° |
| Projection technology | DLP |
| Projector brightness | 5200 ANSI lumens |
| Zoom type | Manual |
| Lamps | |
| Lamp type | OSRAM |
| Lamp power | 240 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Light source | |
| Lamp type | OSRAM |
| Lamp power | 240 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lens system | |
| Zoom ratio | 1.1:1 |
| Focus | Manual |
| Focal length range | 21.8 - 24 mm |
| Aperture range (F-F) | 2.5 - 2.67 |
| Throw ratio | 1.48 - 1.62 (60"@2m) |
| Zoom type | Manual |
| Video | |
| Full HD | Yes |
| 3D | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |

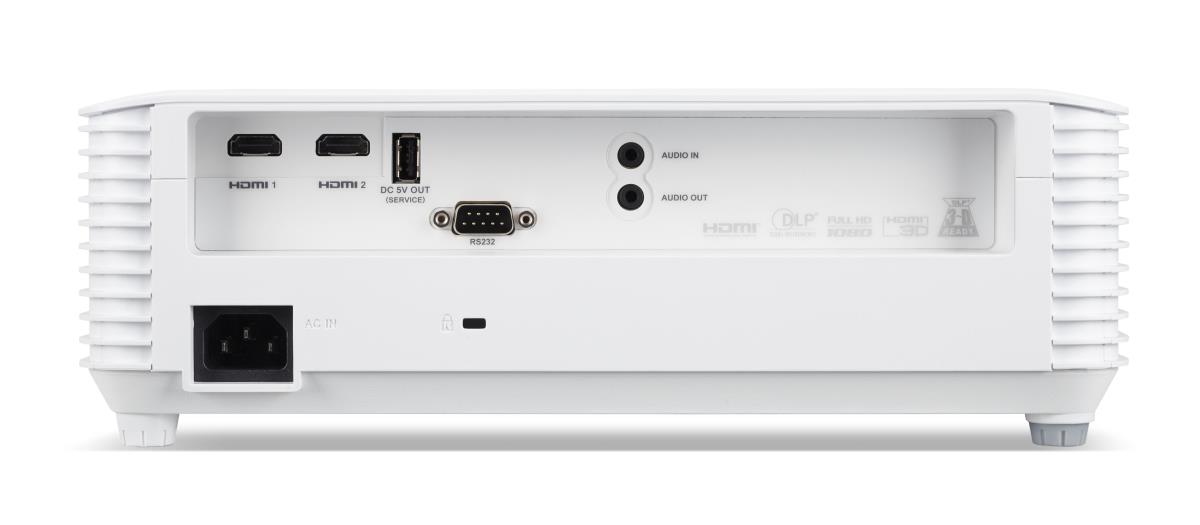

| Ports & interfaces | |
| DC-in jack | Yes |
| HDMI version | 1.4b |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Composite video in | 0 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| Component video (YPbPr/YCbCr) in | 0 |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 27 dB |
| Technical details | |
| DC-in jack | Yes |
| Product colour | White |
| Lamp power | 240 W |
| Performance | |
| Market positioning | Home cinema |
| Noise level | 27 dB |
| Features | |
| Noise level | 27 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
| Design | |
| Market positioning | Home cinema |
| Product colour | White |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power consumption (typical) | 240 W |
| Power consumption (standby) | 0.5 W |
| Weight & dimensions | |
| Weight | 2.8 kg |
| Width | 313 mm |
| Depth | 236 mm |
| Height | 113.7 mm |
