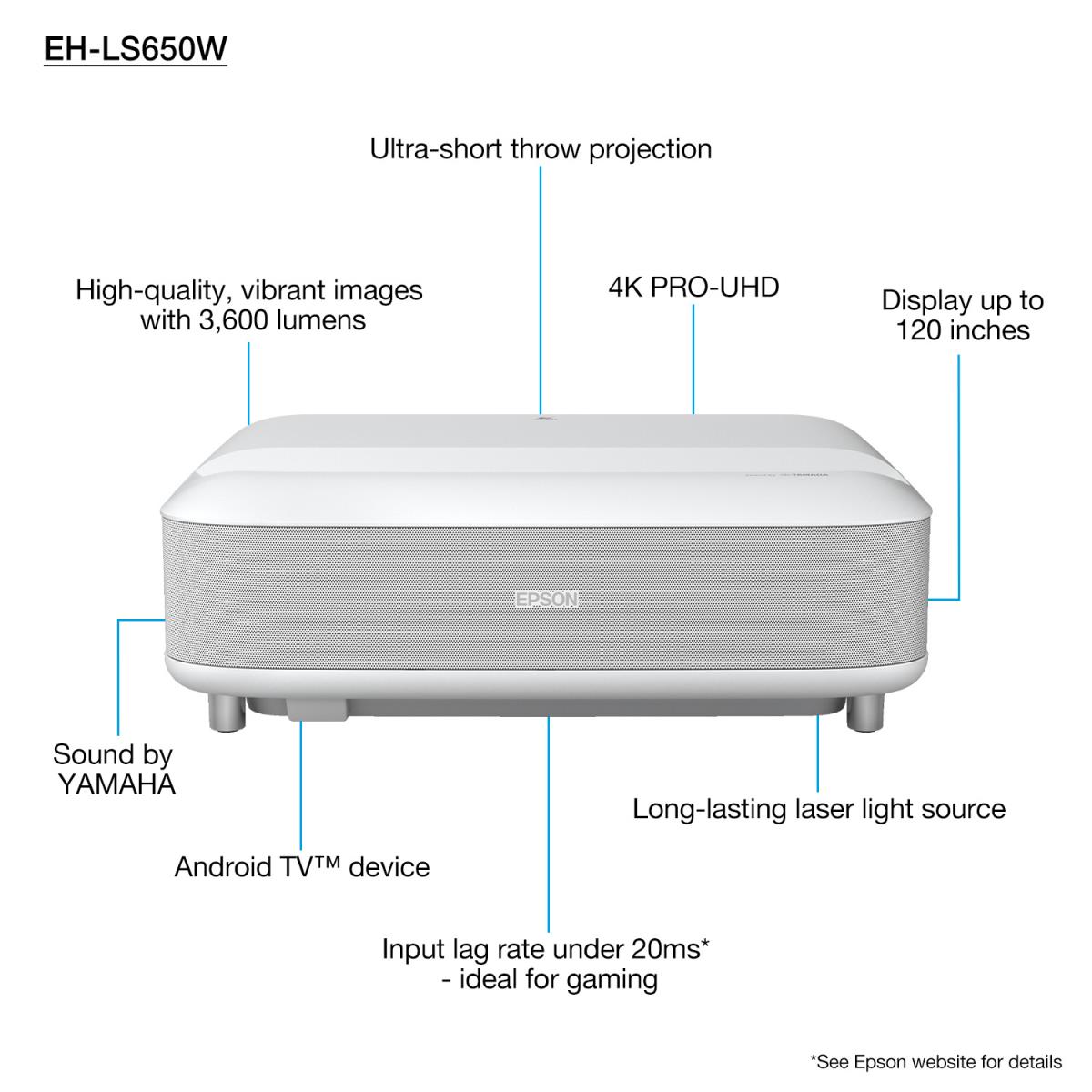

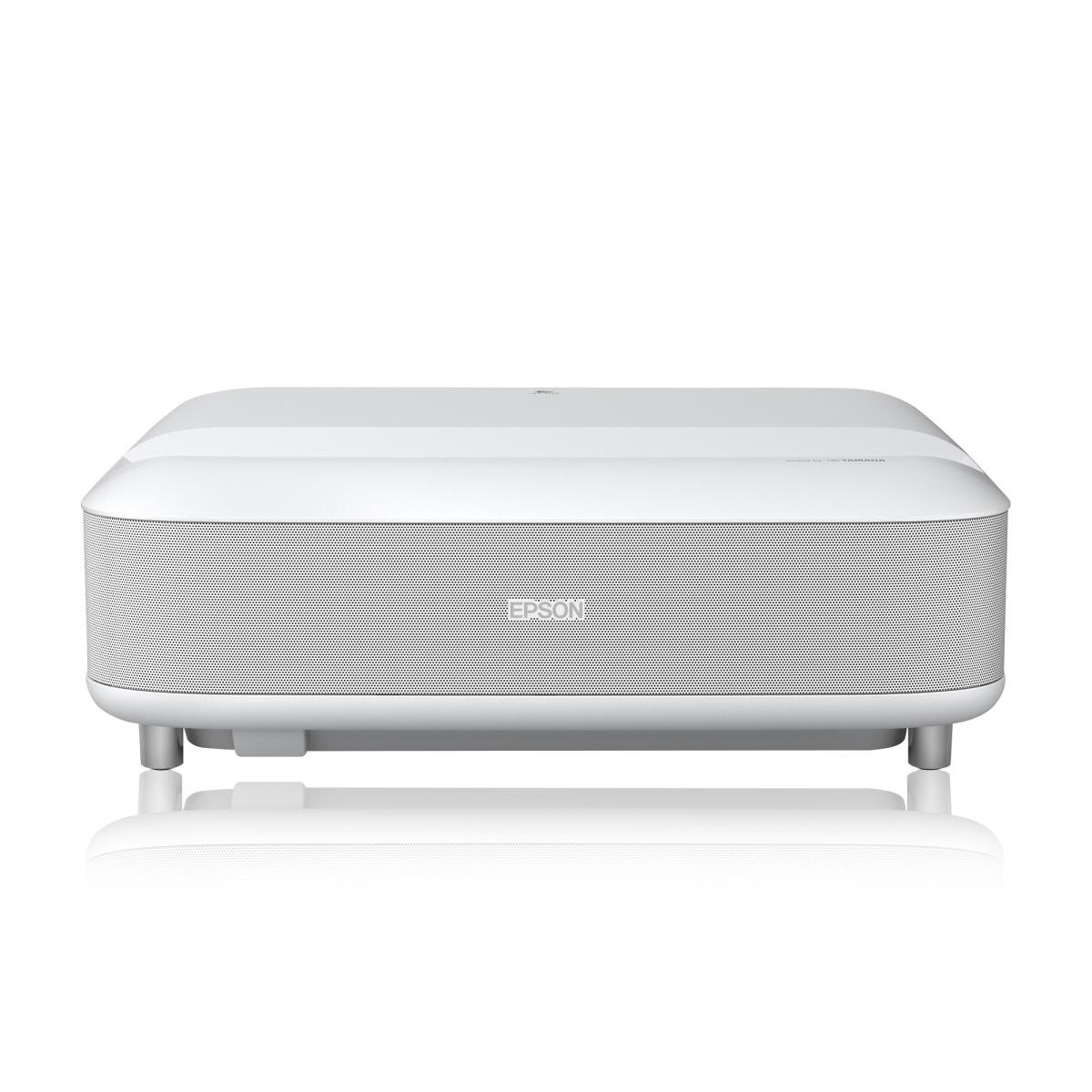

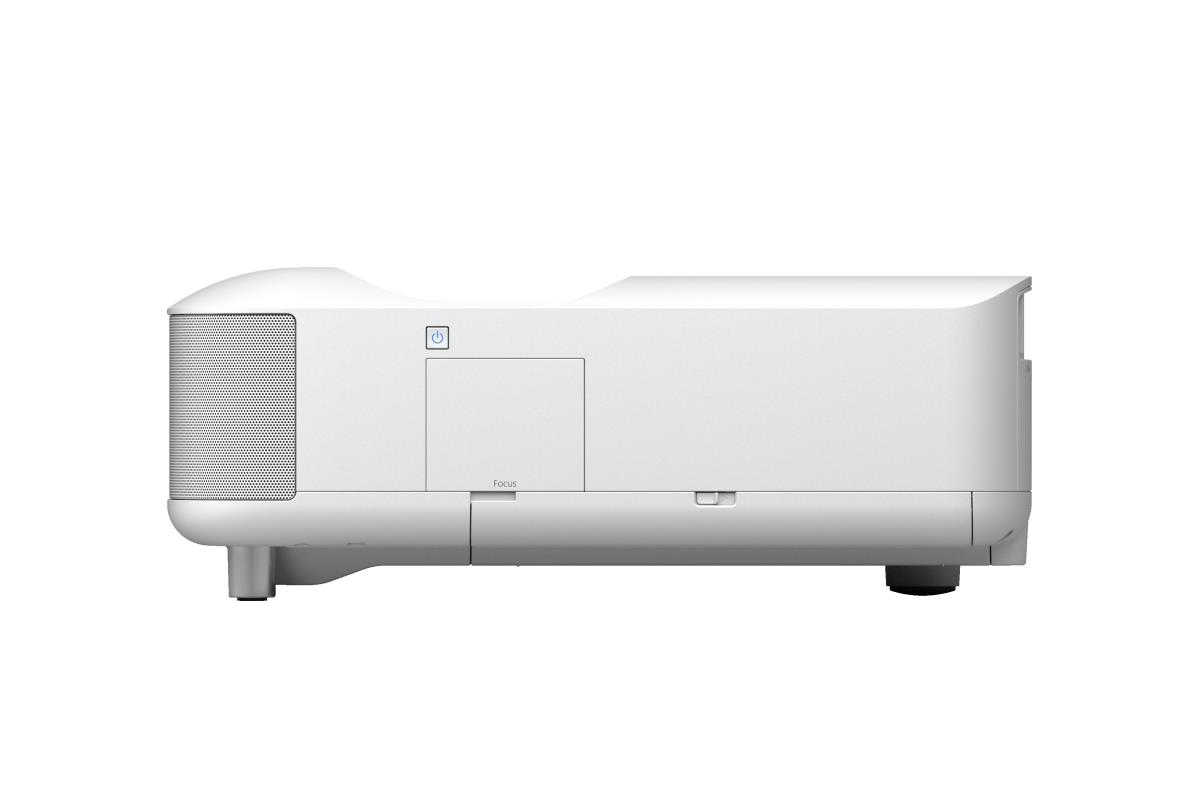

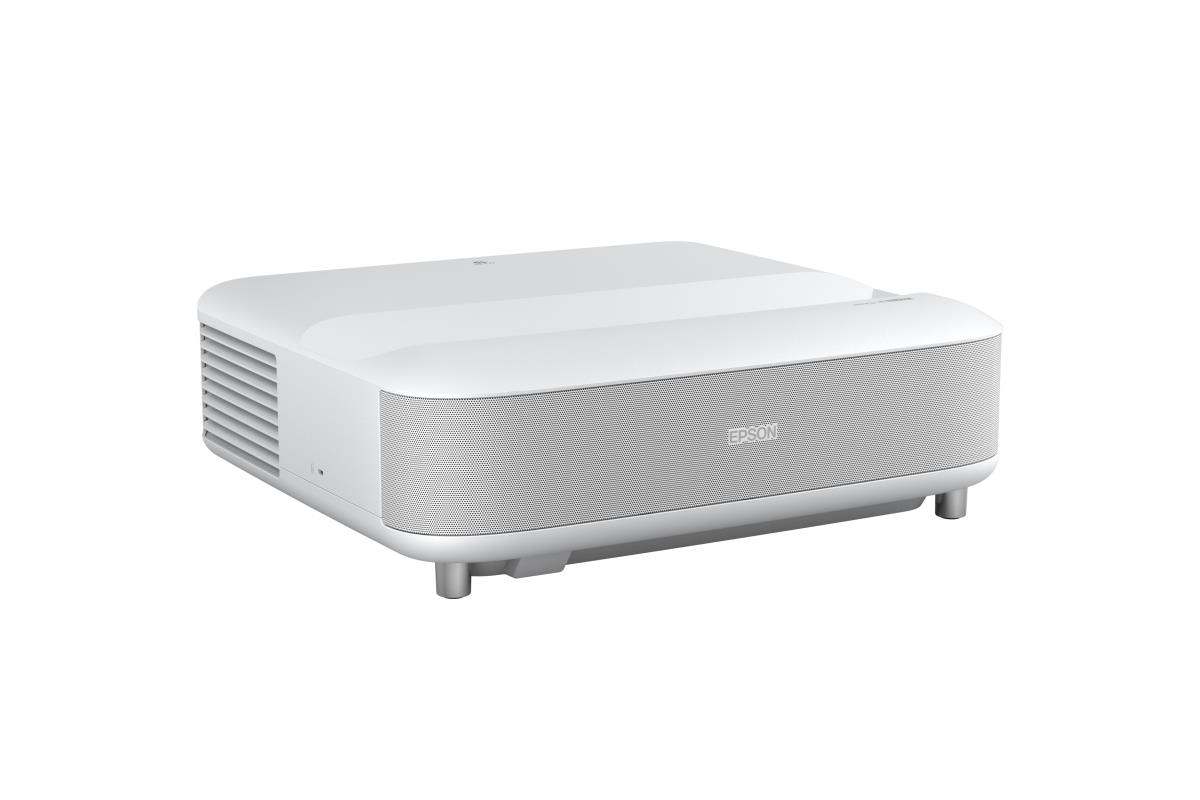

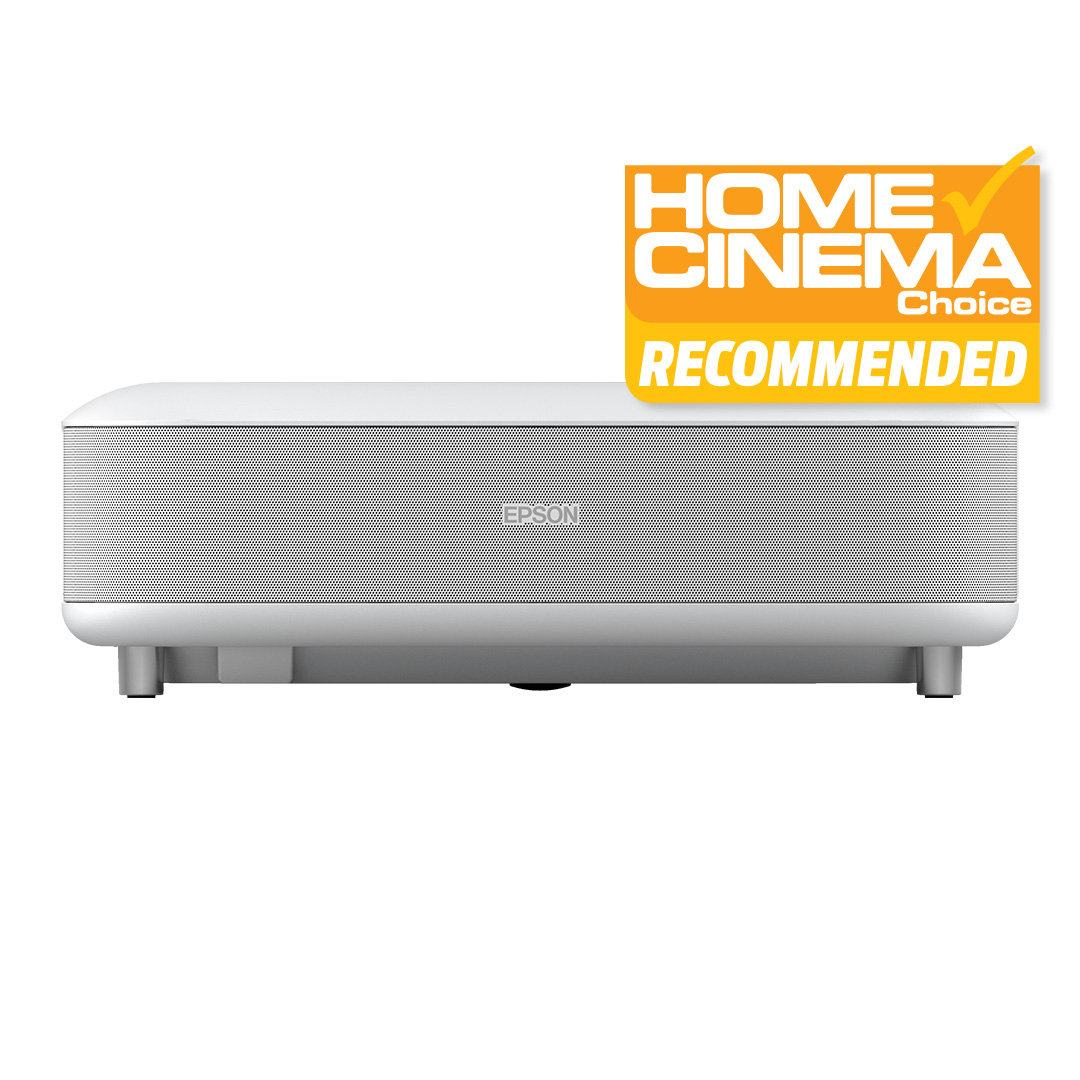

EH-LS650W - 3LCD projector - 3600 lumens (white) - 3600 lumens (colour) - 16:9 - 4K - ultra short-throw lens - 802.11ac wireless - white - Android TV
Introduction
With an impressive screen size of up 120 inches diagonally, even when placed close to your wall, this ultra-short-throw projector comes with built-in Android TV™ and sound by YAMAHA.

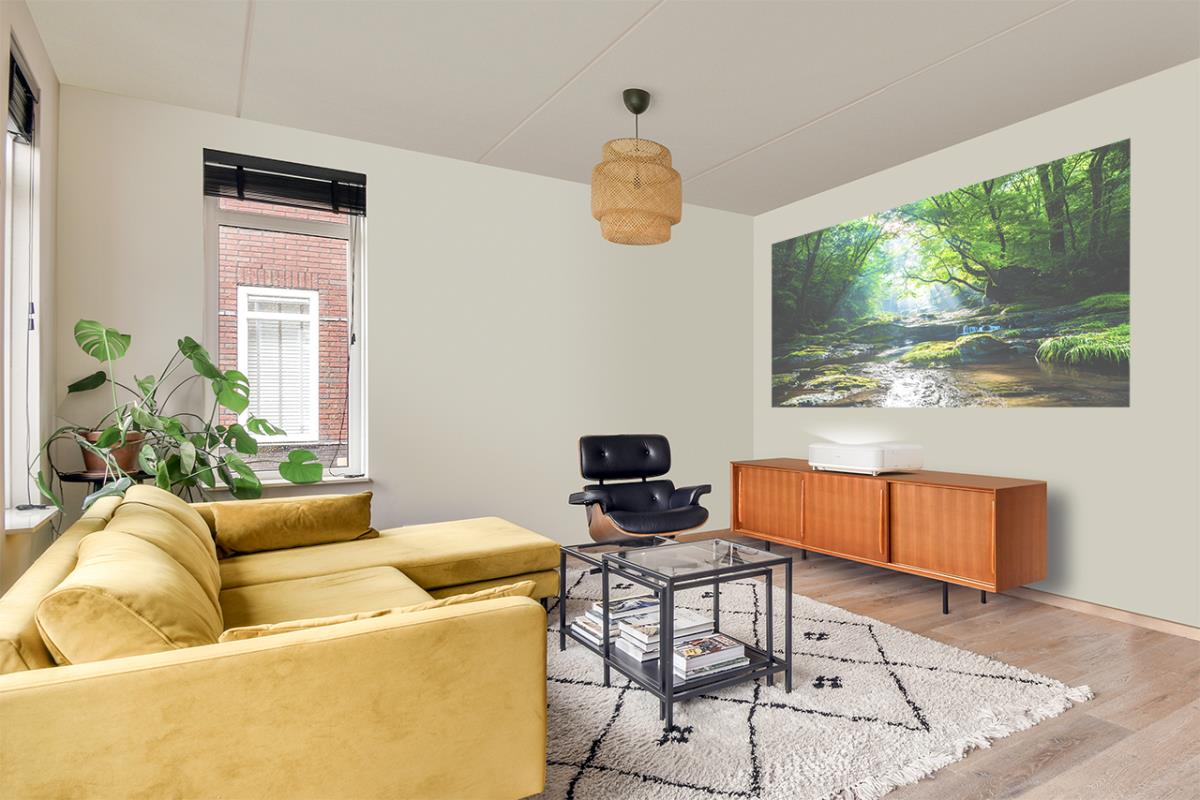

Upgrade your home entertainment experience with Epson's 4K PRO-UHD*, ultra-short-throw laser projection TV. Its stylish design will fit perfectly into your home, and you can immerse yourself in your favourite shows with Android TV and sound by YAMAHA features. You can enjoy a 61 inch image from just 3.2cm away from the wall, with the option to adjust the distance to achieve up to 120 inch, for the ultimate home cinema experience.
The big screen experience
Feel immersed in everything you watch or play with this stylish and affordable 4K PRO-UHD* projector which can produce up to a 120 inch image placed close to the wall. Bringing the screen to life, 3LCD technology achieves a display that is up to three times brighter than competitor products*. Ideal for gaming,with under 20ms* lag time.
Smart home entertainment
Android TV offers thousands of movies, shows and games from Google Play, Amazon Prime Video, YouTube and other favourite apps*. Built in speakers with sound by YAMAHA produce a stunning dynamic audio and 3D surround sound, which can be used with and without visual display. Simply select the visual display to mute, or you can connect via Bluetooth to use as a standalone speaker to play your favourite music.
Long-lasting solution
Looking for a long-term, hassle-free and affordable solution to replace your TV? With this model's long-lasting laser light source, you'll be able to enjoy entertainment for up to 10 years*.
Superior picture quality
With a high brightness of 3,600 lumens and contrast ratio of 2,500,000:1, this 4K PRO-UHD*, HDR10 projector delivers lifelike content and defined shadow detail. Epson's 3LCD technology means its projectors have up to three times brighter colours, than comparable 1-chip DLP projectors*. Our Epson Setting Assistant app, makes life even easier to set up your new projector, as you can align the image automatically, with just a click of a button.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colours |
| Projector native resolution | 4K (4096x2400) |
| Projection distance (wide) | 0 - 0.4 m |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1524 - 3048 mm (60 - 120") |
| Contrast ratio (typical) | 2500000:1 |
| Contrast ratio (dynamic) | 2500000:1 |
| Zoom ratio | 1.25:1 |
| Zoom capability | Yes |
| Vertical scan range | 192 - 240 Hz |
| Projector brightness (economic mode) | 1800 ANSI lumens |
| Matrix size | 1.57 cm (0.62") |
| Projection technology | 3LCD |
| Projector brightness | 3600 ANSI lumens |
| Heat dissipation | 897.6 BTU/h |
| Smart projector | Yes |
| Lamps | |
| Light source type | Laser |
| Light source | |
| Light source type | Laser |
| Lens system | |
| Fixed focal length | 3.7 mm |
| Zoom ratio | 1.25:1 |
| Zoom capability | Yes |
| Focal length range | 3.7 mm |
| Throw ratio | 0.25 - 0.62:1 |
| F-number (relative aperture) | 1.6 |
| Scanning frequency | |
| Vertical scan range | 192 - 240 Hz |
| Video | |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Colour modes (2D) | Cinema, Dynamic, Natural |
| Analog signal format system | Not supported |
| Full HD | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| Composite video in | 0 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 0 |
| AC (power) in | Yes |
| Audio Return Channel (ARC) | Yes |
| Service port type | USB Type-B |
| Network | |
| Smart TV | Yes |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 36 dB |
| Noise level (economic mode) | 23 dB |
| Technical details | |
| Colour modes (2D) | Cinema, Dynamic, Natural |
| Product colour | White |
| HDCP | Yes |
| Security features | Kensington lock |
| Air filter | Yes |
| Option type | Air filter |
| Heat dissipation | 897.6 BTU/h |
| Control panel | 0.62 inch with C2 Fine |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document |
| Products per pallet | 16 pc(s) |
| Quantity per pack | 1 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.03 m |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet (UK) | 16 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.03 m |
| Other features | 4K enhancement, Android TV, Arc Correction, Chromecast, Fit to Screen, Frame interpolation, Google Search, Instant on/off, Long light source life, Point correction, Quick Corner, Sound by Yamaha |
| Performance | |
| Market positioning | Home cinema |
| HDCP | Yes |
| Vertical scan range | 192 - 240 Hz |
| Noise level | 36 dB |
| Noise level (economic mode) | 23 dB |
| Air filter | Yes |
| Heat dissipation | 897.6 BTU/h |
| Features | |
| Interactive | No |
| HDCP | Yes |
| Noise level | 36 dB |
| Noise level (economic mode) | 23 dB |
| Air filter | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported | Yes |
| Country of origin | Philippines |
| Compatible operating systems | Android |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Design | |
| Market positioning | Home cinema |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Placement | Floor, TV cabinet |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 234 W |
| Power consumption (economy mode) | 178 W |
| Packaging data | |
| Package width | 540 mm |
| Package depth | 560 mm |
| Package height | 235 mm |
| Package weight | 10.8 kg |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
| Package width | 540 mm |
| Package depth | 560 mm |
| Package height | 235 mm |

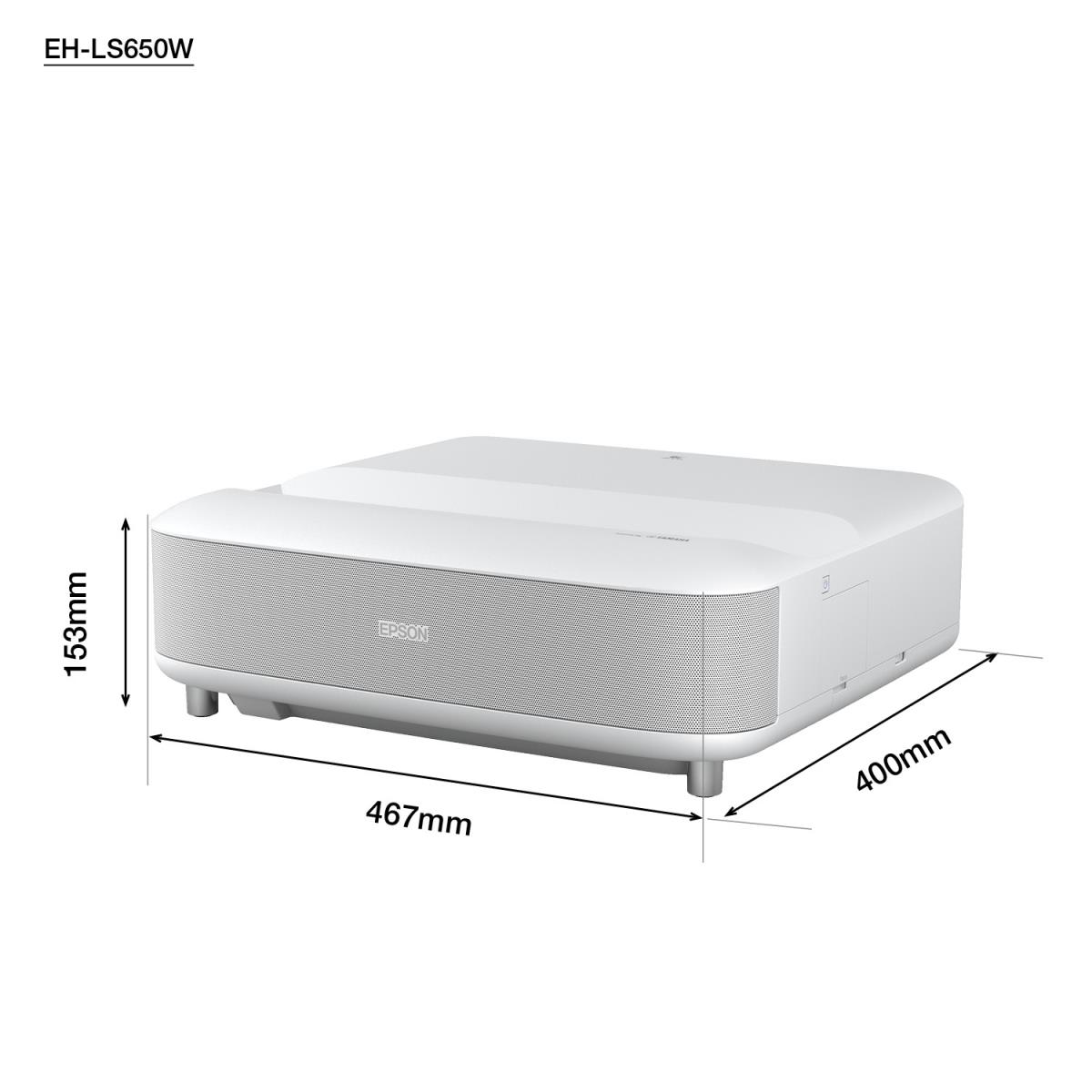

| Weight | 7.4 kg |
| Width | 467 mm |
| Depth | 400 mm |
| Height | 153 mm |
| Package weight | 10.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC |
| Batteries included | Yes |
| Logistics data | |
| Products per pallet | 16 pc(s) |
| Quantity per pack | 1 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.03 m |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet (UK) | 16 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.03 m |
| Other features | |
| Security features | Kensington lock |

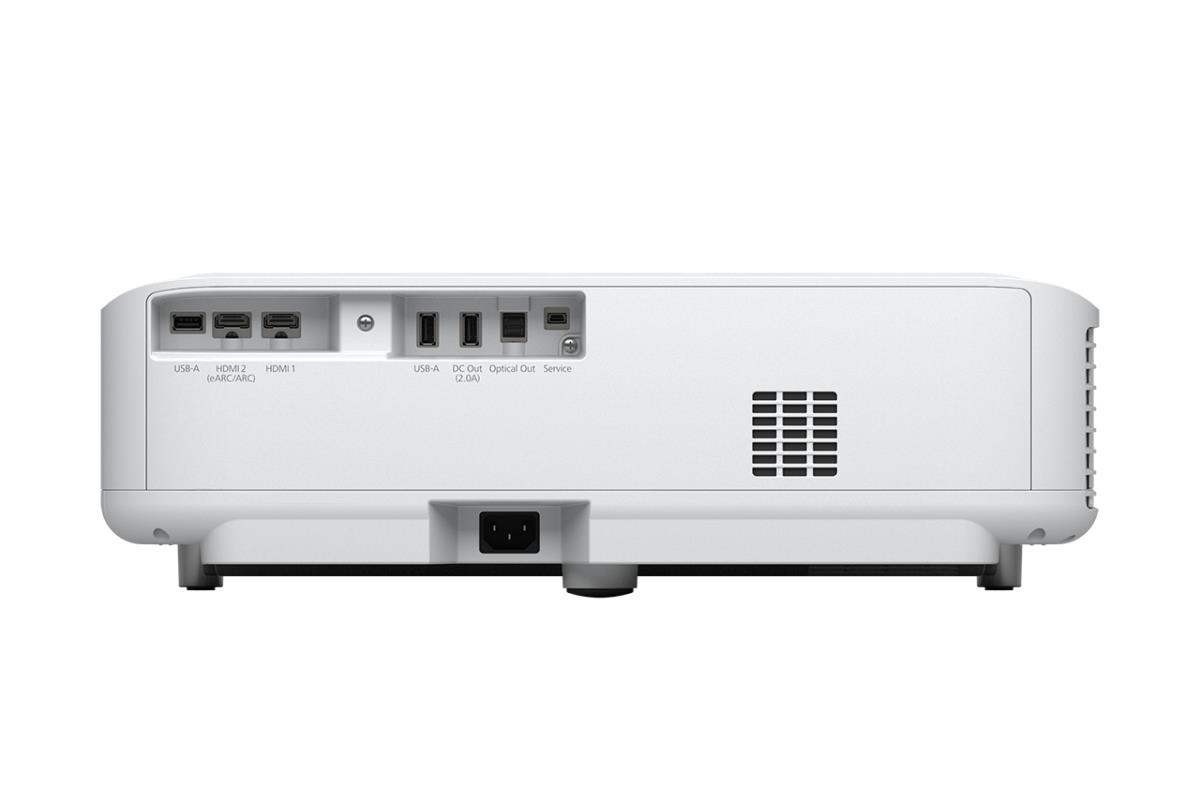

| Interface | USB 2.0-A (3x), USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, Bluetooth (optional), HDMI ARC, HDMI (HDCP 2.3) (2x), Remote |
| F-number (relative aperture) | 1.6 |
| Audio system | Sound by Yamaha |
| Option type | Air filter |
| Power consumption (economy mode) | 178 W |
| Control panel | 0.62 inch with C2 Fine |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document |
