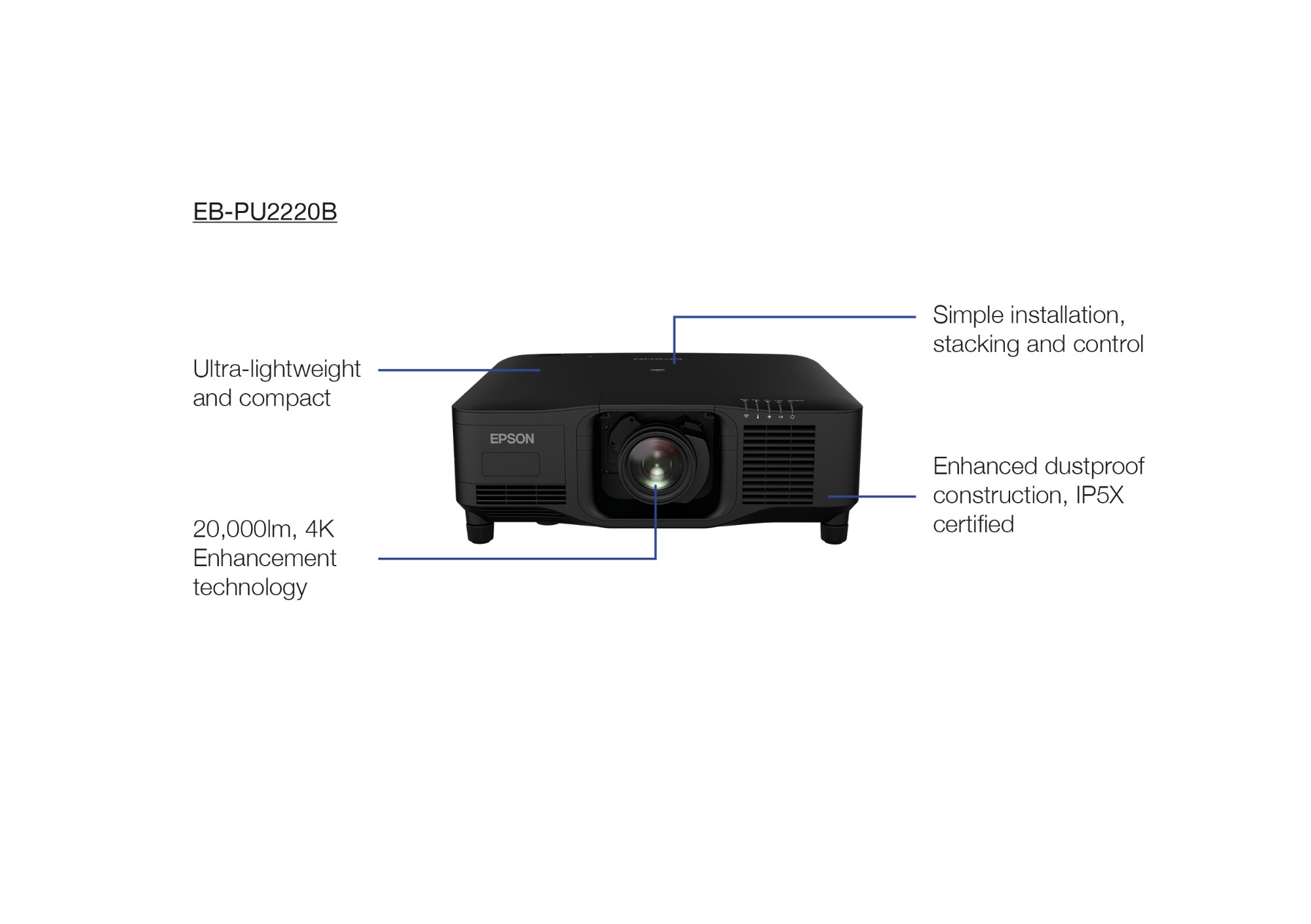

EB-PU2220B - 3LCD projector - 20000 lumens (white) - 20000 lumens (colour) - WUXGA (1920 x 1200) - 16:10 - LAN - black
Introduction
20,000lm laser projector
The EB-PU2220B offers users significant advantages including much reduced size and weight, easier installation and set-up, simplified maintenance and great image quality. This ultra-lightweight, compact laser projector has been designed for use in large auditoriums, live events, concerts, conference rooms where it delivers high-impact immersive experiences.
Compact and lightweight
The EB-PU2220B is around 60% smaller and 50% lighter than its predecessor, the EB-L20000U. The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.
Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.
Flexibility
The EB-PU2220B enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.
Reliability
Includes outstanding dust resistance as the hermetically sealed optical engine, and laser light source unit, ensure stable brightness output over long periods, even in high dust environments.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colours |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1524 - 25400 mm (60 - 1000") |
| Contrast ratio (typical) | 2000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| Zoom ratio | 1.6:1 |
| Projector brightness (economic mode) | 14000 ANSI lumens |
| Matrix size | 2.62 cm (1.03") |
| Projection technology | 3LCD |
| Projector brightness | 20000 ANSI lumens |
| Heat dissipation | 4423 BTU/h |
| Zoom type | Auto |
| Lamps | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Zoom ratio | 1.6:1 |
| Focus | Motorized |
| Focal length range | Varies by lens |
| Vertical lens shift range | -60 - 60% |
| Throw ratio | 0.35 - 7.41:1, Varies by lens |
| Zoom type | Auto |
| Interchangeable lens | Yes |
| Lens position memory | 10 |
| Video | |
| Video processing | 10 bit |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Full HD | Yes |
| 3D | No |
| Ports & interfaces | |
| HDBaseT port | Yes |
| USB 2.0 Type-B ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Headphone outputs | 1 |
| Serial interface type | RS-232C |
| DVI port | Yes |
| USB 2.0 Type-A ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 45 dB |
| Noise level (economic mode) | 37 dB |
| Technical details | |
| Product colour | Black |
| Security features | Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Option type | Camera module, Ceiling mount, Wireless LAN unit |
| Heat dissipation | 4423 BTU/h |
| Control panel | 1.03 inch with C2 Fine |
| Box contents | Cable cover, Document Pack, Information sheet, Lens connector cap, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries |
| Products per pallet | 4 pc(s) |
| Quantity per pack | 1 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 4 pc(s) |
| Pallet weight (UK) | 0 g |
| Other features | 21:9 aspect ratio support, 4K enhancement, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App |
| Performance | |
| Market positioning | Presentation |
| Password protection | Yes |
| Noise level | 45 dB |
| Noise level (economic mode) | 37 dB |
| Heat dissipation | 4423 BTU/h |
| Features | |
| Password protection | Yes |
| Noise level | 45 dB |
| Noise level (economic mode) | 37 dB |
| Country of origin | China |
| Design | |
| Market positioning | Presentation |
| Product type | Large venue projector |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | Yes |
| Placement | Ceiling, Desktop, Flying frame |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 1301 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (economy mode) | 899 W |
| Packaging data | |
| Package width | 715 mm |
| Package depth | 790 mm |
| Package height | 335 mm |
| Package weight | 30.8 kg |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Software | |
| Bundled software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Software support | via: AMX, Crestron (Network), Extron |
| Supplier features | |
| Harmonized System (HS) code | 85286200 |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Package width | 715 mm |
| Package depth | 790 mm |
| Package height | 335 mm |
| Weight | 24.4 kg |
| Width | 586 mm |
| Depth | 492 mm |
| Height | 218 mm |
| Package weight | 30.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Warranty card | Yes |
| Manual | Yes |
| Cables included | AC |
| Bundled software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Batteries included | Yes |
| WLAN adapter included | Yes |
| Logistics data | |
| Products per pallet | 4 pc(s) |
| Quantity per pack | 1 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 4 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Other features | |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Security features | Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), VGA in, DVI in, HDMI in, HDBaseT, Jack plug out, 3G-SDI Input, 3G-SDI Output, Wireless LAN IEEE 802.11a/b/g/n (optional), Near Field Communication (NFC), USB content playback, Remote |
| Option type | Camera module, Ceiling mount, Wireless LAN unit |
| Power consumption (economy mode) | 899 W |
| Control panel | 1.03 inch with C2 Fine |
| Box contents | Cable cover, Document Pack, Information sheet, Lens connector cap, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries |
