EPSON V11HA80080 EPSON EB-760WI - 3LCD projector - 4100 lumens (white) - 4100 lumens (colour) - WXGA (1280 x 800) - 16:10 - ultra short-throw lens - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

EB-760WI - 3LCD projector - 4100 lumens (white) - 4100 lumens (colour) - WXGA (1280 x 800) - 16:10 - ultra short-throw lens - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white

Introduction

Agile USTi laser display
Whatever the size of class or meeting room, unrestricted and interactive presentations are possible with this bright, compact and affordable touch-display solution.

The EB-760Wi's vibrant image, scalable up to 100", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.


The EB-760Wi is a step up from the EB-760W, with added interactive features.


Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.


The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.


With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.


Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.

Specifications

Projector
Number of colours1.07 billion colours
Projector native resolutionWXGA (1280x800)
Native aspect ratio16:10
Screen size compatibility1346.2 - 2540 mm (53 - 100")
Contrast ratio (typical)2500000:1
Contrast ratio (dynamic)5000000:1
Zoom ratio1.35:1
Zoom capabilityYes
Vertical scan range100 - 120 Hz
Projector brightness (economic mode)2800 ANSI lumens
Matrix size1.5 cm (0.59")
Keystone correction, vertical±3°
Keystone correction, horizontal±3°
Projection technology3LCD
Projector brightness4100 ANSI lumens
Smart projectorNo
Lamps
Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h
Light source
Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h
Lens system
Fixed focal length3.7 mm
Zoom ratio1.35:1
Zoom capabilityYes
FocusManual
Focal length range3.7 mm
Throw ratio0.27 - 0.37:1
F-number (relative aperture)1.6
Scanning frequency
Vertical scan range100 - 120 Hz
Video
Video processing10 bit
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format systemNot supported
Full HDNo
3DNo
Audio
Built-in speaker(s)Yes
RMS rated power16 W

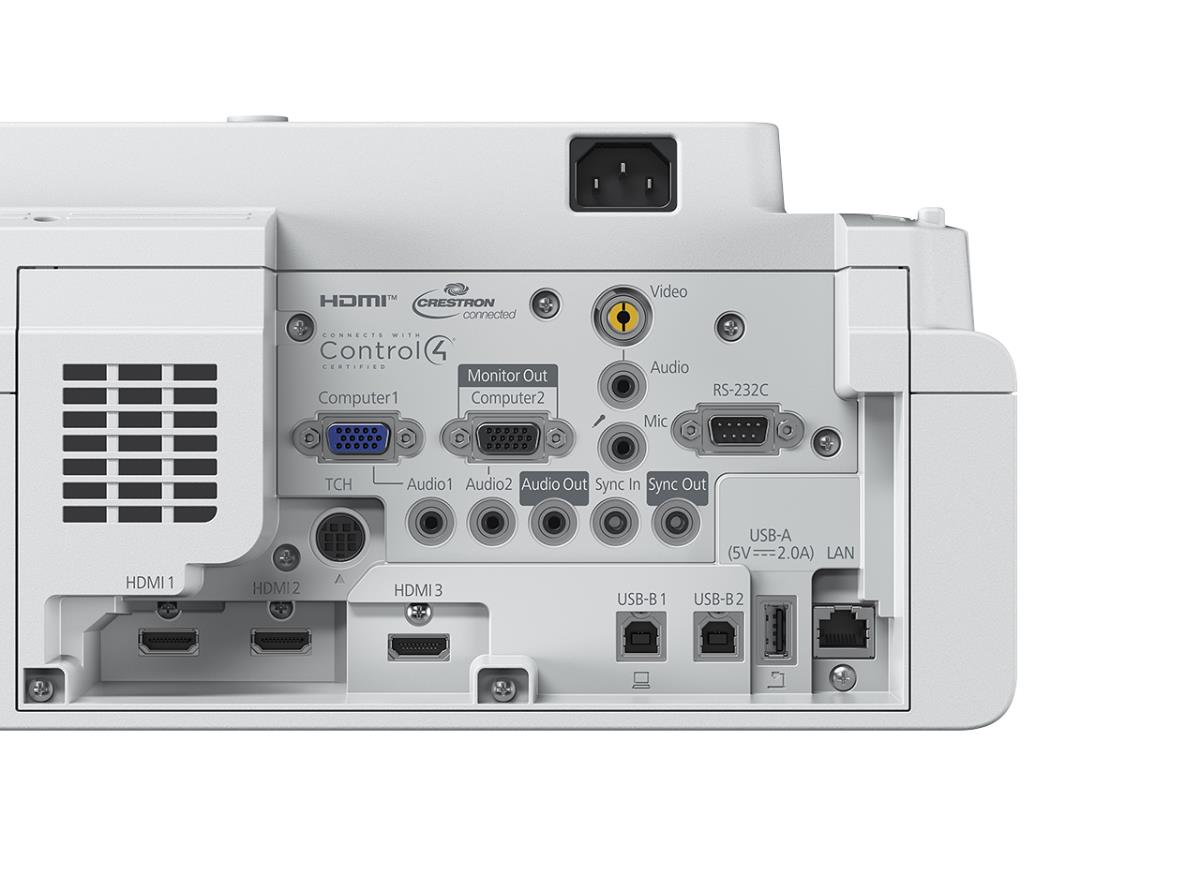

Ports & interfaces
VGA (D-Sub) ports quantity3
HDMI ports quantity3
USB 2.0 ports quantity2
Composite video in1
Headphone outputs3
Microphone inYes
Serial interface typeRS-232C
DVI portNo
Component video (YPbPr/YCbCr) in0
Service port typeUSB Type-B
Network
Smart TVNo
Ethernet LANYes
Ethernet LAN data rates10,100 Mbit/s
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
MiracastYes
Storage
Card reader integratedNo
Sound emission
Noise level37 dB
Noise level (economic mode)27 dB
Technical details
Product colourWhite
On Screen Display (OSD)Yes
Security featuresKensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Air filterYes
Option typeAir filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Control panel0.59 inch with C2 Fine
Box contents2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
Products per pallet12 pc(s)
Quantity per pack1 pc(s)
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height2.1 m
Products per pallet layer (UK)4 pc(s)
Products per pallet layer2 pc(s)
Products per pallet (UK)24 pc(s)
Pallet length (UK)120 cm
Pallet height (UK)2.1 m
Other featuresA/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code
Performance
Market positioningPresentation
Password protectionYes
On Screen Display (OSD)Yes
Vertical scan range100 - 120 Hz
Noise level37 dB
Noise level (economic mode)27 dB
Air filterYes
Features
InteractiveYes
Password protectionYes
On Screen Display (OSD)Yes
Noise level37 dB
Noise level (economic mode)27 dB
Air filterYes
Country of originPhilippines
Multimedia
Built-in speaker(s)Yes
RMS rated power16 W
Design
Market positioningPresentation
Cable lock slot typeKensington
Product colourWhite
Cable lock slotYes
PlacementCeiling, Desktop, Wall
Display
Built-in displayNo
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power sourceAC
Power consumption (typical)197 W
Power consumption (economy mode)141 W
Packaging data
Package width450 mm
Package depth490 mm
Package height325 mm
Package weight9.17 kg
Security
Cable lock slot typeKensington
Cable lock slotYes
Software
Bundled softwareEasy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Operational conditions
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-10 - 60 °C
Storage relative humidity (H-H)10 - 90%
Weight & dimensions
Package width450 mm
Package depth490 mm
Package height325 mm
Weight6 kg
Width356 mm
Depth395 mm
Height133 mm
Package weight9.17 kg
Packaging content
Remote control includedYes
Cables includedAC, USB
Bundled softwareEasy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Batteries includedYes
Interactive pen includedYes
Logistics data
Products per pallet12 pc(s)
Quantity per pack1 pc(s)
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height2.1 m
Products per pallet layer (UK)4 pc(s)
Products per pallet layer2 pc(s)
Products per pallet (UK)24 pc(s)
Pallet length (UK)120 cm
Pallet height (UK)2.1 m
Other features
Supported network protocolsHTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security featuresKensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
InterfaceUSB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input
F-number (relative aperture)1.6
Option typeAir filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Power consumption (economy mode)141 W
Control panel0.59 inch with C2 Fine
Box contents2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
