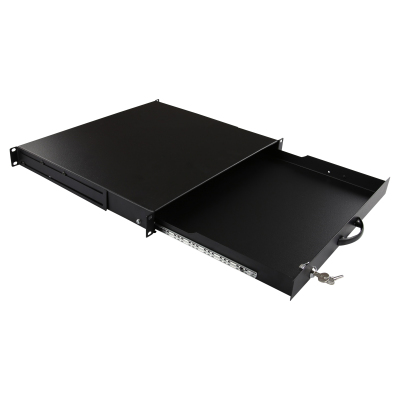

2U 19" KEYBOARD, GENERAL USE, LOCKABLE DRAWER MODULE
Introduction
19" drawer modules (lockable)
Dimensions(mm): W: 482 x D: 400 x H: 88
Color: Ral 9005
Rack modules are general purpose housings, lockable and adaptable to all 19" cabinets. They can be easily installed to any depth by means of adjustable depth side brackets found in the front and in the back.
With its specially designed side panels of extruded aluminum it presents a robust and high resistance structure.
Specifications
| Features | |
|---|---|
| Easy mounting | Yes |
| Compatible rack width | 19" |
| Preassembled | Yes |
| Type | Drawer unit |
| Rack capacity | 2U |
| Product colour | Black |
| Mounting hole shape | Oval |
| Number of attachment points | 4 |
| Weight & dimensions | |
| Package weight | 6.31 kg |
| Width | 482 mm |
| Weight | 6.3 kg |
| Height | 88 mm |
| Depth | 400 mm |
| Packaging data | |
| Package weight | 6.31 kg |
| Packaging content | |
| Screws included | Yes |
| Cage nuts included | Yes |
| Technical details | |
| Type | Drawer unit |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Dimensions (WxDxH) | 482 x 400 x 88 mm |
| Static load | 50 Kg |
| Colour | |
| Product colour | Black |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 482 x 400 x 88 mm |
| Static load | 50 Kg |
