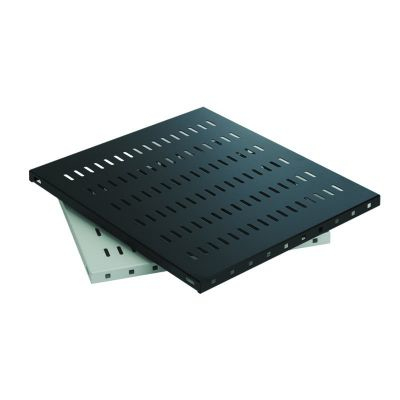

TRAY FOR CABINETS D=1000 FIXED SHELF BLACK
Introduction
Model: Logon Professional RAS110BL
Fixed shelves are cabinet shelves adaptable to LOGON cabinets, with 4 connection points and bearing ventilation slots thereon.
By attaching single cable organizer to the rectangular openings on the front and back, cables of the devices installed thereon may be organized professionally.
Features
19" Fixed Shelf for 1 U for cabinets D: 1000mm
Dimensions(mm): W:465 x D: 725 x H: 25
Maximum static load(kg) : 50
Color: RAL9005
Specifications
| Features | |
|---|---|
| Easy mounting | Yes |
| Compatible rack width | 19" |
| Preassembled | Yes |
| Type | Shelf |
| Rack capacity | 1U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Mounting hole shape | Oval |
| Perforated | Yes |
| Number of attachment points | 4 |
| Weight & dimensions | |
| Package weight | 103 g |
| Width | 483 mm |
| Weight | 103 g |
| Height | 44 mm |
| Depth | 720 mm |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Package weight | 103 g |
| Packaging content | |
| Screws included | Yes |
| Cage nuts included | Yes |
| Technical details | |
| Type | Shelf |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 465 x 725 x 22 mm |
| Static load | 50 Kg |
| Colour | |
| Product colour | Black |
| Other features | |
| Dimensions (WxDxH) | 465 x 725 x 22 mm |
| Static load | 50 Kg |
