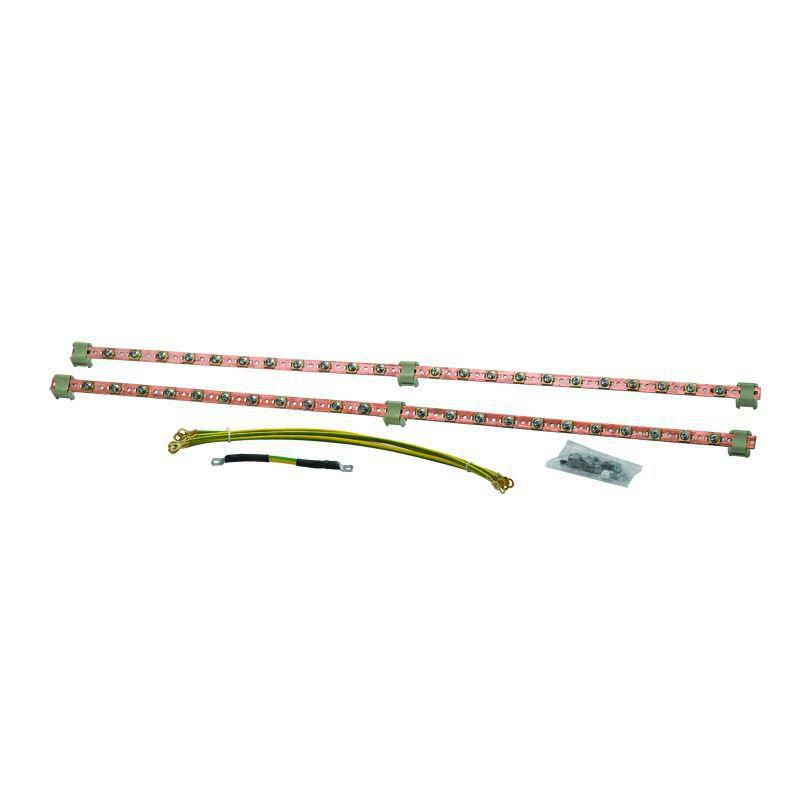

2 pcs. VERTICAL EARTHING SET FOR 44 EARTHING POINT
Introduction
19" 44 earthing point
Product dimensions(mm): W: 25 x D: 25 x H: 780
It is a grounding set installed vertically on the cabinet bearing 22 grounding points thereon with a 780 mm length copper busbar (22x2:44 connection points), 4 yellow-green grounding wires of 400mm length and 4mm diameter and a jumper cable of 100 mm length and 16 mm diameter.
Specifications
| Features | |
|---|---|
| Easy mounting | Yes |
| Preassembled | Yes |
| International Protection (IP) code | IP20 |
| Type | Earthing kit |
| Product colour | Steel |
| Number of attachment points | 2 |
| Weight & dimensions | |
| Package weight | 1.51 kg |
| Width | 780 mm |
| Weight | 1.5 kg |
| Height | 25 mm |
| Depth | 25 mm |
| Packaging data | |
| Package weight | 1.51 kg |
| Technical details | |
| Type | Earthing kit |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 25 x 25 x 780 mm |
| Colour | |
| Product colour | Steel |
| Other features | |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 25 x 25 x 780 mm |
