EU Product - Ki for ForiGe 80F / 81F
Introduction

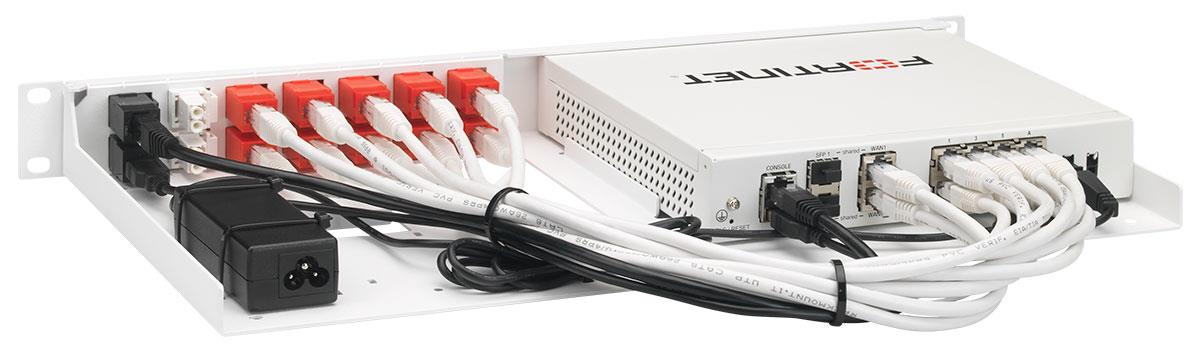

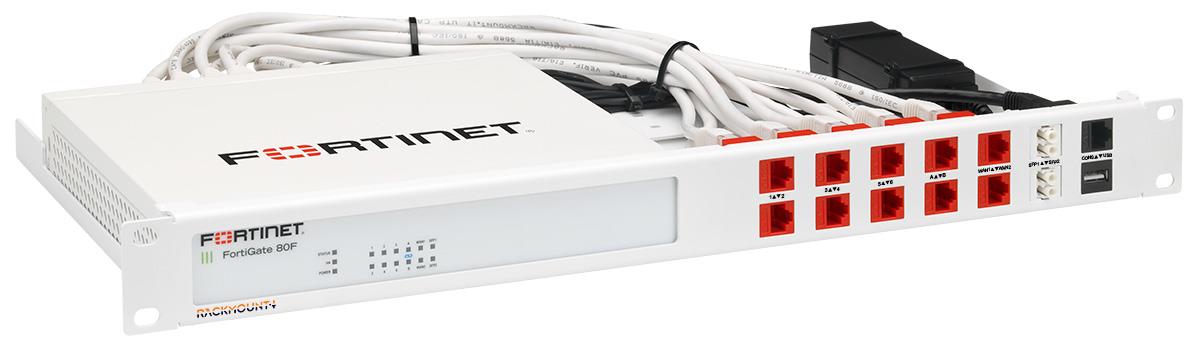

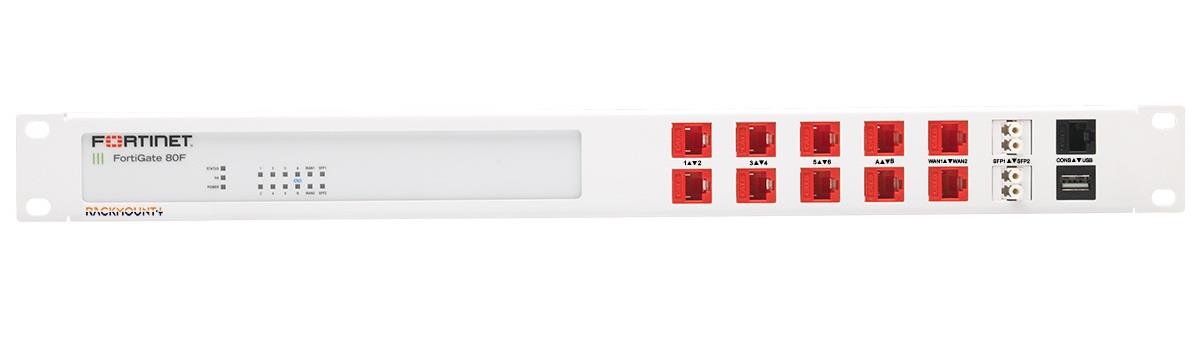

The RM-FR-T15 gives you the ability to mount your Fortinet desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.
Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables and keystones, and fix the power supply to the rack.
Specifications
| Features | |
|---|---|
| Cables included | LAN (RJ-45), USB |
| Type | Mounting bracket |
| Rack capacity | 1U |
| Compatibility | Fortinet FortiGate 80F, FortiGate 81F |
| Product colour | White |
| Harmonized System (HS) code | 85389099 |
| Weight & dimensions | |
| Package width | 520 mm |
| Package height | 80 mm |
| Package depth | 270 mm |
| Width | 482 mm |
| Height | 44 mm |
| Depth | 217 mm |
| Packaging data | |
| Package width | 520 mm |
| Package height | 80 mm |
| Package depth | 270 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | LAN (RJ-45), USB |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Number of cables | 14 |
| Couplers included | Yes |
| Coupler type | RJ-45 |
| Number of couplers | 10 |
| Technical details | |
| Type | Mounting bracket |
| Rack capacity | 1U |
| Compatibility | Fortinet FortiGate 80F, FortiGate 81F |
| Colour | |
| Product colour | White |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
