1U SERVER RACK SHELF UNIVERSAL
Introduction
Add a sturdy, fixed shelf into almost any server rack or cabinet
The SHELF-1U-20-FIXED-S lets you add a 1U 20 inches (50.8 cm) deep shelf to any EIA-310 compliant 19-inch rack or cabinet.
Quality construction
The fixed-rack shelf can hold up to 55 lbs (25 kg) of equipment and is constructed using 2.0 mm SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.
Two installation options

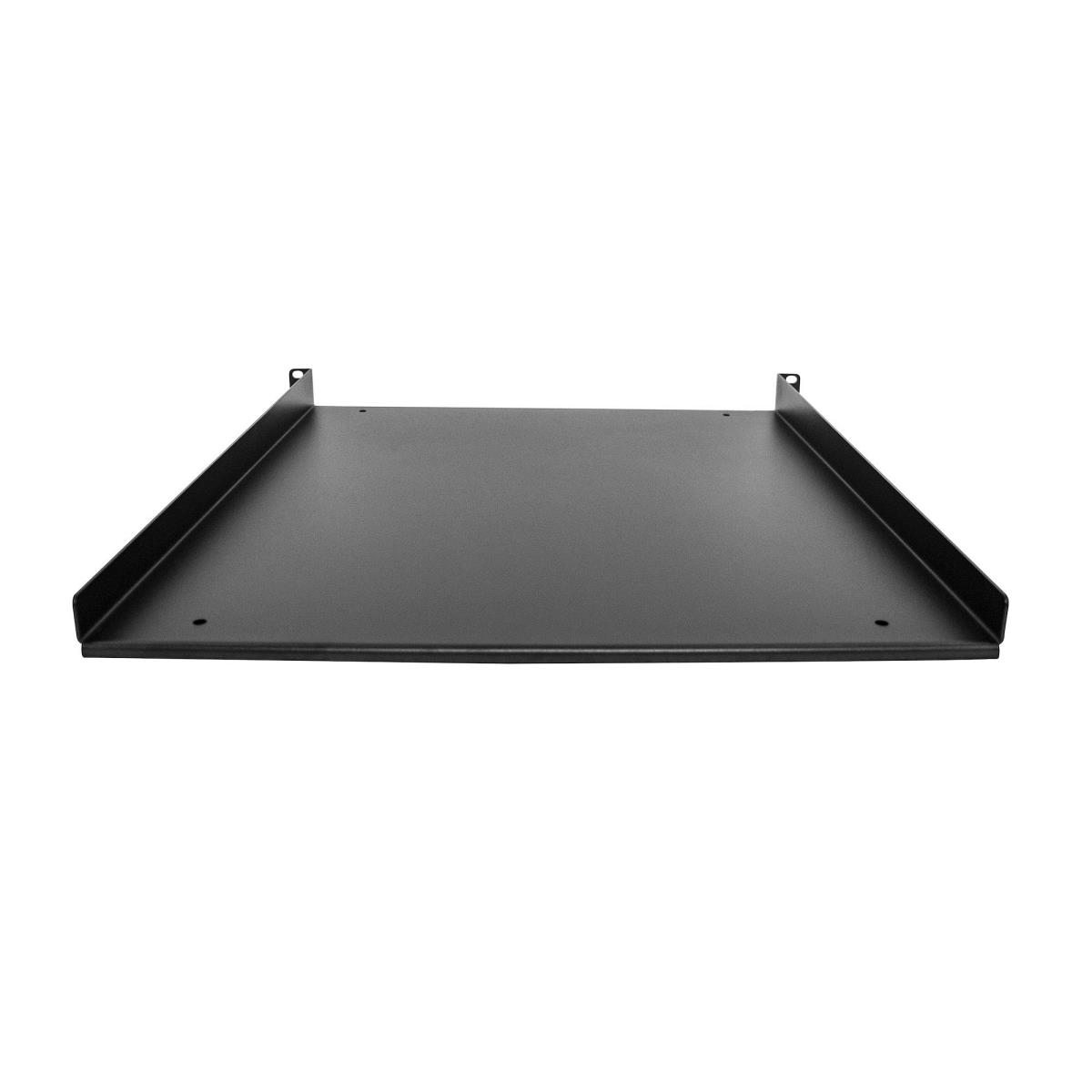

You can install the 1U rack shelf using one of two different orientations for mounting. The standard, with the lip facing downwards or inversed with the lip facing upwards that prevents your equipment from sliding off.
Hardware included

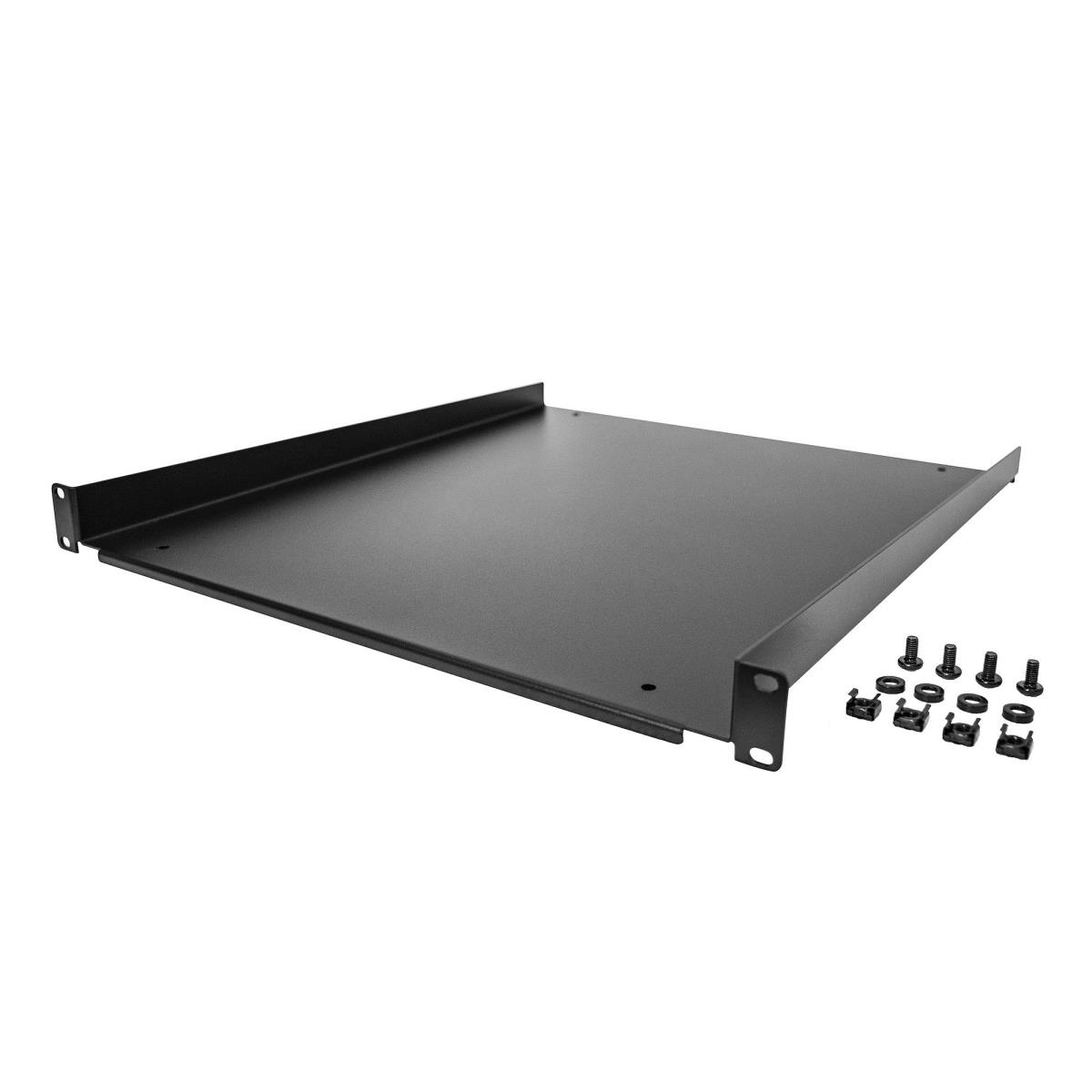

Conveniently includes M6 square cage nuts and M6 screws to setup your equipment in no time.
The SHELF-1U-20-FIXED-S is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Type | Rack shelf |
| Rack capacity | 1U |
| Maximum weight capacity | 25 kg |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Housing material | SPCC |
| Weight & dimensions | |
| Package width | 110 mm |
| Package height | 129 mm |
| Package depth | 557 mm |
| Package weight | 5.2 kg |
| Width | 483 mm |
| Weight | 4 kg |
| Height | 43 mm |
| Depth | 508 mm |
| Maximum weight capacity | 25 kg |
| Packaging data | |
| Package width | 110 mm |
| Package height | 129 mm |
| Package depth | 557 mm |
| Package weight | 5.2 kg |
| Packaging content | |
| Screws included | Yes |
| Quick installation guide | Yes |
| Screw type | M6 |
| Cage nuts included | Yes |
| Technical details | |
| Type | Rack shelf |
| Rack capacity | 1U |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 588 mm |
| Master (outer) case height | 565 mm |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 85389099 |
