Part No:RS232EXTC1GB
Stock:13 In Stock
EAN Code:0065030842396
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cablingThe RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Technical details | |
---|---|
Type | Console transmitter & receiver |
Data transfer rate | 0.23 Mbit/s |
Cable types supported | Cat5, Cat5e, Cat6 |
Maximum transfer distance | 1000 m |
Product colour | Silver |
Plug and Play | Yes |
Sustainability certificates | CE, RoHS |
Harmonized System (HS) code | 84733020 |
Ports & interfaces | |

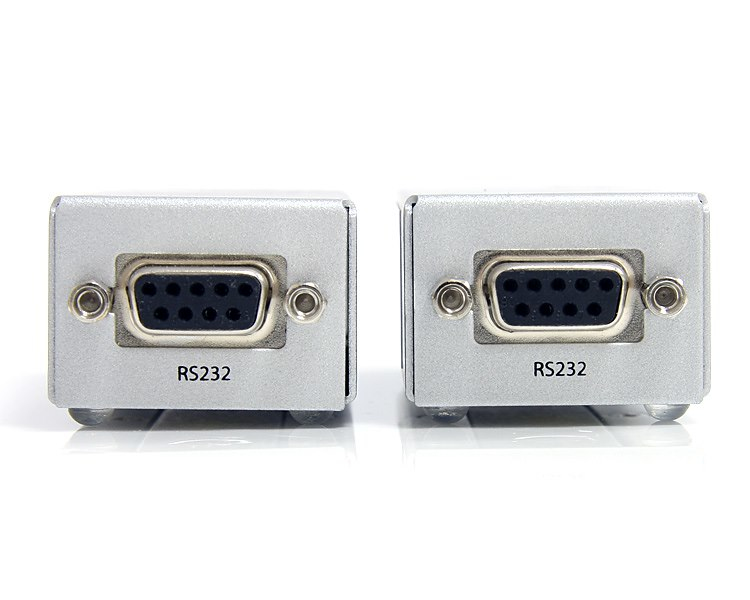

RS-232 ports | 2 |

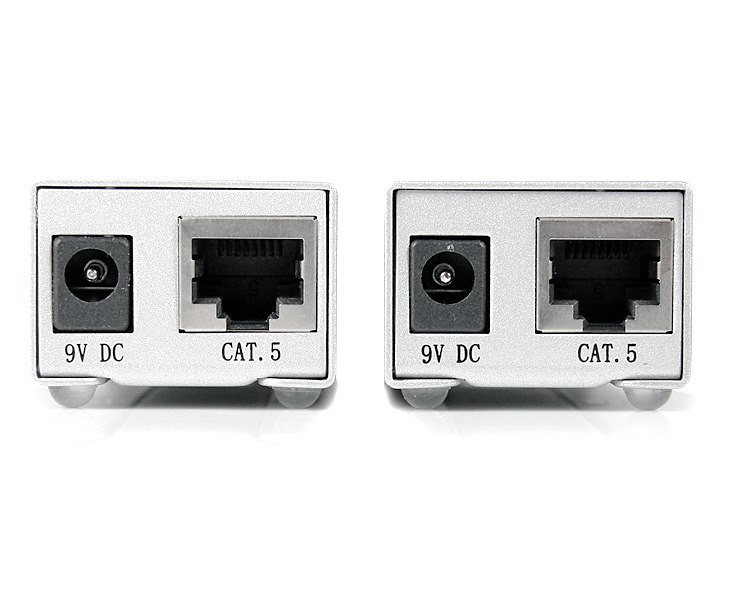

RJ-45 ports quantity | 2 |
DC-in jack | Yes |
Weight & dimensions | |
Package width | 57 mm |
Package depth | 315 mm |
Package height | 138 mm |
Package weight | 1 kg |
Width | 34 mm |
Depth | 92 mm |
Height | 22 mm |
Weight | 65 g |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | 0 - 85 °C |
Operating relative humidity (H-H) | 0 - 95% |
Colour | |
Product colour | Silver |

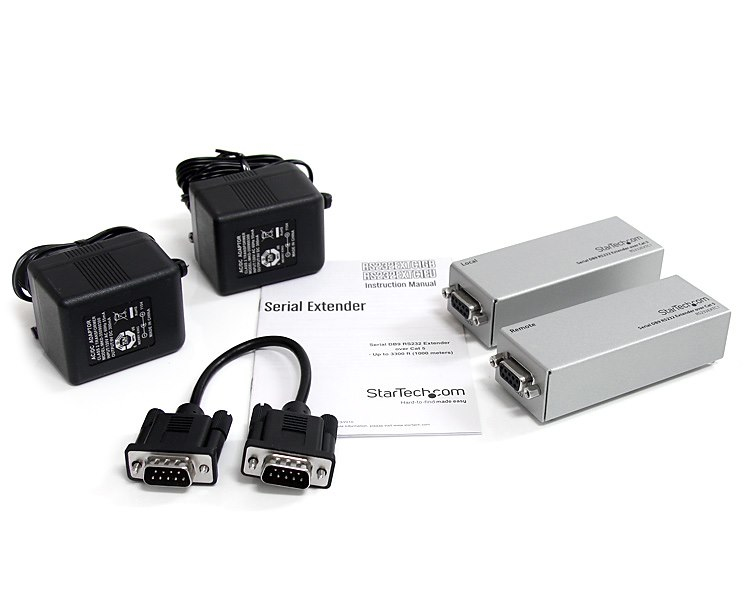

Packaging content | |
AC adapter included | Yes |
Manual | Yes |
Cables included | Serial |
Power | |
Input voltage | 100 - 240 V |
Output voltage | 9 V |
Output current | 0.3 A |
Power plug type | Type M |
Input current | 0.055 A |
Logistics data | |
Master (outer) case width | 326 mm |
Master (outer) case length | 328 mm |
Master (outer) case height | 300 mm |
Products per master (outer) case | 10 pc(s) |
Harmonized System (HS) code | 84733020 |
