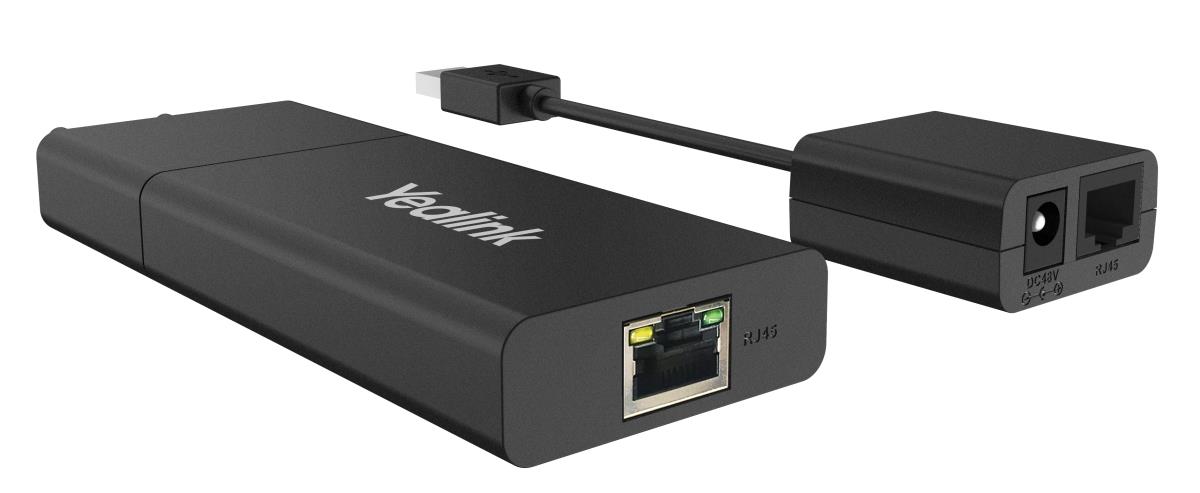

USB2CAT5E-EXT

Introduction

The Yealink USB2CAT5E-EXT USB Extender provides a simplified installation taking the advantage of CAT5e cable. With the flexibility of the USB Extender, users can place the USB peripheral nearly anywhere in meeting rooms. Also, the CATe5 cable length can be tailored according to particular demands. The powerful USB extender solution can boost a USB signal up to 40 meters.

Specifications

Performance
Type	Network transmitter & receiver
Maximum transfer distance	40 m
Cable types supported	Cat5e
Ports & interfaces
RJ-45 ports quantity (transmitter)	1
RJ-45 ports quantity (receiver)	1
DC-in jack	Yes
USB 2.0 ports quantity	2
Design
Product colour	Black
Power
AC input voltage	100 - 240 V
External power adapter	Yes
Output voltage	48 V
Output current	0.7 A
Operational conditions
Operating temperature (transmitter)	0 - 40 °C
Operating temperature (receiver)	0 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Weight	360 g
Packaging content
AC adapter included	Yes
Quick start guide	Yes
Packaging data
Package width	119 mm
Package depth	180 mm
Package height	56 mm
Package weight	410 g
Technical details
Type	Network transmitter & receiver
Maximum transfer distance	40 m
Cable types supported	Cat5e
Harmonized System (HS) code	85176990
Colour
Product colour	Black
Logistics data
Harmonized System (HS) code	85176990
