EU Product - 4G M2M Rouer, 4x Fs
Introduction
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Ethernet & 4G Redundancy
Seamless failover between Ethernet WAN and 4G for reliable connectivity
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Carrier Diversity and Network Redundancy

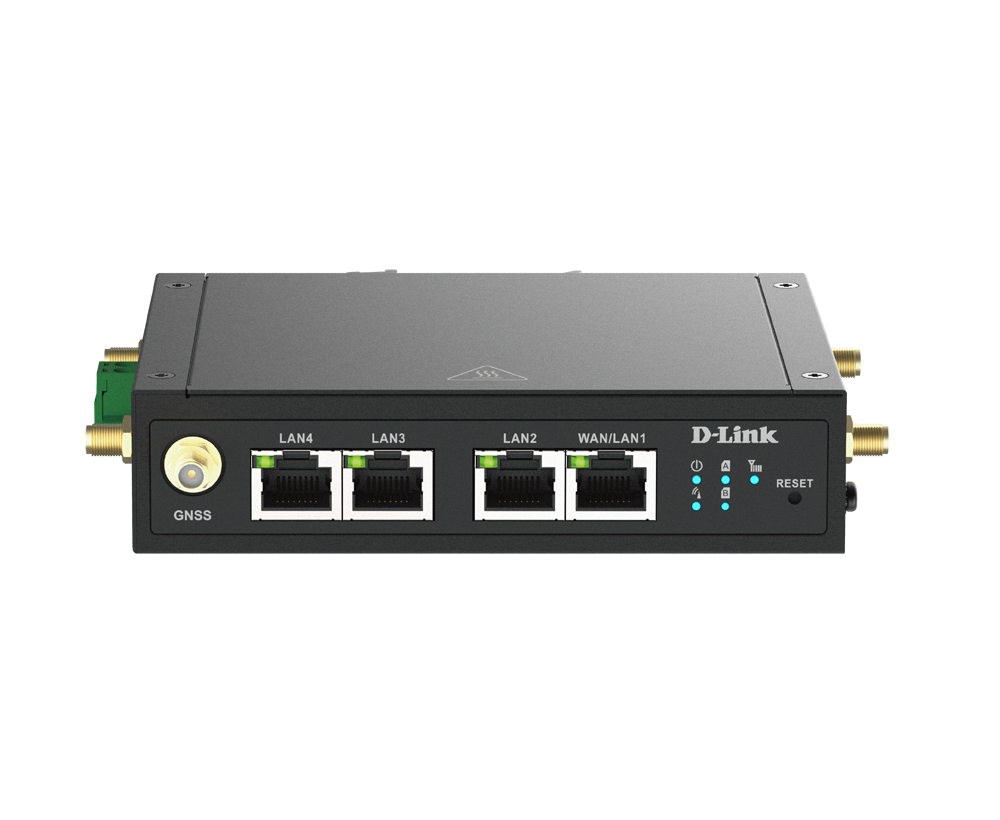

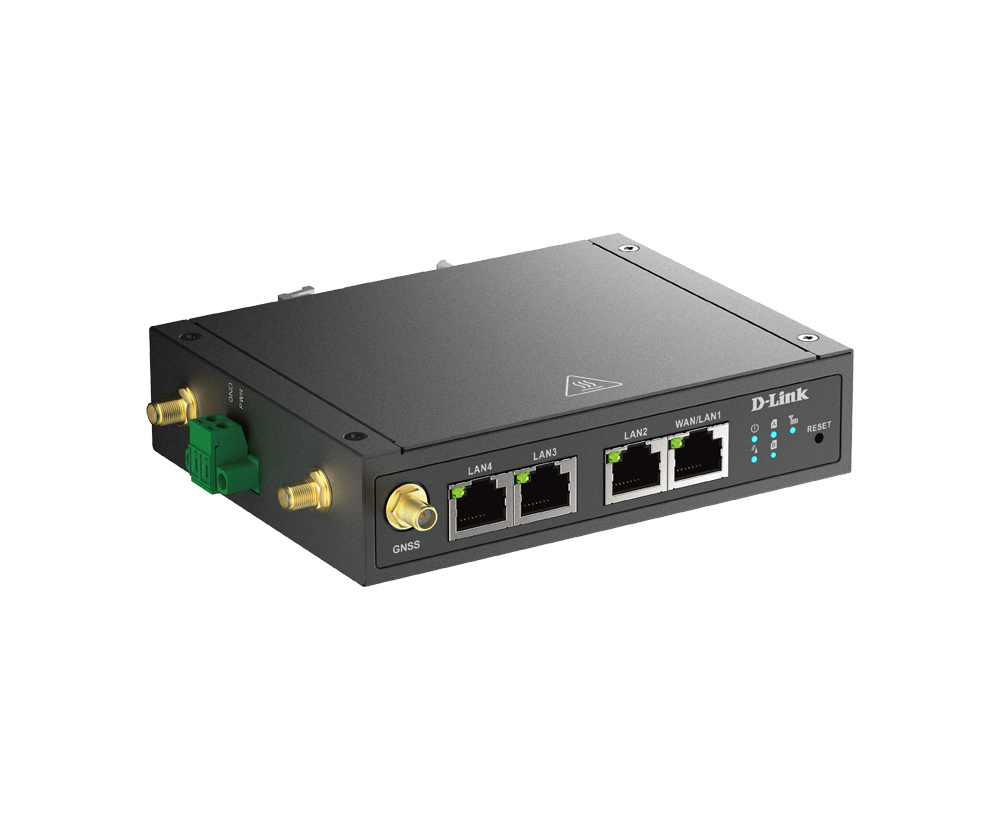

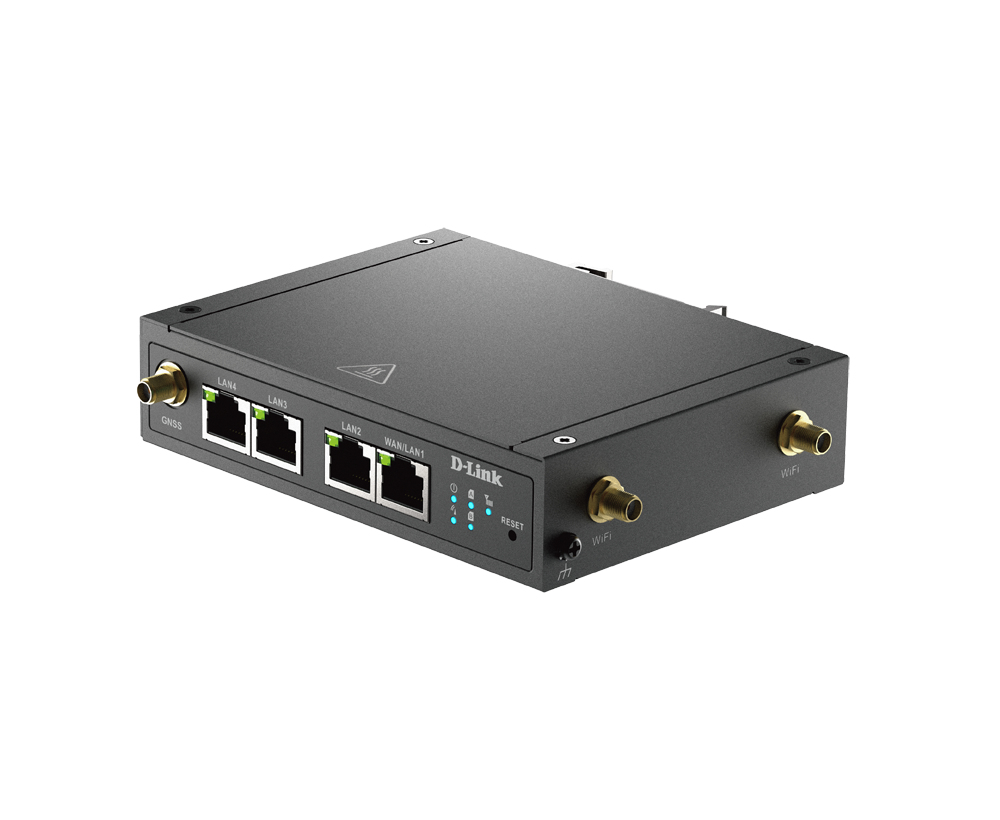

The DWM-530-T 4G M2M Router ensures continuous service with Dual SIM (Micro-SIM 3FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and LTE connections, ensuring you always have the best network access.
Secure Your Network with VPN
The DWM-530-T 4G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, and GRE. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-530-T ensures that financial transactions and customer information are securely managed and transmitted.
Robust Build Quality
The DWM-530-T is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment. Convenient DIN-rail mounting allows the DWM-530-T to be mounted virtually anywhere to optimize signal quality.
Specifications
| Technical details | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Mounting | DIN-rail |
| Device type | Cellular network router |
| Data network | 4G |
| Ethernet LAN features | |
| Ethernet LAN (RJ-45) ports | 4 |
| DHCP server | Yes |
| Cellular interface | |
| Number of SIM cards | 2 |
| 4G standard | LTE |
| Design | |
| Mounting | DIN-rail |
| Device type | Cellular network router |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Mobile network | |
| Number of SIM cards | 2 |
| Data network | 4G |
| 4G standard | LTE |
| Ports & interfaces | |
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet LAN (RJ-45) ports | 4 |
| Card reader integrated | Yes |
| Security | |
| Port forwarding | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Network address translation (NAT) | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Performance | |
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 4 |
| Antenna | |
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 4 |
| Power | |
| Input voltage | 9 - 36 V |
| Power source type | DC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 131 mm |
| Depth | 99 mm |
| Height | 31 mm |
