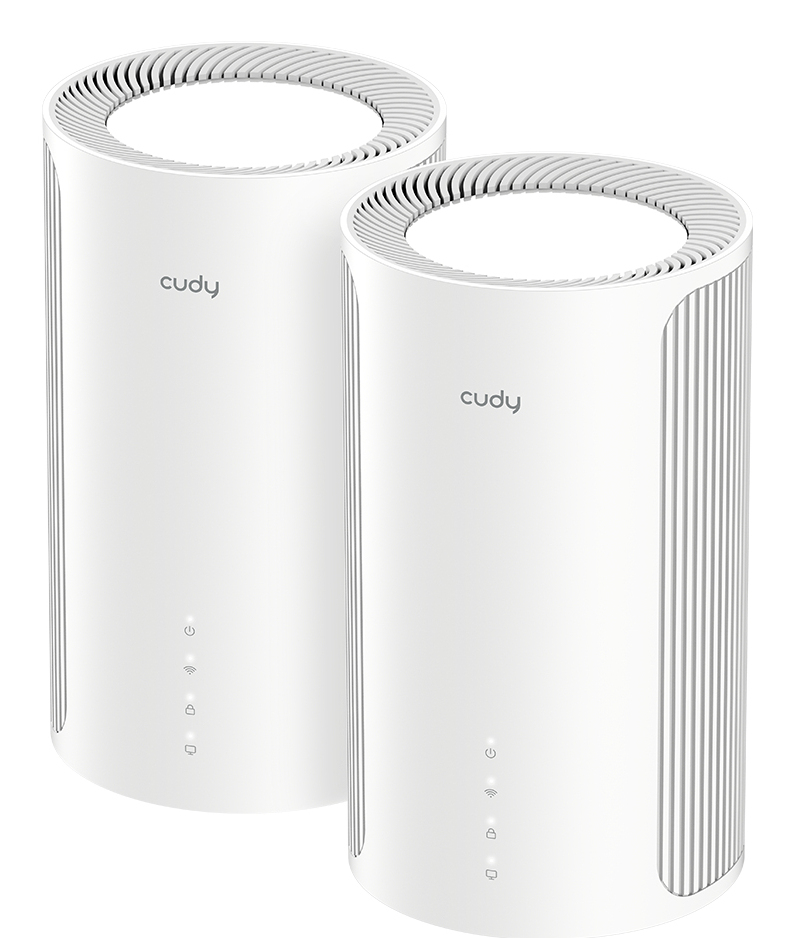

EU Product - Router M11000 Wi-Fi 7 Mesh Solution - Router - 5.77 Gbps
Introduction
A tri-band WiFi 7 Mesh System catering to latency-sensitive, speed-demanding, and large-scale scenarios. MLO provides extraordinary Wi-Fi speed boost. Suitable for internet access up to 2.5 Gbps.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Status, System |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | FCC, CE |
| Antenna direction type | Omni-directional |
| Maximum coverage | 250 m² |
| Product type | Mesh router |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Security algorithms | WPA, WPA2, WPA3 |
| WLAN data transfer rate (first band) | 2882 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| Networking standards | IEEE 802.11be |
| Guest access | Yes |
| WLAN data transfer rate (third band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 4324 Mbit/s |
| Features | |
| Processor cores | 4 |
| Bluetooth | No |
| Built-in processor | Yes |
| Internal memory | 128 MB |
| Flash memory | 512 MB |
| MIMO | Yes |
| Processor frequency | 1.5 GHz |
| MU-MIMO technology | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Certificates | |
| Certification | FCC, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 116 mm |
| Depth | 116 mm |
| Height | 202 mm |
| Weight | 852.5 g |
| Package width | 55.8 mm |
| Package depth | 380 mm |
| Package height | 274 mm |
| Package weight | 2.43 kg |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 2 pc(s) |
| Quick installation guide | Yes |
| Number of units included | 2 pc(s) |
| Packaging data | |
| Package width | 55.8 mm |
| Package depth | 380 mm |
| Package height | 274 mm |
| Package weight | 2.43 kg |
