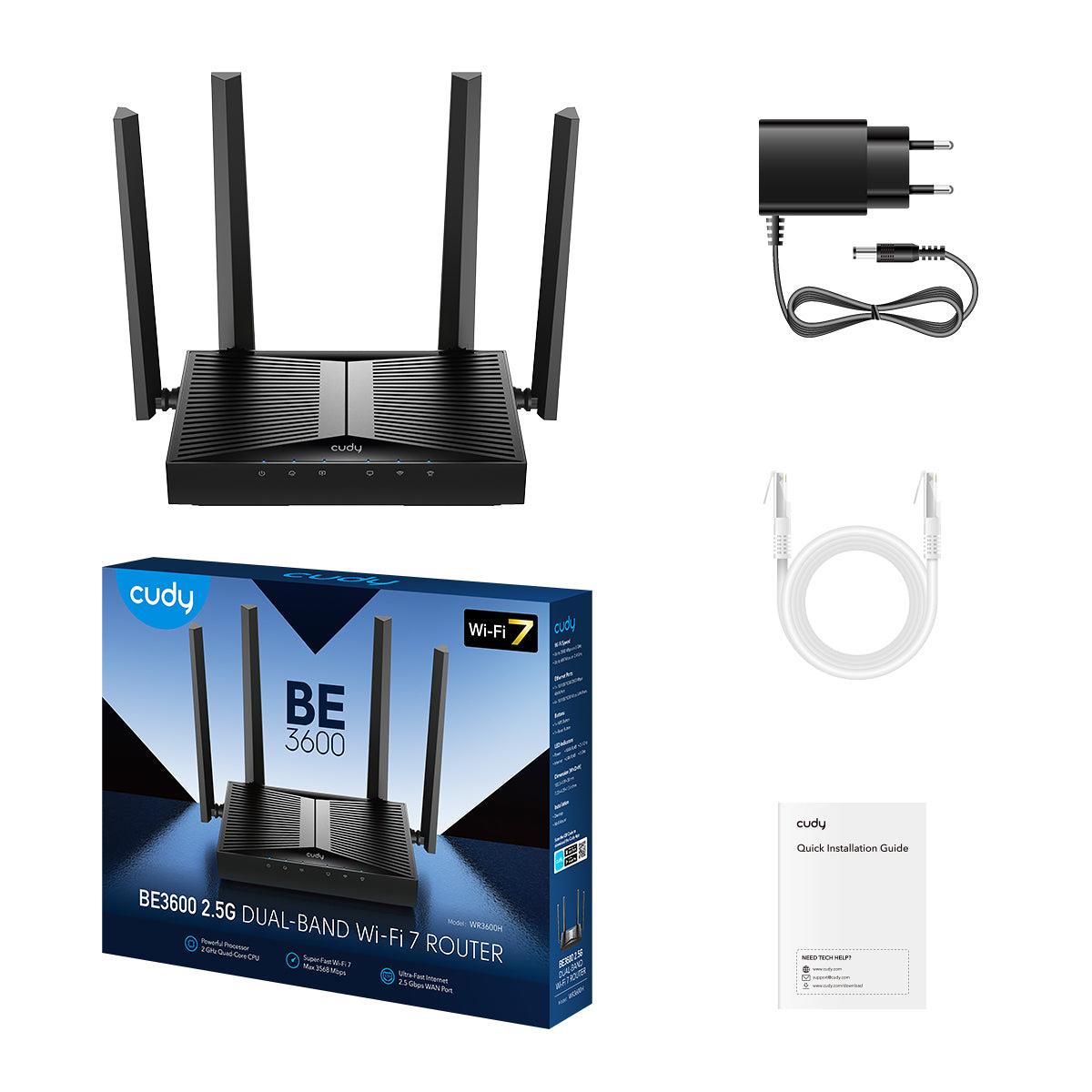

EU Product - BE3600 2.5G Wi-Fi 7 Mesh Router WR3600H - Router - WLAN
Introduction
A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed, one 2.5G WAN, one 2.5G LAN and three Gigabit LAN, catering to multi-Gig internet access, gaming, and entertainment scenarios.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Wake-on-LAN ready | Yes |
| Guest access | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Port forwarding | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| VPN server | WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Performance | |
| Processor frequency | 2000 MHz |
| Processor cores | 4 |
| Built-in processor | Yes |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Processor architecture | ARM Cortex A7 |
| Weight & dimensions | |
| Package width | 330 mm |
| Package weight | 762 g |
| Package height | 60 mm |
| Package depth | 256 mm |
| Width | 183.3 mm |
| Weight | 332 g |
| Height | 38 mm |
| Depth | 109 mm |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 2882 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Modulation | 4096-QAM |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Security | |
| URL filtering | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Guest access | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| IGMP snooping | Yes |
| Design | |
| Product type | Tabletop router |
| Wall mountable | Yes |
| LED indicators | LAN, Power, WAN, WLAN |
| Product colour | Black |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Other features | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Antenna | |
| Antenna design | External |
| Detachable antenna(s) | No |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.5 dBi |
| Antenna type | 2x2 |
| Features | |
| Processor frequency | 2000 MHz |
| Processor cores | 4 |
| Built-in processor | Yes |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Processor architecture | ARM Cortex A7 |
| Internal memory type | DDR3L |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package width | 330 mm |
| Package weight | 762 g |
| Package height | 60 mm |
| Package depth | 256 mm |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
