INTELLINET/MANHATTAN 460835 INTELLINET/MANHATTAN LONG RANGE CCD BARCODE SCANNER-

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

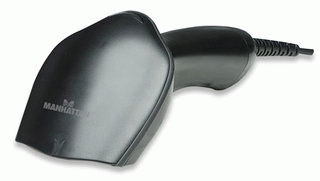

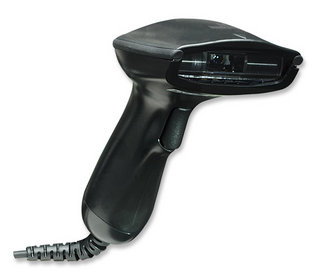

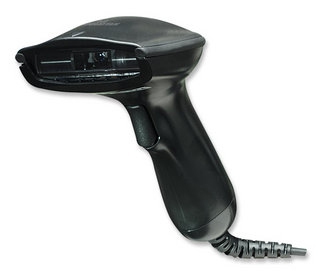

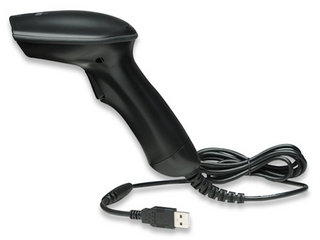

LONG RANGE CCD BARCODE SCANNER-

Introduction

Improve speed, accuracy and productivity_x000D_
Manhattan CCD Long-Range Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it was manually typed or directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates with most PCs without an external power supply. With a scan rate of 500 scans per second and an accurate read range of up to 50 cm (20 in.), this model offers an effective and efficient, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Specifications

Scanning
Scanner resolution0.1 mm
TypeHandheld bar code reader
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen
2D (matrix & stacked) barcodes supportedNot supported
Sensor typeCCD
Scanner type1D
Read rate (max)500 reads/s
Light levels (direct sunlight)0 - 30000 lx
Ports & interfaces
Connectivity technologyWired
Cable length1.5 m
Standard interfacesUSB
Performance
Housing materialAcrylonitrile butadiene styrene (ABS), Rubber
Product colourBlack
CertificationFCC CE
Light levels (direct sunlight)0 - 30000 lx
Design
TypeHandheld bar code reader
Housing materialAcrylonitrile butadiene styrene (ABS), Rubber
Product colourBlack
CertificationFCC CE
Power
Power consumption150 mA
Power source typeUSB
Input voltage5 V
Weight & dimensions
Width90 mm
Depth193 mm
Height72 mm
Weight440 g
Technical details
TypeHandheld bar code reader
Housing materialAcrylonitrile butadiene styrene (ABS), Rubber
Product colourBlack
CertificationFCC CE
Harmonized System (HS) code84716070
Compliance certificatesCE, Federal Communications Commission (FCC)
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)20 - 95%
Light levels (direct sunlight)0 - 30000 lx
Logistics data
Harmonized System (HS) code84716070
