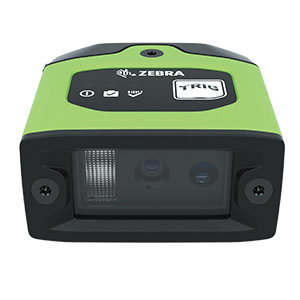

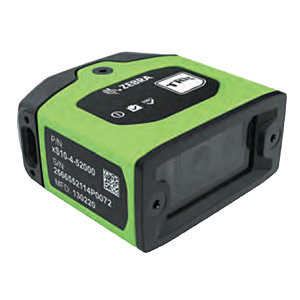

FS10 FIXED INDUSTRIAL USB SCANNER: AUTO FOCUS, STANDARD RANGE, 1.0 MP, STANDARD BARCODE DECODER, RED AND WHITE ILLUMINATION - WORLDWIDE CUSTOMER MADE CLASS 5 ITEM, ASK FOR A QUOTE.
Introduction
Put plug-and-play high quality scanning wherever you need it
The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.
Now, you can address it all with the compact Zebra FS10 Fixed Industrial Scanner.1 With a slim profile, the FS10 easily fits everywhere you need scanning. Just plug the FS10 into the USB port of a workstation, laptop, tablet or any other host device to dependably capture barcode data, from assembly to storage and fulfillment.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39, Code 93, MSI-Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 35° |
| Vertical field of view | 26° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 2.0 |
| USB 2.0 ports quantity | 1 |
| Standard interfaces | USB |
| Performance | |
| Protection features | Shock resistant, Vibration proof |
| LED indicators | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Design | |
| Type | Fixed bar code reader |
| Protection features | Shock resistant, Vibration proof |
| LED indicators | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 5 W |
| Input voltage | 5 V |
| Input current | 1 A |
| Weight & dimensions | |
| Width | 43 mm |
| Depth | 51 mm |
| Height | 25.4 mm |
| Weight | 120 g |
| Technical details | |
| Type | Fixed bar code reader |
| Protection features | Shock resistant, Vibration proof |
| LED indicators | Yes |
| Housing material | Aluminium |
| USB 2.0 ports quantity | 1 |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Other features | |
| USB 2.0 ports quantity | 1 |
