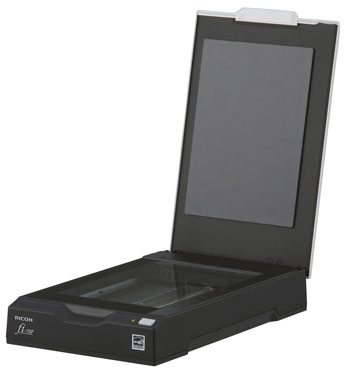

fi-70F A6 / Passport flatbed Scanner PA03841-B001
Introduction
The fi-70F designed for portability and compact spaces guarantees simple and fast scanning for a variety of identification and small cards.
Specifications
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Maximum scan size | 105 x 148 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Output colour depth | 24 bit |
| Sensor type | CMOS CIS |
| Design | |
| Built-in display | No |
| Scanner type | Flatbed scanner |
| Product colour | Black |
| Performance | |
| Sensor type | CMOS CIS |
| Paper handling | |
| Maximum ISO A-series paper size | A6 |
| Ports & interfaces | |
| USB port | Yes |
| Socket connector type | C7 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Power | |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 0.3 W |
| Input voltage | 100 - 240 V |
| Power supply type | AC |
| Power consumption (sleep) | 2 W |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 234 mm |
| Height | 40 mm |
| Weight | 900 g |
| Package depth | 330 mm |
| Package weight | 2 kg |
| Package width | 255 mm |
| Package height | 149 mm |
| Packaging data | |
| Package depth | 330 mm |
| Package weight | 2 kg |
| Package width | 255 mm |
| Package height | 149 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC, USB |
| AC adapter included | Yes |
| Packaging content | AC cable, AC adapter, USB cable, USB bus power cable, Setup DVD-ROM |
| Technical details | |
| Pallet gross width | 104 cm |
| Pallet gross length | 104 cm |
| Scanner type | Flatbed scanner |
| Country of origin | Japan |
| Product colour | Black |
| Harmonized System (HS) code | 8471607000 |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Features | |
| Country of origin | Japan |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Scanner type | Flatbed scanner |
| Country of origin | Japan |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Japan |
| Quantity per pack | 1 pc(s) |
| Pallet gross width | 104 cm |
| Pallet gross length | 104 cm |
| Harmonized System (HS) code | 8471607000 |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Products per pallet (sea) | 144 pc(s) |
| Products per pallet (air) | 108 pc(s) |
| Polystyrene (EPS/EPP) packaging weight | 200 g |
| Pallet height (sea) | 186 cm |
| Pallet height (air) | 144 cm |
| Foil packaging weight | 15 g |
| Glass packaging weight | 0 g |
| Cardboard packaging weight | 1.2 kg |
