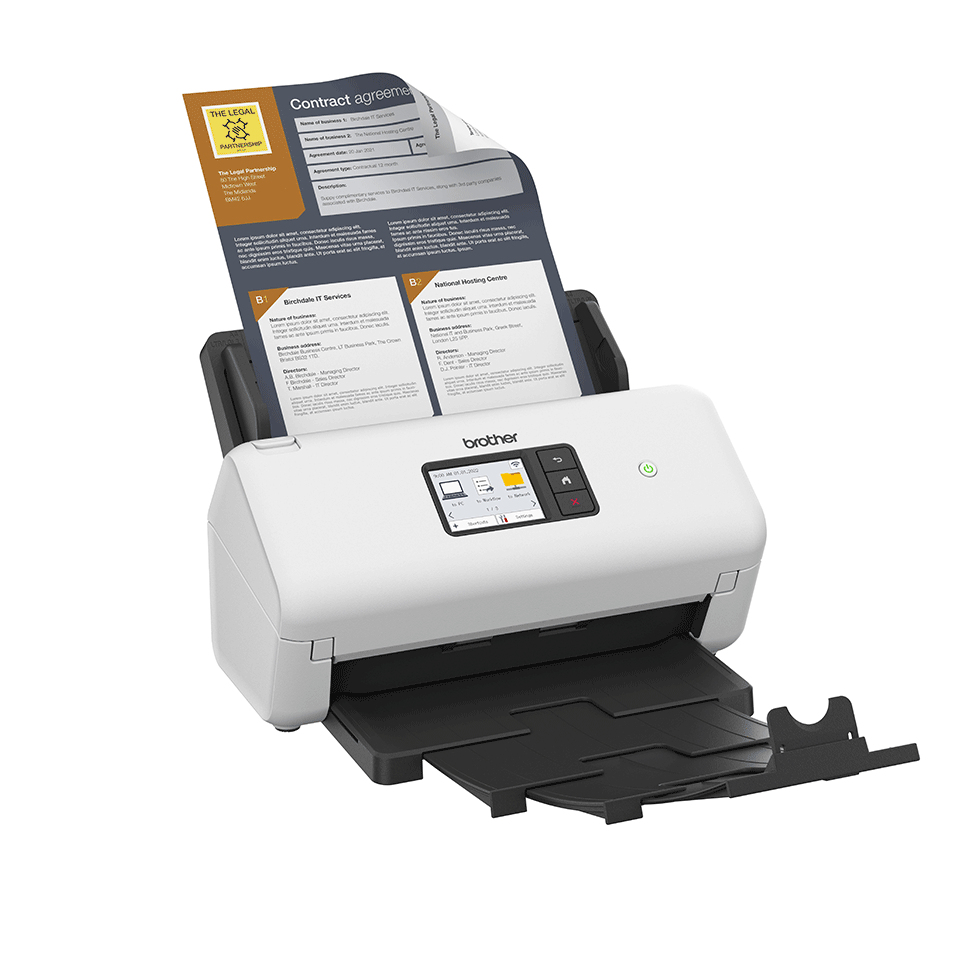

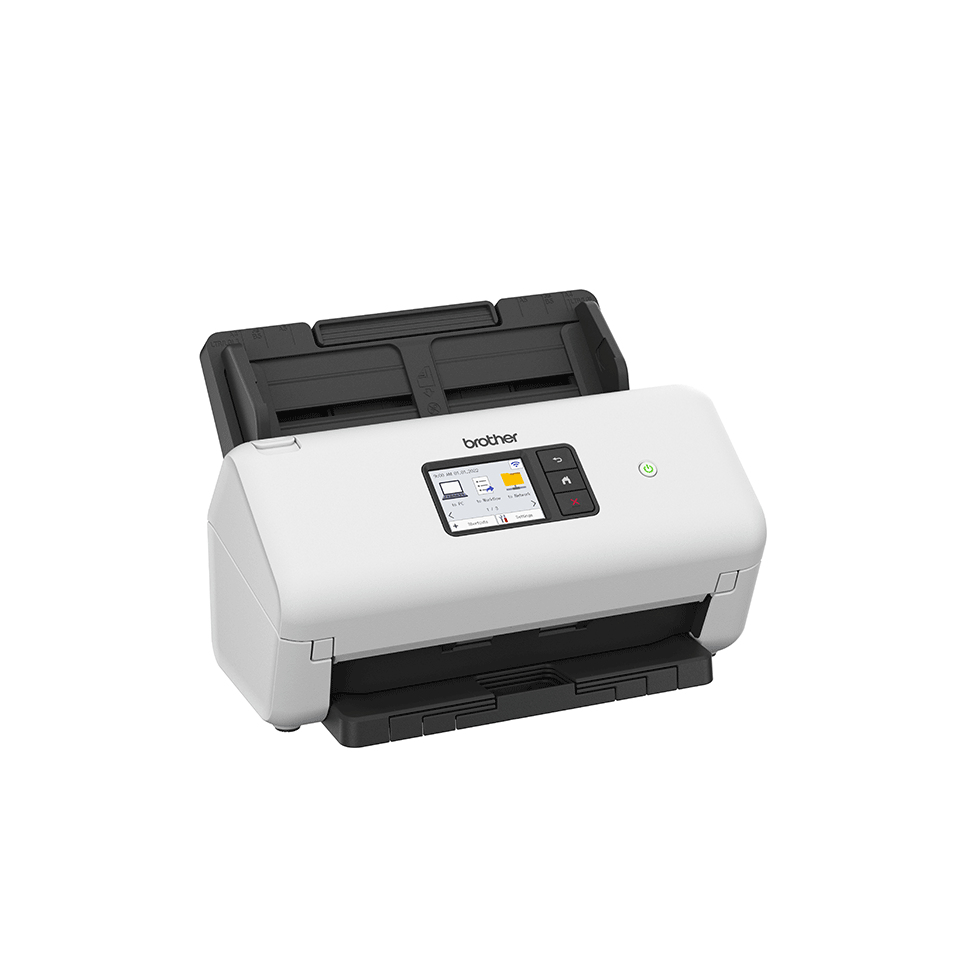

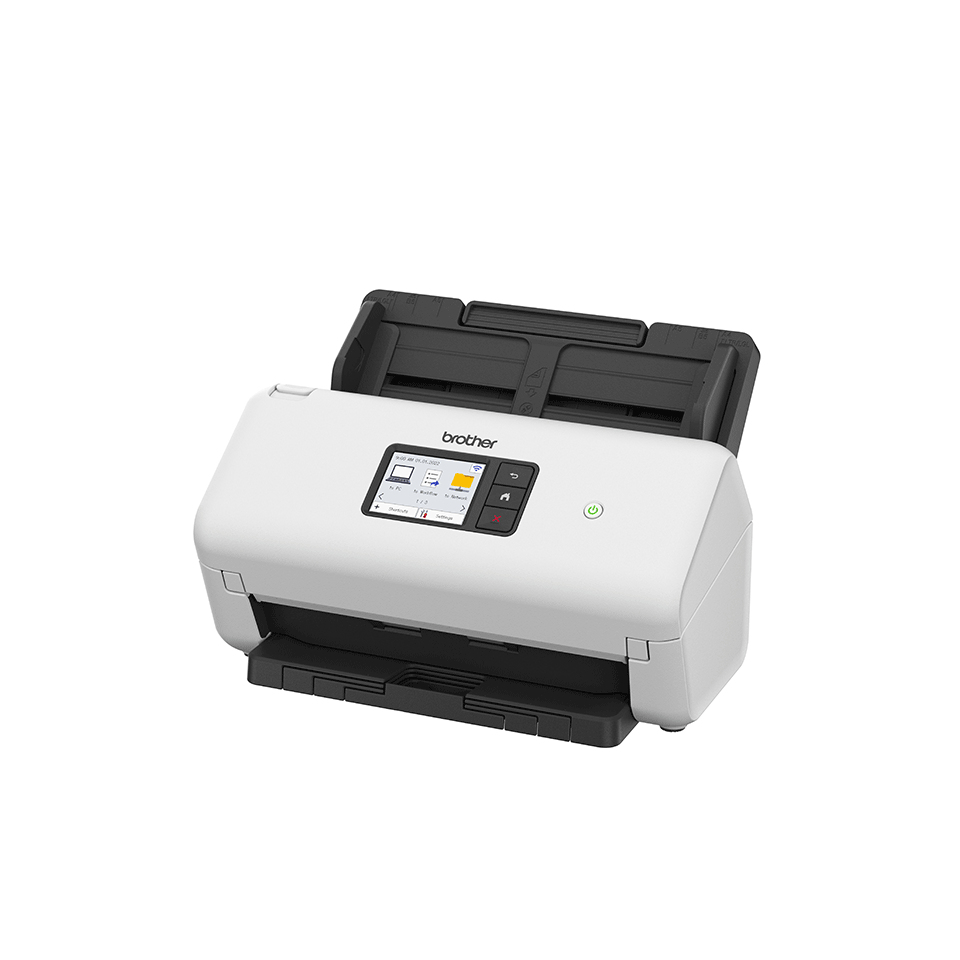

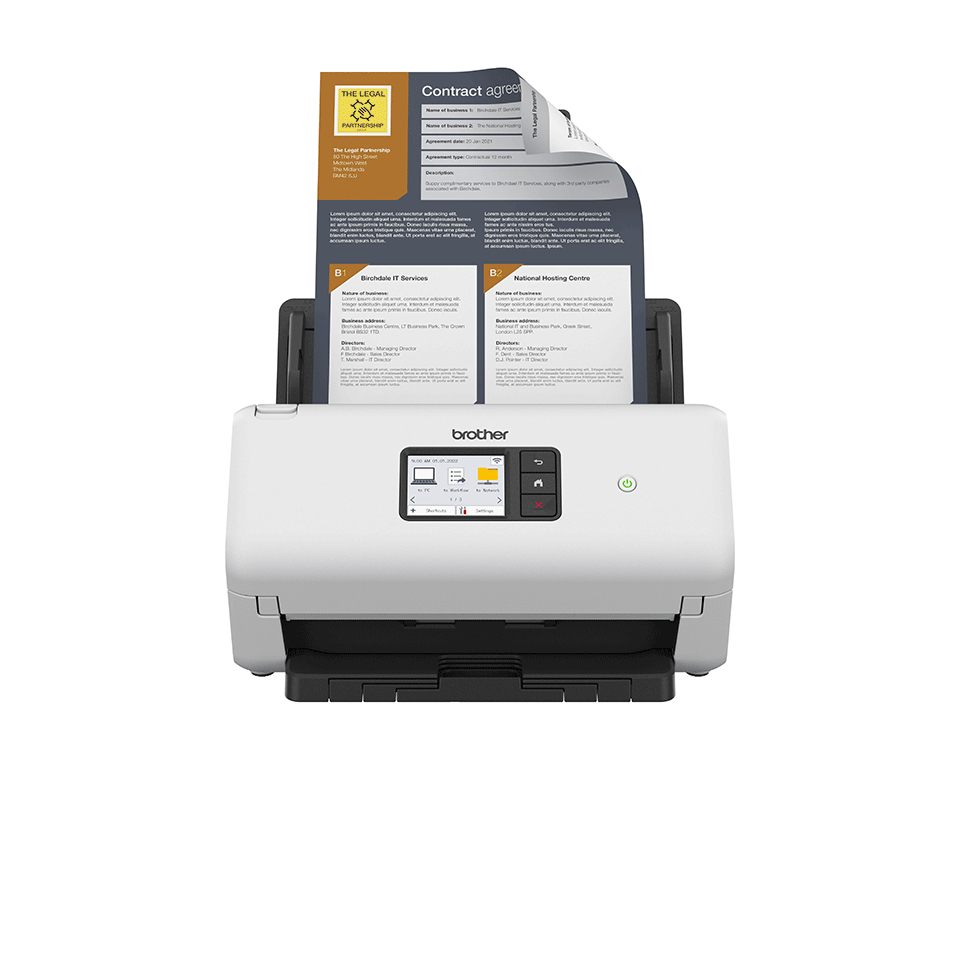

EU Product - Ads-4550W Dokumentenscanner - Document Scanners - A4
Introduction
Fast, wired and wireless desktop document scanner
Simple and intuitive, offering a user-friendly touch screen combined with the option of wired and wireless connectivity. The ideal choice for shared use in an office or at home.
Specifications
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 35 ppm |
| ADF scan speed (colour, A4) | 35 ppm |
| Duplex ADF scan speed (b/w, A4) | 70 ipm |
| Duplex ADF scan speed (colour, A4) | 70 ipm |
| Sensor type | Dual CIS |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 5250 pages |
| Scan to | E-mail Server, FTP, Image, Network folder, PC, SMB, USB |
| Design | |
| Built-in display | Yes |
| Touchscreen | Yes |
| Scanner type | ADF scanner |
| Display diagonal | 7.11 cm (2.8") |
| Product colour | Black, White |
| Colour display | Yes |
| Control type | Buttons, Touch |
| Performance | |
| Sensor type | Dual CIS |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 5250 pages |
| Scan to | E-mail Server, FTP, Image, Network folder, PC, SMB, USB |
| Scan drivers | SANE, TWAIN, WIA |
| Maximum duty cycle | 105000 pages per month |
| Sound pressure level (max) | 59 dB |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 60 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| Auto Document Feeder (ADF) media weight | 40 - 200 g/m² |
| ISO A-series sizes (A0...A9) | A3, A4 |
| Long-paper mode | Yes |
| Card thickness (max) | 1.32 mm |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Mobile printing technologies | Apple AirPrint, Brother Mobile Connect |
| Security algorithms | 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi Direct | Yes |
| Supported network protocols (IPv4) | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services (Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client |
| IPv6 support | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Scan drivers | SANE, TWAIN, WIA |
| Power | |
| Auto power off | Yes |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 2.3 W |
| Power consumption (off) | 0.1 W |
| Input voltage | 100 - 240 V |
| Power supply type | DC |
| Power consumption (sleep) | 1.7 W |
| Output voltage | 24 V |
| Output current | 1.9 A |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 630 mm |
| Height | 290 mm |
| Weight | 2.7 kg |
| Folded width | 30 cm |
| Folded depth | 15.4 cm |
| Folded height | 15.8 cm |
| Package depth | 243 mm |
| Package weight | 4.5 kg |
| Package width | 391 mm |
| Package height | 320 mm |
| Packaging data | |
| Package depth | 243 mm |
| Package weight | 4.5 kg |
| Package width | 391 mm |
| Package height | 320 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB |
| ADF paper chute | Yes |
| AC adapter included | Yes |
| Warranty card | Yes |
| Display | |
| Touchscreen | Yes |
| Display diagonal | 7.11 cm (2.8") |
| Media formats | |
| ISO A-series sizes (A0...A9) | A3, A4 |
| Security | |
| Cable lock slot | Yes |
| Technical details | |
| Mobile printing technologies | Apple AirPrint, Brother Mobile Connect |
| Security algorithms | 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS |
| Product dimensions when closed (WxDxH) | 300 x 216 x 191 mm |
| Maximum media length | 5 m |
| Custom media width | 50.8 - 215.9 mm |
| Scanner type | ADF scanner |
| Maximum scan resolution | 1200 x 1200 DPI |
| Maximum duty cycle | 105000 pages per month |
| Product colour | Black, White |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Compliance certificates | GS mark, RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| Product dimensions when closed (WxDxH) | 300 x 216 x 191 mm |
| Maximum media length | 5 m |
| Custom media width | 50.8 - 215.9 mm |
| Cable lock slot | Yes |
| Maximum scan resolution | 1200 x 1200 DPI |
| Compliance certificates | GS mark, RoHS |
| Mobile printing technologies | Apple AirPrint, Brother Mobile Connect |
| Security algorithms | 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Scanner type | ADF scanner |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
