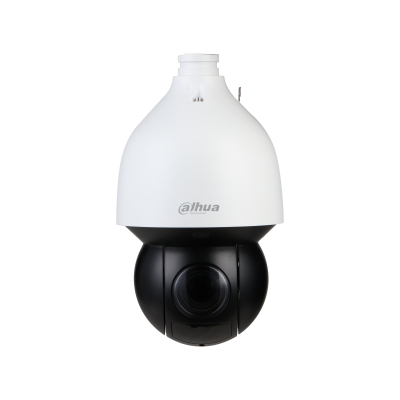

4MP 25x Starlight IR WizSense Network PTZ Camera
Introduction
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
System Overview
Unique and elegant, the black semicircular sphere discreetly monitorsfrom a distance without drawing undue attention to itself. It has a powerful optical zoom, and accurate pan, tilt and zoom capabilities, providing an all in-one solution for long distance video surveillance of outdoor scenes. Together with infrared illumination and Starlight Technology, the camera is a great solution for dark, low light conditions. The series combines a day and night mechanical IR cut filter to produce high quality images in variable lighting conditions during the day, and True WDR for locations with direct sunlight and glare.
Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.
PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience?
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, face mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
Protection (IP67, TVS 6000 V)
IP67, TVS 6000 V lightning proof, surge protection, and voltage transient protection.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Specifications
| Performance | |
|---|---|
| PTZ modes | 8 Tour, Preset point |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: 15 B,ANSI C63.4- 2014 |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Housing material | Metal |
| Camera | |
| Pan preset speed | 400 °/sec |
| Minimum illumination | 0 lx |
| Tilt angle range | -15 - 90° |
| Tilt speed | 200 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 300 °/sec |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 59.8° |
| Lens viewing angle, vertical | 33.7° |
| Lens viewing angle, diagonal | 63.3° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4 |
| Detect distance | 1724 m |
| Observe distance | 689 m |
| Recognize distance | 344 m |
| Identify distance | 172 m |
| Closest focusing distance | 0.1 m |
| Minimum aperture number | 1.6 |
| Focus | Motorized/Manual |
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Focal length range | 5.8 - 145 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 150 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32- 8192Kbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Audio | |
| Voice codecs | G.711Mu, G.711a, G.722.1, G.723, G.726, G.729 |
| Audio formats supported | AAC, PCM |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Storage | |
| ROM capacity | 4000 MB |
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 1024 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Intrusion, Missing object, Scene change, Tripwire |
| Video motion detection | Yes |
| Management features | |
| Web browser | Yes |
| Web-based management | Yes |
| Power | |
| Power source type | AC, PoE |
| Power consumption (max) | 20 W |
| AC input voltage | 24 V |
| Certificates | |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: 15 B,ANSI C63.4- 2014 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 332 mm |
| Diameter | 19 cm |
| Weight | 4.7 kg |
| Package weight | 8 kg |
| Packaging data | |
| Package weight | 8 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Focus | Motorized/Manual |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
