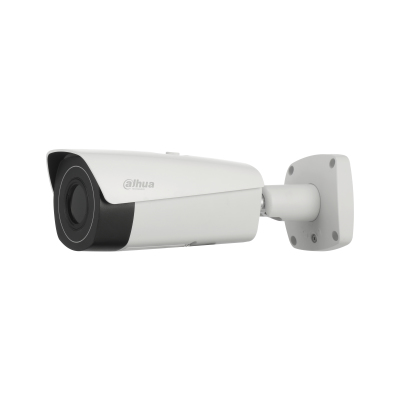

DHI-TPC-BF5401-B25-BM-S2
Introduction
Featuring a fixed lens bullet camera, this series provides an all-in-one solution that is especially beneficial for long distance video surveillance in outdoor applications. Together with Thermal technology, the camera’s long range capabilities are able to be utilized even at night.
Uncooled Vox Technology
Dahua thermal cameras use uncooled Vox sensor technology. Their small size and better performance make them a cost-effective solution for thermal security.
High Sensitivity
High thermal sensitivity (<40mK) allows cameras to capture more image details and temperature difference information.
Fire Detection & Alarm With
built-in fire detection functionality, the camera has the ability to detect fires from long range. Because thermal cameras are sensitive to temperature, they provide higher fire detection accuracy than standard cameras, making them particularly fit for applications such as forest fire prevention.
Intelligent Video System (IVS)
IVS is a built-in video analytics algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area.
Environmental
With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
Protection
The camera allows for ±15% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
| Thermal sensitivity (NETD) | 40 mK |
| Thermal module | Yes |
| Design | |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP67 |
| Camera | |
| Field of view (FOV) angle (thermal module) | 15.5 x 11.6° |
| Image sensor | |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effective sensor resolution (thermal module) | 400 x 300 pixels |
| Lens system | |
| Number of lenses | 1 |
| Fixed focal length (thermal module) | 25 mm |
| Aperture number (thermal module) | 1 |
| Video | |
| Bit rate | 640 ~ 8192 |
| Video compression formats | H.264, H.265 |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 |
| Network | |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Storage | |
| Maximum memory card size | 256 GB |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Fire detection | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 13 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 103 mm |
| Depth | 291 mm |
| Height | 97 mm |
| Weight | 1.5 kg |
| Package weight | 1.9 kg |
| Packaging data | |
| Package weight | 1.9 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265 |
