IP Villa Door Station
Introduction

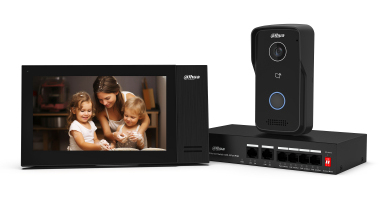

IP Video Intercom KIT
Specifications
| Technical details | |
|---|---|
| International Protection (IP) code | IP65 |
| Door station control | Yes |
| Wall mountable | Yes |
| Voice codecs | G.711a, G.711u, PCM |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Memory card slot | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 8 GB |
| Display diagonal | 17.8 cm (7") |
| Speakerphone | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 1 |
| Certification | CE; FCC |
| Connectivity technology | Wired |
| Display | |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display diagonal | 17.8 cm (7") |
| Wide Dynamic Range (WDR) | Yes |
| Camera | |
| Viewing angle, vertical | 60° |
| Viewing angle, horizontal | 107° |
| Megapixel (approx.) | 2 MP |
| Maximum frame rate | 30 fps |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Supported video modes | 720p, 1080p |
| Viewing angle, diagonal | 122° |
| Day/night mode | Yes |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Audio | |
| Voice codecs | G.711a, G.711u, PCM |
| Built-in speaker(s) | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Storage | |
| Memory card slot | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 8 GB |
| Indoor unit | |
| RS-485 ports | 1 |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 6 |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Software | |
| Operating system installed | Embedded LINUX |
| Power | |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 5 W |
| Indoor unit power type | DC/PoE |
| Outdoor unit power type | DC/PoE |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Indoor unit included | Yes |
| Outdoor unit included | Yes |
