Security Camera Tester
Introduction
System Overview

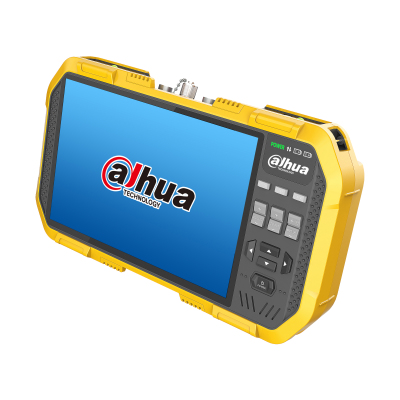

Powered by Linux system, the Integrated Mount Tester is a highly
accurate test tool that aids in on-the-spot installation and maintenance
of video surveillance devices. It boasts a 7-in touchscreen that is easy to
use and comfortable to the touch. It supports a host of features needed
in modern security construction projects, such as IPC, HDCVI, AHD, TVI,
and CVBS monitor video display, HDMI input and output, TDR network
cable test, Wi-Fi signal testing, digital multimeter, and optical power
meter test functions.
Specifications
| Display | |
|---|---|
| Display | TFT |
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Video | |
| PTZ control | Yes |
| Ethernet LAN features | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Product colour | Black, Yellow |
| Power | |
| Power source type | DC |
| Battery technology | Lithium-Ion (Li-Ion) |
| Charging time | 4 h |
| Weight & dimensions | |
| Width | 235 mm |
| Depth | 45 mm |
| Height | 135 mm |
| Weight | 930 g |
