Introduction

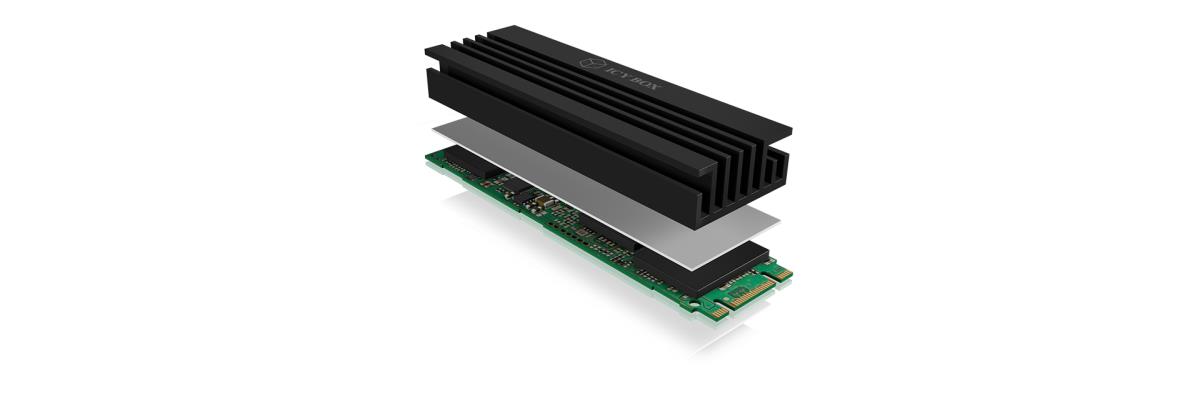

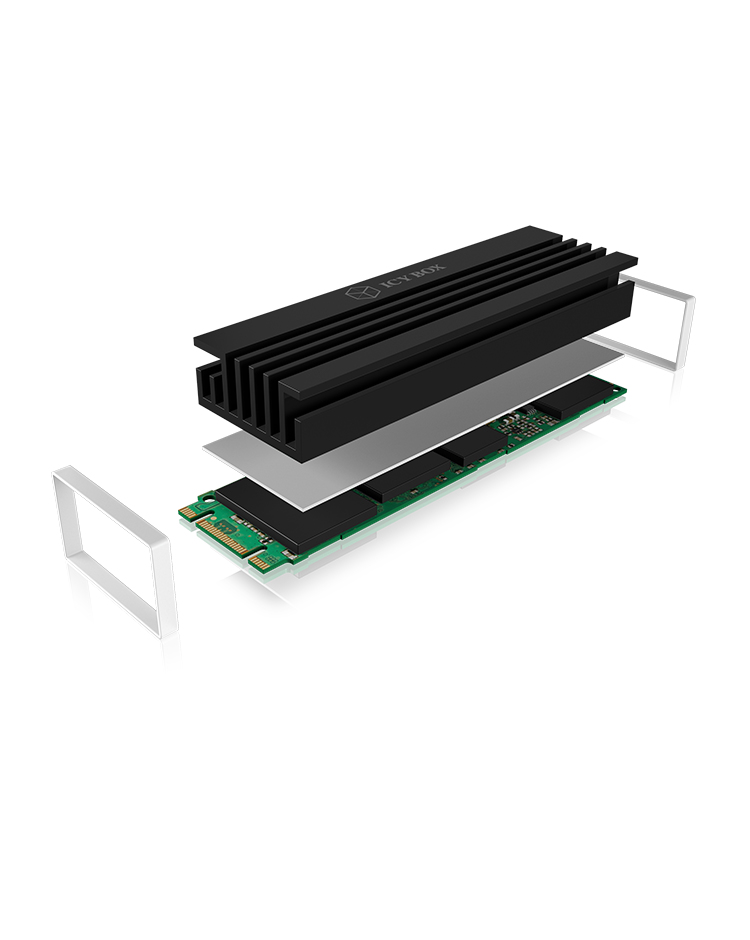

Silicone rings
Because of the little silicone rings the cooling plates can be fixed on the M.2 SSD. you can remove the cooling plates any time.

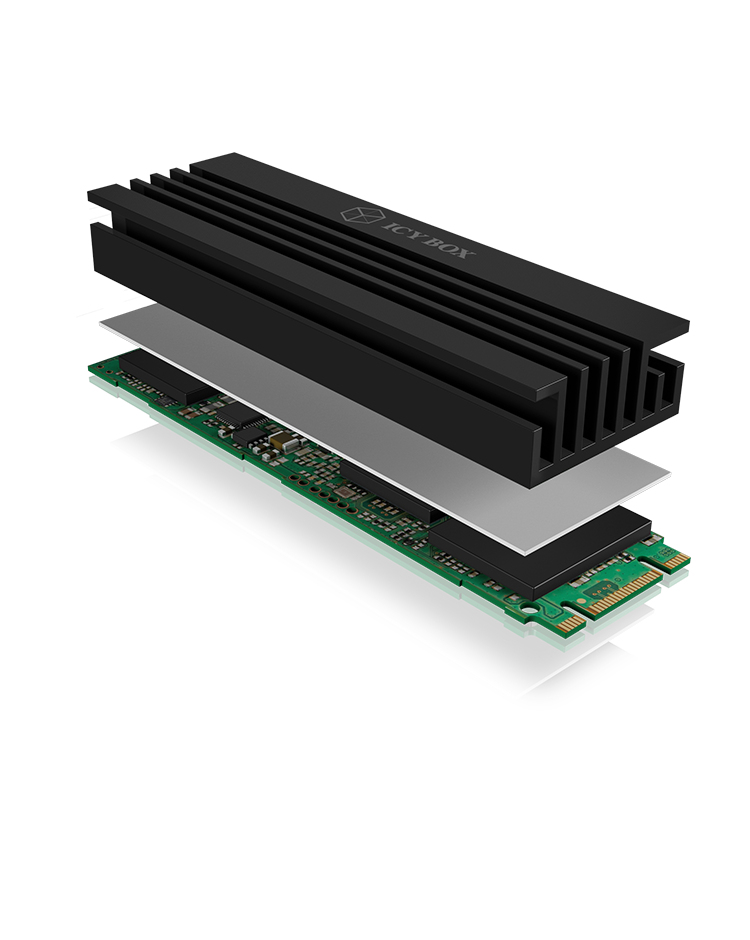

Thermal pads
Thermal plates are just as heat-conduction paste a medium to optimate the derivation of the heat loss of electronic components.

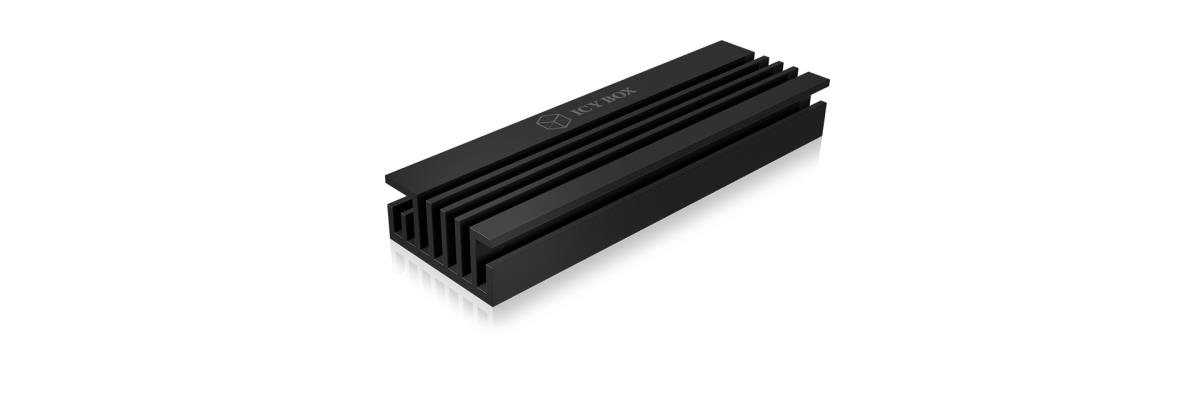

Cooling plates
The thermal aluminium fins extend the surface to make sure that more heat can be given off to the surrounding area to optimate the performance once again.
Specifications
| Performance | |
|---|---|
| Suitable location | Solid-state drive |
| Type | Heatsink/Radiator |
| Operating temperature (T-T) | -20 - 180 °C |
| Fan diameter | No |
| Quantity per pack | 1 pc(s) |
| Thermal conductivity | 1.5 W/m·K |
| Design | |
| Material | Aluminium, Silicone |
| Product colour | Black |
| Technical details | |
| Type | Heatsink/Radiator |
| Fan diameter | No |
| Material | Aluminium, Silicone |
| Compliance certificates | CE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 180 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 27 mm |
| Package width | 102 mm |
| Package height | 88 mm |
| Width | 22 mm |
| Package weight | 83 g |
| Depth | 70 mm |
| Height | 10 mm |
| Weight | 18 g |
| Packaging data | |
| Package depth | 27 mm |
| Package width | 102 mm |
| Package height | 88 mm |
| Package weight | 83 g |
| Packaging content | |
| Thermal pad included | Yes |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Master (outer) case gross weight | 6.3 kg |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 220 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 265 mm |
| Harmonized System (HS) code | 84733080 |
