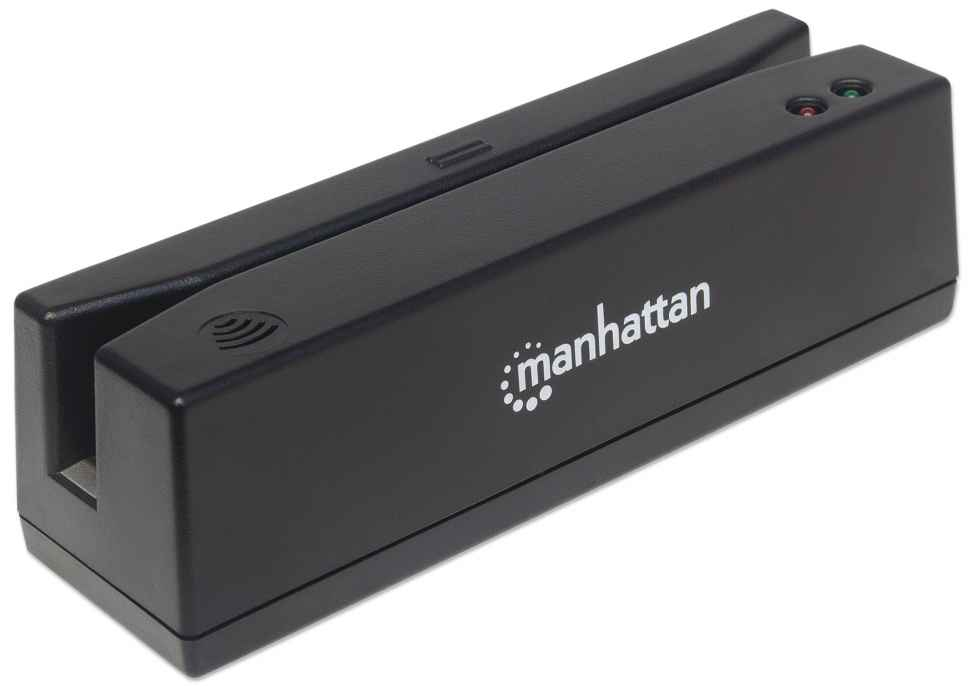

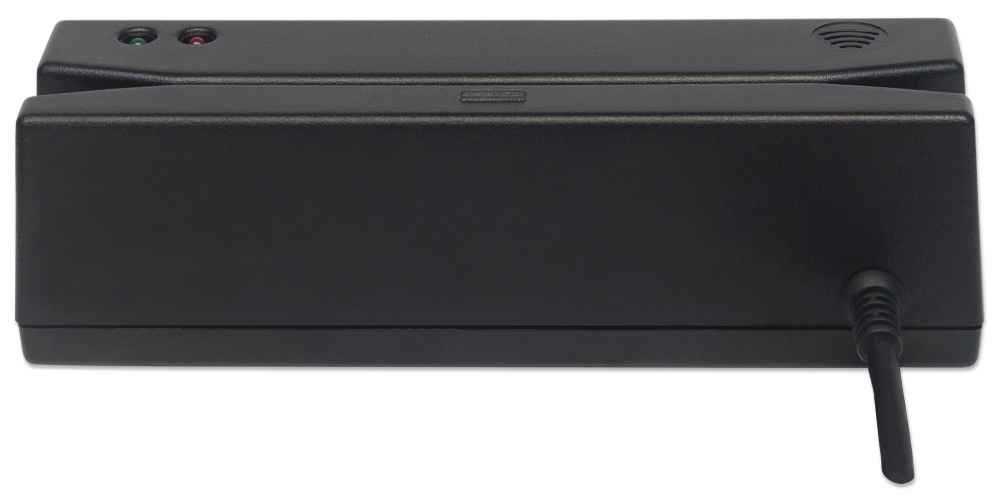

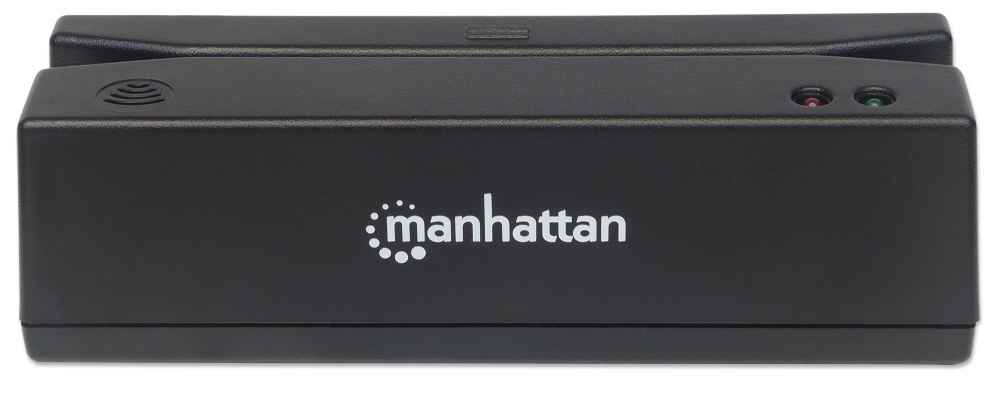

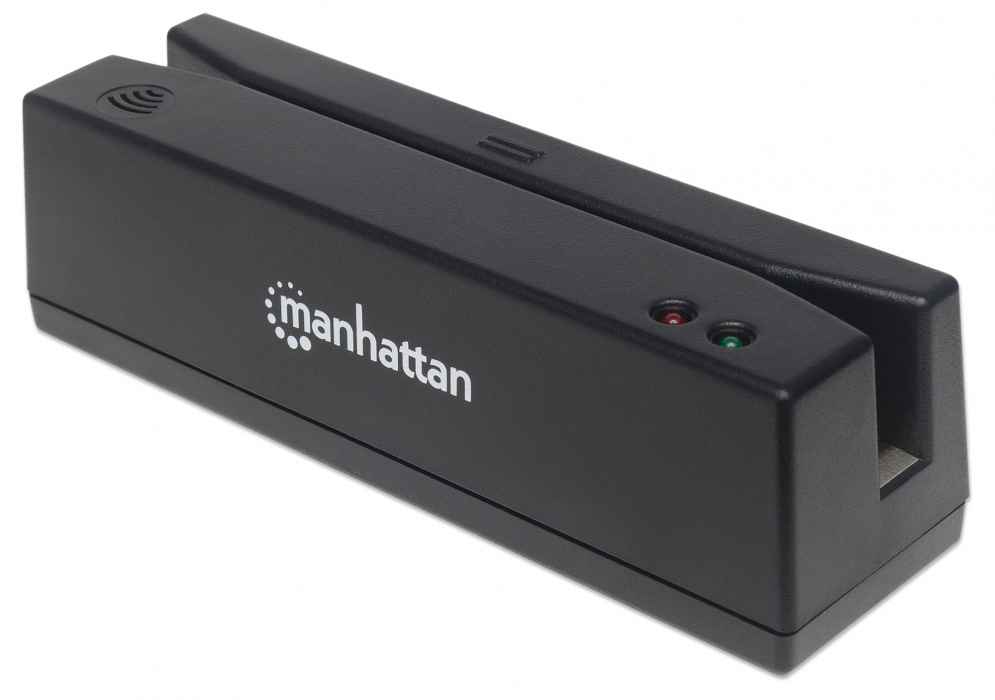

USB-A MAGNETIC STRIP CARD READR
Introduction
Swipe with speed, accuracy and reliability._x000D_
Manhattan Magnetic Stripe Card Readers deliver high-quality data collection for a wide range of applications to help improve routine sales transactions and secured information exchanges. The standard-length slot reads high- and low-coercive strips and provides maximum stability and contact for accurate, bi-directional reads of up to three tracks of magnetic strip data. Tone and LED indicators confirm and signal valid data collection. Ideal for multiple uses, including retail point-of-sale and self-service transactions and access control applications, Manhattan Magnetic Stripe Card Readers are easy to implement and simple to use. A built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it were manually typed or directly keyed into the computer. Quick installation through any USB port integrates with most PCs without an external power supply or complicated programming.
Specifications
| Features | |
|---|---|
| Scan speed (min) | 100 mm/sec |
| Scan speed (max) | 1000 mm/sec |
| LED indicators | Yes |
| Interface | USB |
| Product colour | Black |
| Certification | FCC CE ISO 7810-7813 JISII |
| Cable length | 1.5 m |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Technical details | |
| Scan speed (min) | 100 mm/sec |
| Scan speed (max) | 1000 mm/sec |
| Interface | USB |
| Harmonized System (HS) code | 84719000 |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Power | |
| Power consumption | 130 mA |
| Operating voltage | 5 V |
| Weight & dimensions | |
| Width | 43 mm |
| Depth | 150 mm |
| Height | 43 mm |
| Weight | 390 g |
| Ports & interfaces | |
| Cable length | 1.5 m |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC CE ISO 7810-7813 JISII |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
