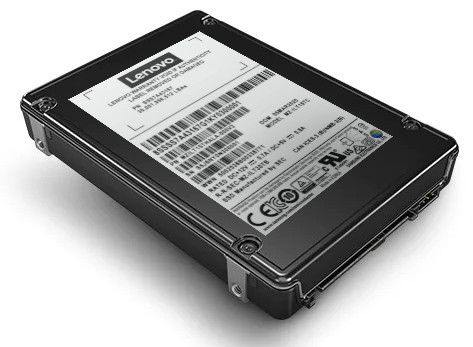

EU Product - - ThinkSystem PM1653 - SSD - Read Intensive - verschlüsselt - 7.68 TB - Hot-Swap - 2.5" (6.4 cm) SAS 22.5Gb/s Self-Encrypting Drive (SED) TCG Enterprise
Introduction
The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the PM1653 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the PM1653 SSDs and consider their use in IT solutions.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 7.68 TB |
| Memory type | V-NAND TLC |
| Data transmission | |
| Random write (4KB) | 110000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Data transfer rate | 24 Gbit/s |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | SAS |
| Component for | Server/workstation |
| NVMe | No |
| SSD capacity | 7.68 TB |
| S.M.A.R.T. support | Yes |
| Memory type | V-NAND TLC |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 110000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Data transfer rate | 24 Gbit/s |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| SSD form factor | 2.5" |
| Random latency - read (up to) | 120 µs |
| Random latency - write (up to) | 45 µs |
| Drive writes per day (DWPD) | 1 |
| Power | |
| Power consumption (write) | 14.7 W |
| Power consumption (read) | 11.5 W |
| Certificates | |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Performance | |
| Interface | SAS |
| Component for | Server/workstation |
| NVMe | No |
| SSD capacity | 7.68 TB |
| S.M.A.R.T. support | Yes |
| Memory type | V-NAND TLC |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 110000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Data transfer rate | 24 Gbit/s |
| Design | |
| Component for | Server/workstation |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 160 g |
| Height | 15 mm |
| Depth | 100 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Maximum operating altitude | 4572 m |
| Technical details | |
| Interface | SAS |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Maximum operating altitude | 4572 m |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
