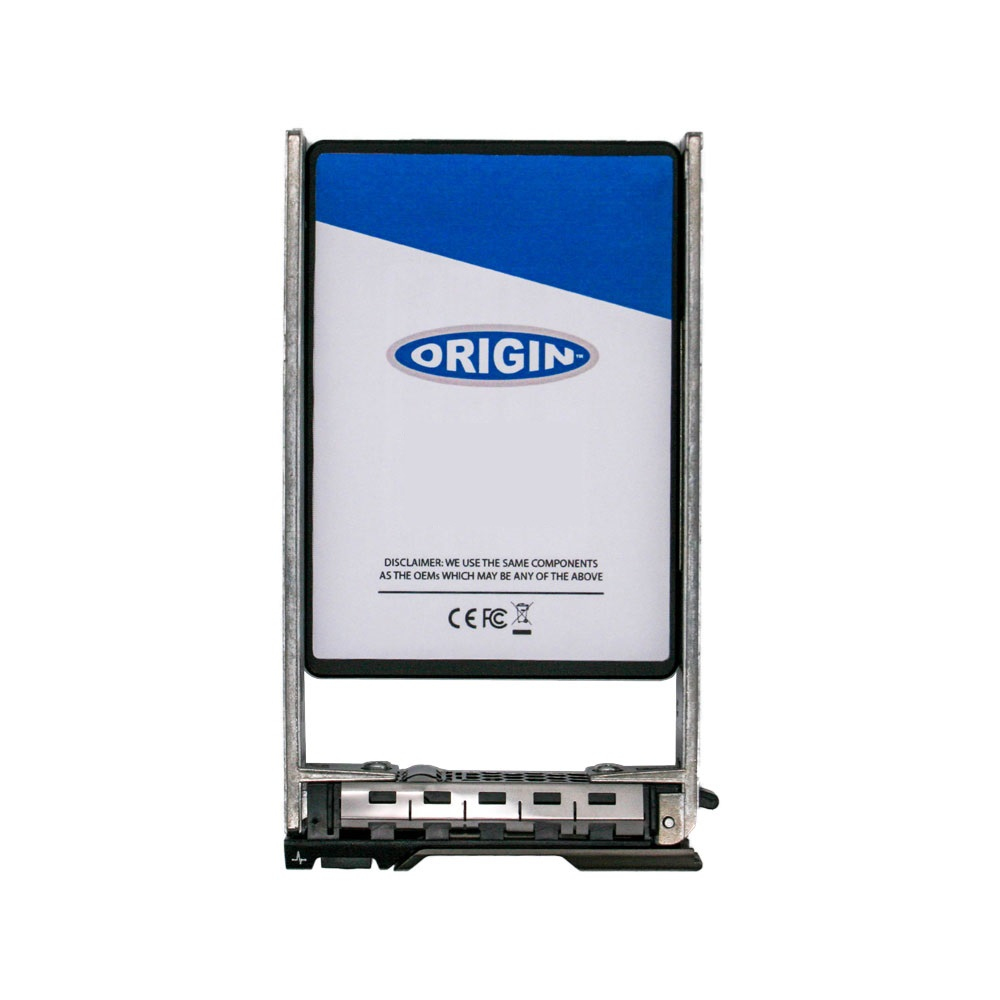

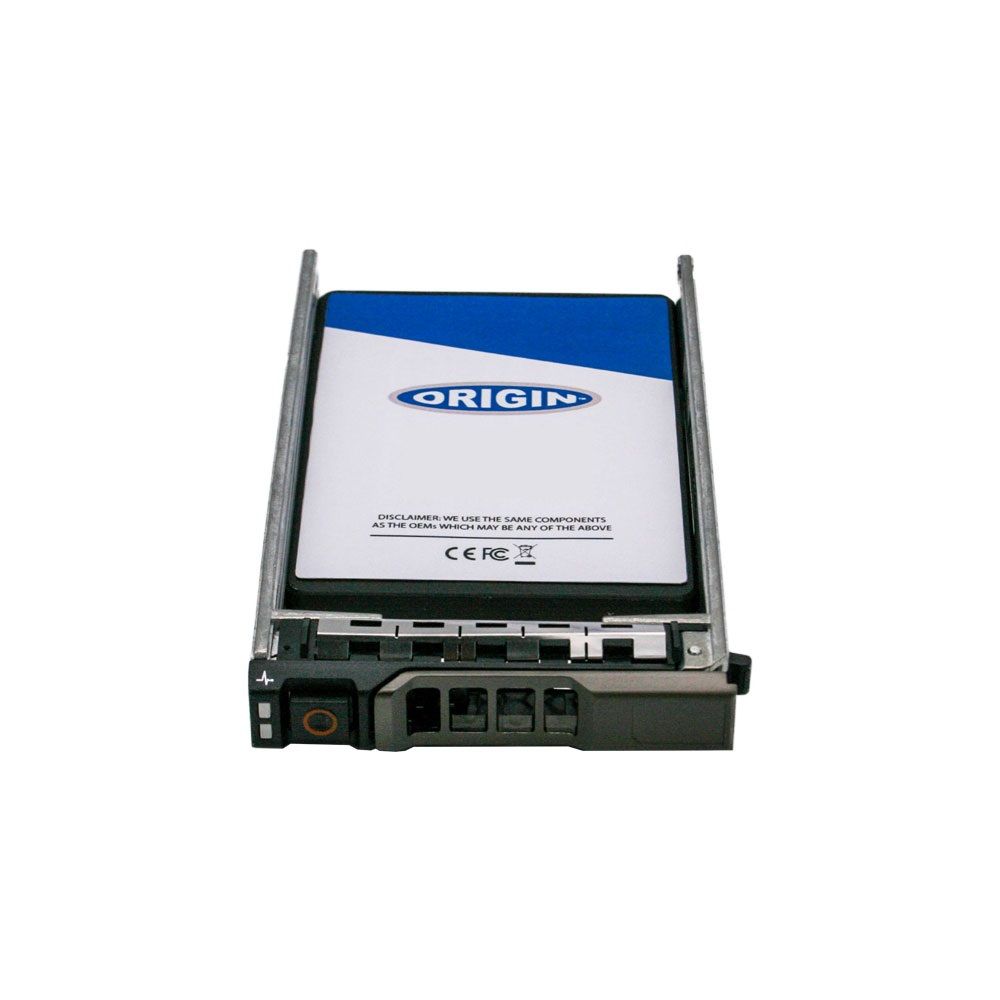

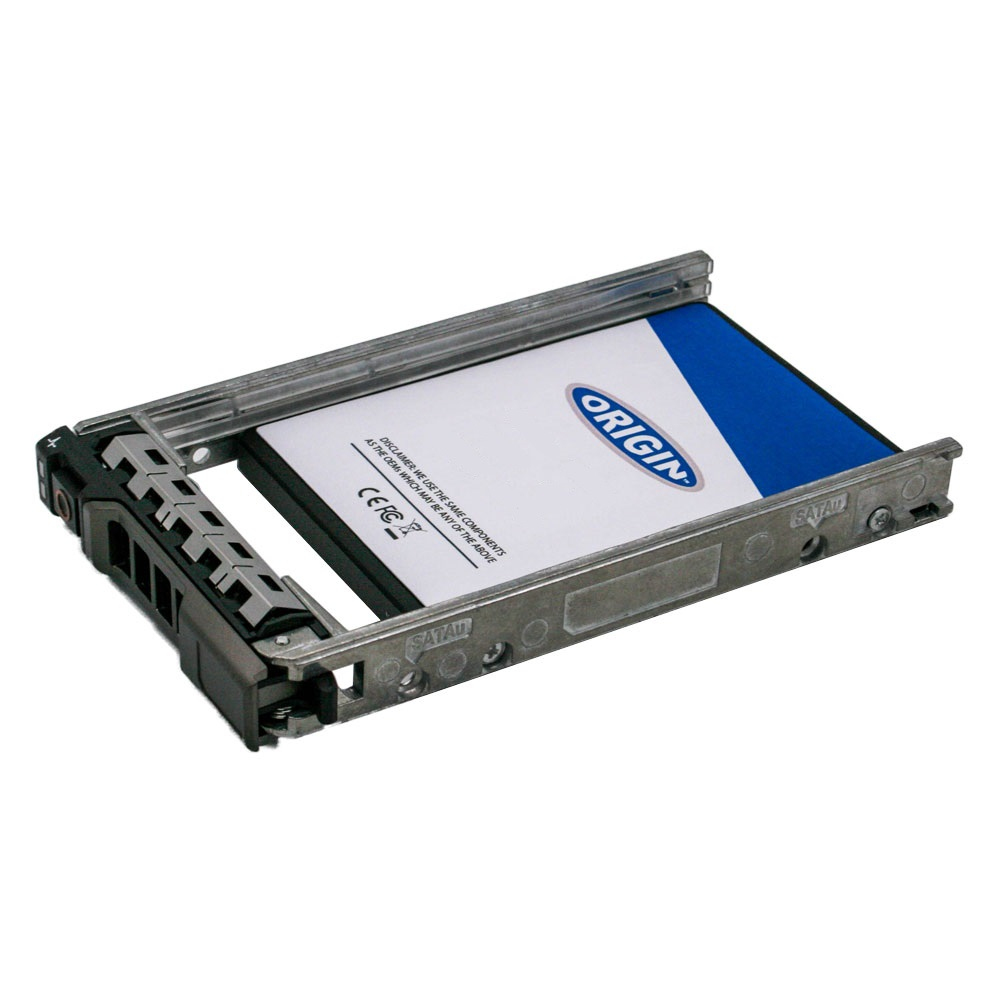

SSD 2TB 2.5in SATA 3D QLC in Hot Swap Caddy
Introduction
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 2 TB |
| Memory type | MLC |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Interface | Serial ATA |
| Component for | Server/workstation |
| Controller type | Samsung MHX |
| NVMe | No |
| NAND flash type | MLC (Multi Level Cell) |
| Opal SSC 2.0 | Yes |
| IEEE 1667 | Yes |
| DevSlp (device sleep) support | Yes |
| Active garbage collection | Yes |
| Hot-swap | No |
| SSD capacity | 2 TB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 550 MB/s |
| TRIM support | Yes |
| RAID support | Yes |
| Write speed | 520 MB/s |
| Memory type | MLC |
| Random write (4KB) | 90000 IOPS |
| Random read (4KB) | 100000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Compatible products | Dell Server |
| Data transmission | |
| Read speed | 550 MB/s |
| Write speed | 520 MB/s |
| Random write (4KB) | 90000 IOPS |
| Random read (4KB) | 100000 IOPS |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 1500000 h |
| Features | |
| Interface | Serial ATA |
| Component for | Server/workstation |
| Controller type | Samsung MHX |
| NVMe | No |
| NAND flash type | MLC (Multi Level Cell) |
| Opal SSC 2.0 | Yes |
| IEEE 1667 | Yes |
| DevSlp (device sleep) support | Yes |
| Active garbage collection | Yes |
| Hot-swap | No |
| SSD capacity | 2 TB |
| Windows operating systems supported | Yes |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 550 MB/s |
| TRIM support | Yes |
| RAID support | Yes |
| Write speed | 520 MB/s |
| Linux operating systems supported | Yes |
| Memory type | MLC |
| Random write (4KB) | 90000 IOPS |
| Random read (4KB) | 100000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| Compatible products | Dell Server |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (average) | 3.5 W |
| Power consumption (max) | 5.8 W |
| Power consumption (idle) | 0.06 W |
| Operating voltage | 5 V |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 69.8 mm |
| Weight | 66 g |
| Height | 7 mm |
| Depth | 100.5 mm |
| Packaging data | |
| Storage drive adapter included | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Technical details | |
| Interface | Serial ATA |
| Hot-swap | No |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| RAID support | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Hardware encryption | No |
| SSD form factor | 2.5" |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Compatible products | Dell Server |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Packaging content | |
| Storage drive adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
