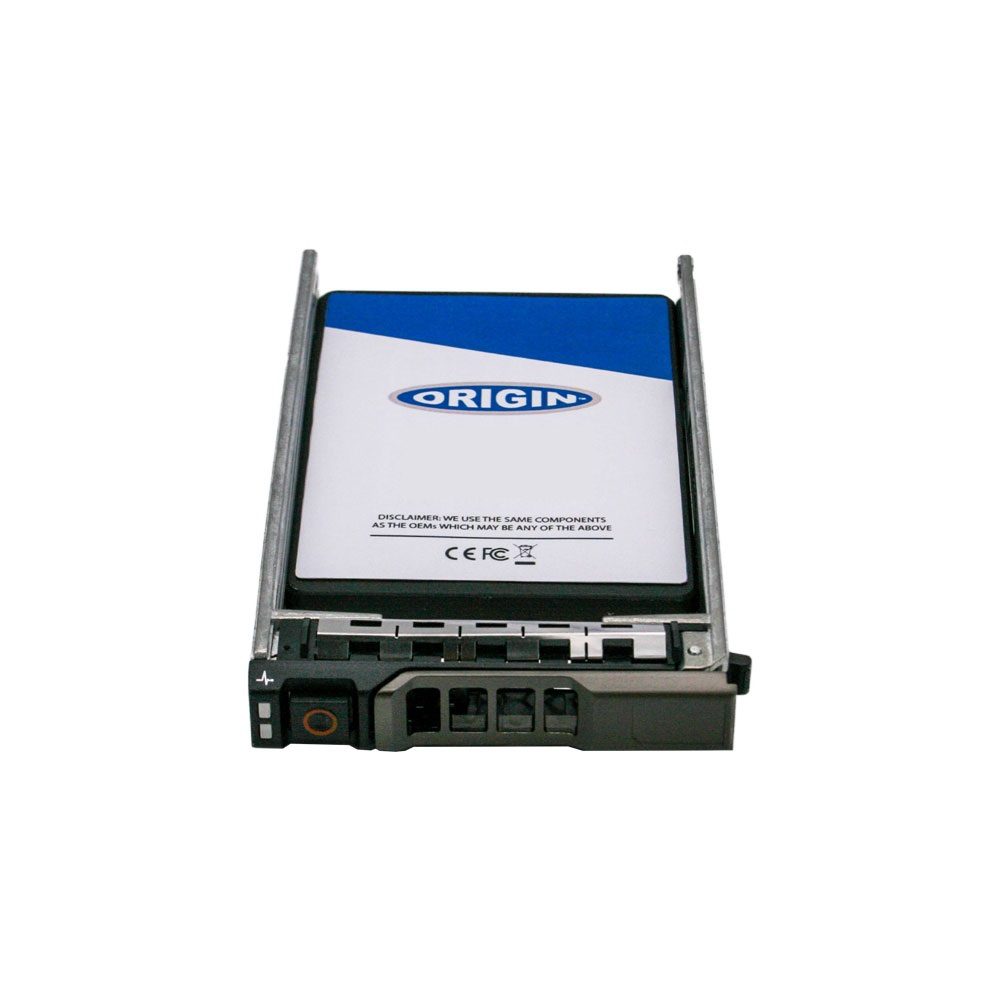

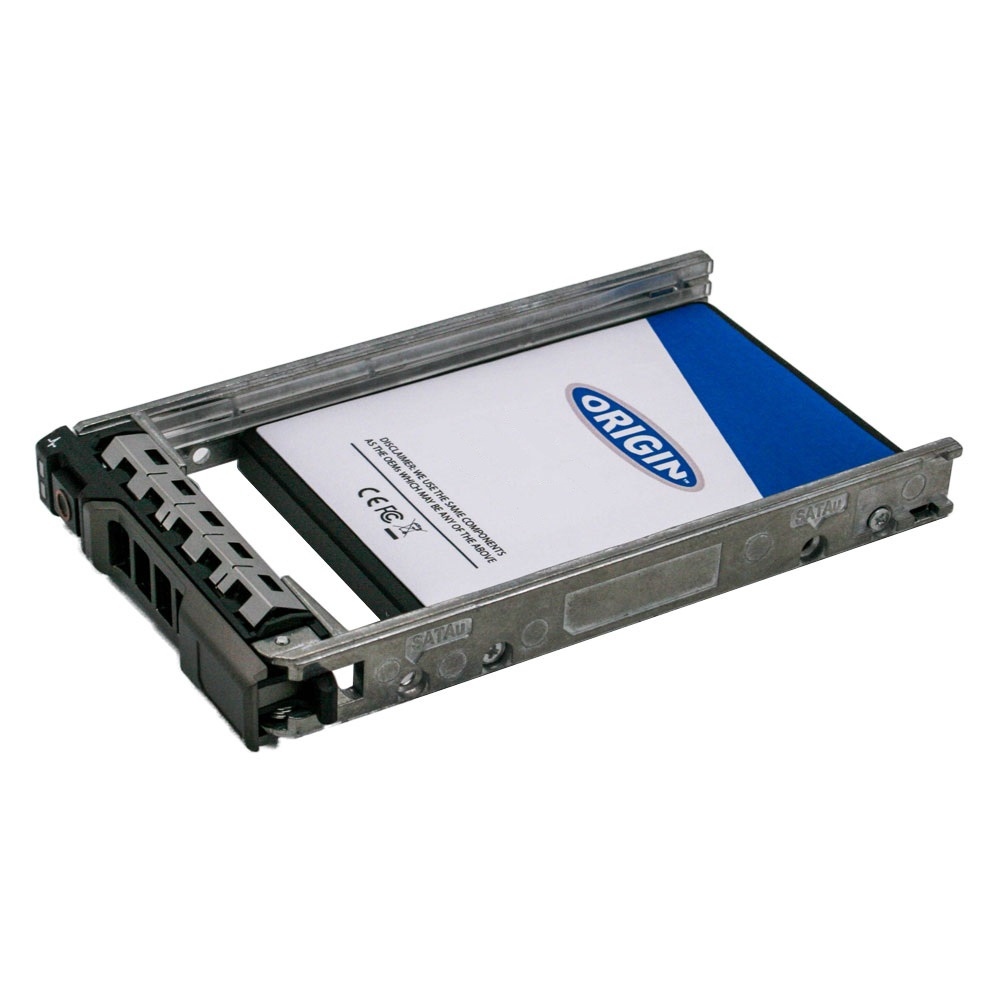

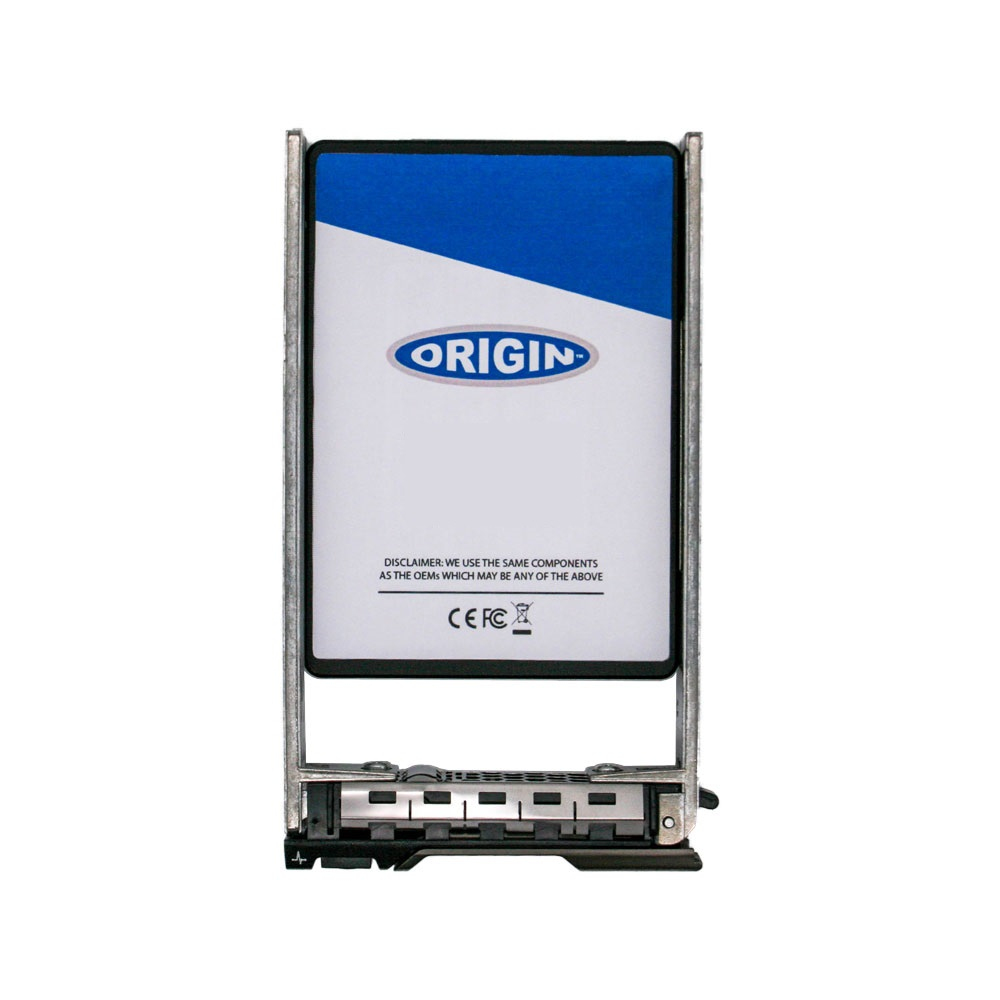

SSD 240GB 2.5in SATA 1DWPD in Hot Swap Caddy
Introduction
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 240 GB |
| Memory type | eMLC |
| Internal | Yes |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Interface | Serial ATA |
| Component for | Server/workstation |
| NVMe | No |
| NAND flash type | MLC (Multi Level Cell) |
| Hot-swap | Yes |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 520 MB/s |
| TRIM support | Yes |
| RAID support | Yes |
| Write speed | 400 MB/s |
| Memory type | eMLC |
| Random write (4KB) | 9000 IOPS |
| Random read (4KB) | 86000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 130 µs |
| Read latency | 130 µs |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Compatible products | Dell Server |
| Data transmission | |
| Read speed | 520 MB/s |
| Write speed | 400 MB/s |
| Random write (4KB) | 9000 IOPS |
| Random read (4KB) | 86000 IOPS |
| Write latency | 130 µs |
| Read latency | 130 µs |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Internal | Yes |
| Component for | Server/workstation |
| Product colour | Black |
| SSD form factor | 2.5" |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | Serial ATA |
| Component for | Server/workstation |
| NVMe | No |
| NAND flash type | MLC (Multi Level Cell) |
| Hot-swap | Yes |
| SSD capacity | 240 GB |
| Windows operating systems supported | Yes |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 520 MB/s |
| TRIM support | Yes |
| RAID support | Yes |
| Write speed | 400 MB/s |
| Linux operating systems supported | Yes |
| Memory type | eMLC |
| Random write (4KB) | 9000 IOPS |
| Random read (4KB) | 86000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 130 µs |
| Read latency | 130 µs |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| Compatible products | Dell Server |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (idle) | 1.3 W |
| Weight & dimensions | |
| Width | 69.8 mm |
| Weight | 54.34 g |
| Height | 7 mm |
| Depth | 100.5 mm |
| Packaging data | |
| Storage drive adapter included | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Operating vibration | 20 G |
| Non-operating vibration | 20 G |
| Technical details | |
| Interface | Serial ATA |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| RAID support | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Operating vibration | 20 G |
| Non-operating vibration | 20 G |
| Hardware encryption | No |
| Product colour | Black |
| SSD form factor | 2.5" |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Product colour | Black |
| Internal | Yes |
| Compatible products | Dell Server |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Packaging content | |
| Storage drive adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
