VERTIV ACS8048MDAC-404 VERTIV 48-Port ACS8000 Console System with dual AC Power Supply and Analog Modem

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

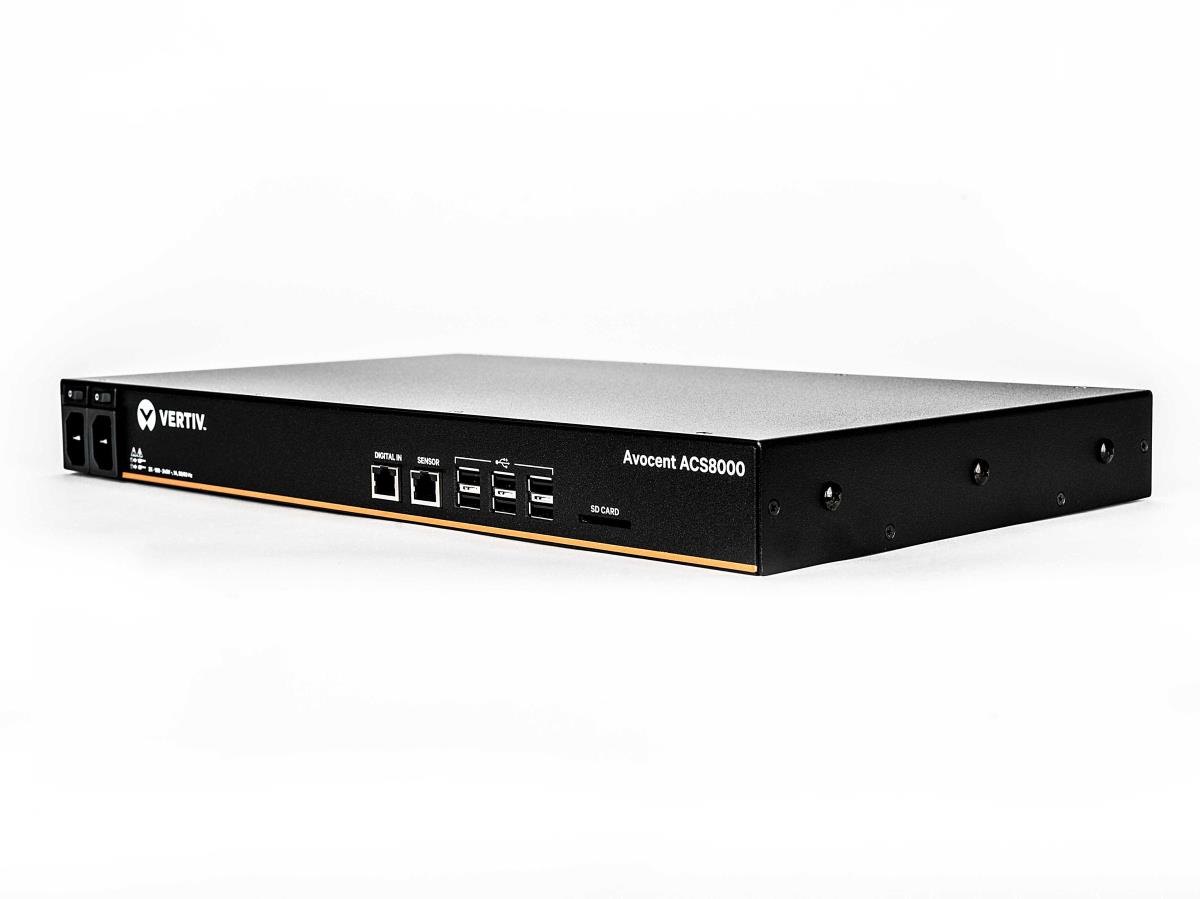

ACS8048MDAC-404 VERTIV 48-Port ACS8000 Console System with dual AC Power Supply and Analog Modem

Part No:ACS8048MDAC-404

Stock:1 In Stock

EAN Code:0636430086453

£4,299.05 Excl. VAT

£5,158.86 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

48-Port ACS8000 Console System with dual AC Power Supply and Analog Modem

Introduction

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).

Specifications

Technical details
Zero Touch Provisioning (ZTP)Yes
Web-based managementYes
Temperature sensorYes
Product colourBlack
Rack mountingYes
Internal modemYes
Management features
Management protocolsCLI, HTTP/ HTTPS, SNMP
Security
One-time password (OTP)Yes
Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
IP address filteringYes
Authentication methodLOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Ports & interfaces
SFP module slots quantity2
USB 2.0 ports quantity8
Serial ports quantity48
Ethernet LAN (RJ-45) ports2
Console portRJ-45
AC outlet typesC13 coupler
Software
Operating system installedEmbedded LINUX
Processor
Processor familyARM Cortex-A9
Processor architectureARM Cortex-A9
Processor cores2
Processor frequency667 MHz
Memory
RAM typeDDR3L
RAM capacity1024 MB
eMMC capacity16 GB
Flash memory16000 MB
Weight & dimensions
Weight3.4 kg
Dimensions (WxDxH)438.2 x 241.3 x 44.5 mm
Power
Power consumption (max)35 W
Power source typeAC
AC input voltage109 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20 W
Number of power supply units2
Input current0.1 A
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Network
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Cable types supportedCat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
Certificates
CertificationFCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Other features
SafetyUL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
