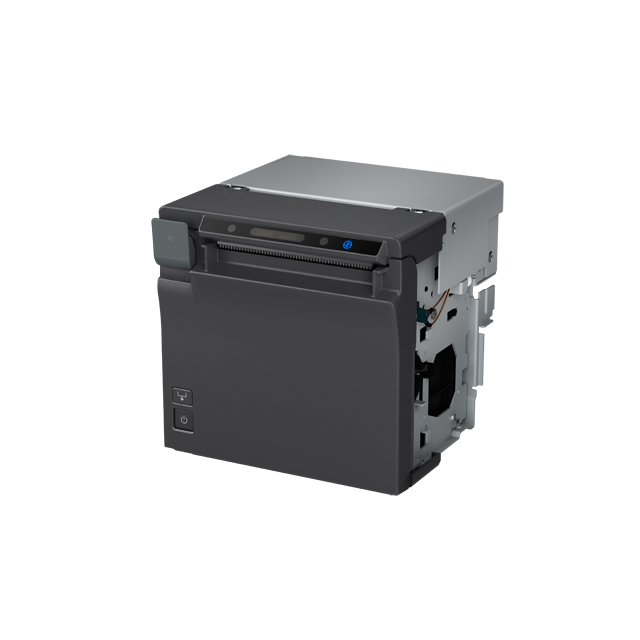

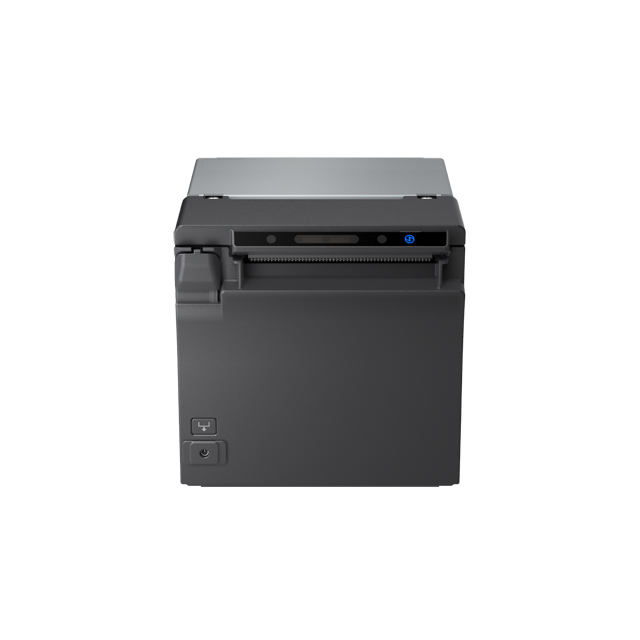

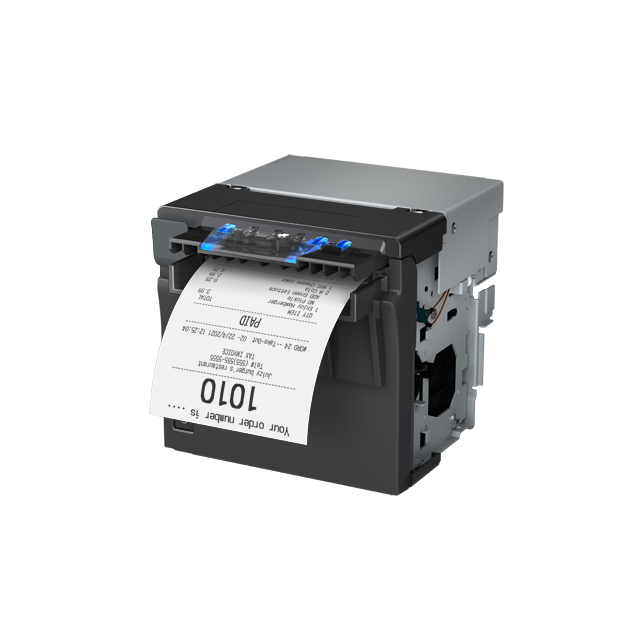

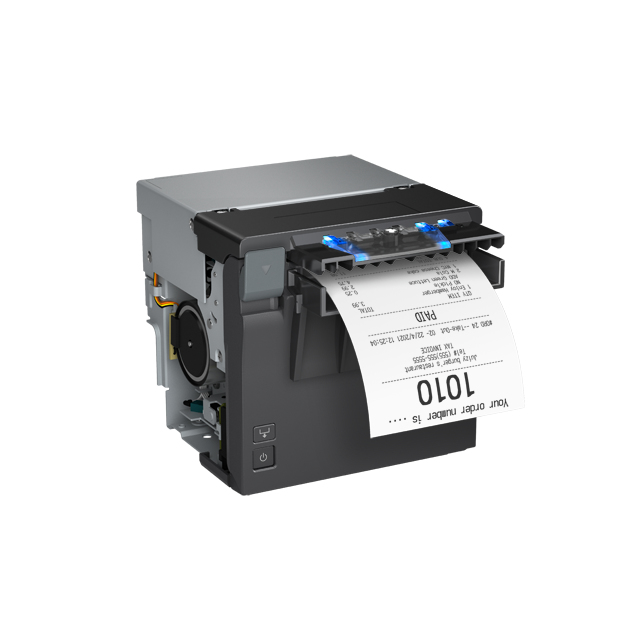

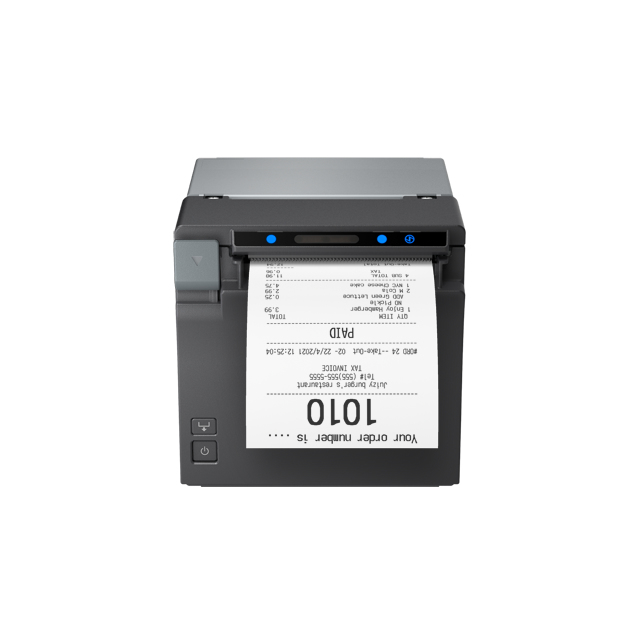

EPSON C31CK01002 EPSON EU-m30 (002): USB + Serial, NES, Black, No PSU

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

EU-m30 (002): USB + Serial, NES, Black, No PSU

Introduction

Kiosk receipt printer
The EU-m30 is based on the highly-successful TM-m30 printer and has been specifically designed for kiosk applications, following direct feedback from customers

High-quality, reliable hardware
Avoid downtime by choosing proven, reliable hardware from a market leader{s1. Ensure happy customers with high-quality and legible printed receipts. The EU-m30's small footprint means less space is needed for the printer.

Easy to connect and monitor

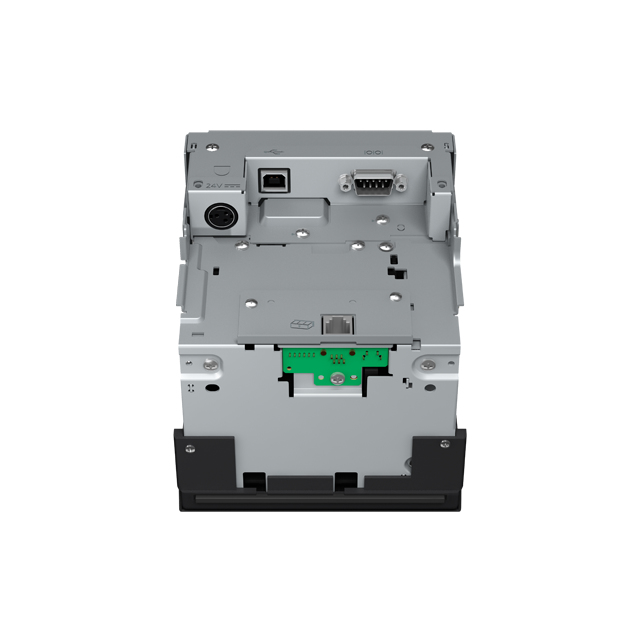

The EU-m30 comes with USB and serial connectivity as standard. Once connected, the printers' clear indicator LEDs allow operators to assess the printer condition at a glance.

Simple maintenance and installation
The EU-m30 comes with an optional mounting kit to help securely mount the printer to the kiosk. This also makes it easier to swap the printer out for necessary maintenance. A large button cover allows both the power and feed button to be shielded from unwanted presses.

Re-export made easier
The EU-m30 is certified as a component, leaving the vendor free to certify the overall kiosk.

Specifications

Printing
Character setsANK
TypePOS printer
Print technologyThermal
Maximum resolution203 x 203 DPI
Print speed (receipt)250 mm/sec
Printing charactersText, Graphic, Barcode
Performance
Character setsANK
TypePOS printer
Print technologyThermal
Maximum resolution203 x 203 DPI
Paper handling
Supported paper width58 mm - 80 mm (Breite)
Maximum roll diameter8.3 cm
Ports & interfaces
Connectivity technologyWired & Wireless
USB portYes
Serial interfaceYes
Near Field Communication (NFC)Yes
Print technology
TypePOS printer
Print technologyThermal
Column capacity48/57
Print quality
Maximum resolution203 x 203 DPI
Technical details
Pre-installed softwareTMNet WebConfig, ePOS-Device, ePOS-Display, ePOS-Print
Mean cycles between failures (MCBF)65000000
Character setsANK
Built-in sensors detailsPaper End Sensor, Papier-Sensor
Product colourBlack
Buffer size12 KB
Autocutter durability1.5 million cuts
Print head life150.000.000 Impulse
Quantity per pack1 pc(s)
Country of originPhilippines
Lifetime17000000 lines
Font stylesANK
Harmonized System (HS) code84433210
Features
Mean cycles between failures (MCBF)65000000
Character setsANK
Built-in sensors detailsPaper End Sensor, Papier-Sensor
Mean time between failures (MTBF)360000 h
Product colourBlack
Autocutter durability1.5 million cuts
Sound pressure level (printing)55 dB
Print head life150 km
Country of originPhilippines
Mounting positionHorizontal
Half-cutterYes
Design
Product colourBlack
Memory
Buffer size12 KB
Endurance
Mean time between failures (MTBF)360000 h
Power
Power plug typeType C
Operational conditions
Storage relative humidity (H-H)10 - 90%
Operating temperature (T-T)5 - 45 °C
Operating relative humidity (H-H)10 - 90%
System requirements
Pre-installed softwareTMNet WebConfig, ePOS-Device, ePOS-Display, ePOS-Print
Weight & dimensions
Width127 mm
Depth131 mm
Height127 mm
Package width195 mm
Package depth230 mm
Package height235 mm
Package weight1.65 kg
Weight1.3 kg
Packaging data
Package width195 mm
Package depth230 mm
Package height235 mm
Package weight1.65 kg
Quantity per pack1 pc(s)
Packaging content
Quantity per pack1 pc(s)
Software
Pre-installed softwareTMNet WebConfig, ePOS-Device, ePOS-Display, ePOS-Print
Logistics data
Harmonized System (HS) code84433210
Other features
Mean cycles between failures (MCBF)65000000
Buffer size12 KB
Print head life150.000.000 Impulse
Print head life150 km
