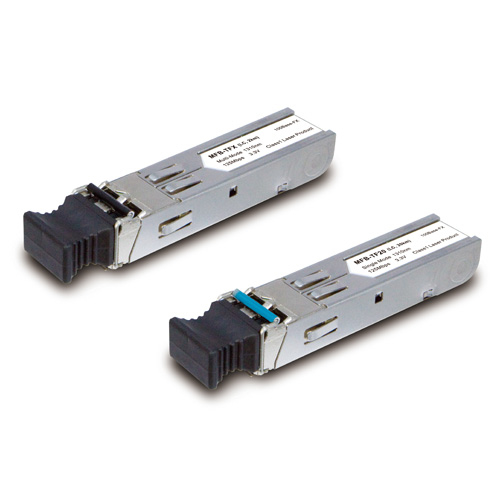

EU Product - PLANET MFB-TFA20 network transceiver module Fiber optic 100 Mbit/s SFP 1310 nm
Introduction
PLANET WDM Tx-1310, 20KM, 100MBPS SFP FIBER TRANSCEIVER
Specifications
Model: Planet MFB-TFA20
SFP-Port 100Base-BX (WDM, TX:1310nm) mini-GBIC module-20km (-40~75°C)
Features
- SFP Multi-Source Agreement compliant
- 125Mbps IEEE 802.3u 100Base-FX compliant
- Industry standard small form pluggable (SFP) package (for model MFB-TFX / MFB-TF20 )
- 125Mbps FDDI ISO / IEC 9314-1 compliant
- Serial ID functionality support
- AC-coupled differential inputs and outputs
- Class 1 laser safety standard IEC 825 compliant
- 2km link on a multimode fiber and 20km to 60km on a single mode fiber
- Low power dissipation
- -40 to 75 degrees C operating temperature
Specifications
| PHY Type | 100Base-BX |
| Fiber Type | Single Mode |
| Connector | WDM / Bidi LC |
| Wavelength | TX: 1310nm, RX: 1550nm |
| Maximum Distance | 20km |
| Operating Temperature | -40 ~ 75 degrees C |
