Part No:SFP1000LXST
Stock:22 In Stock
EAN Code:0065030873420

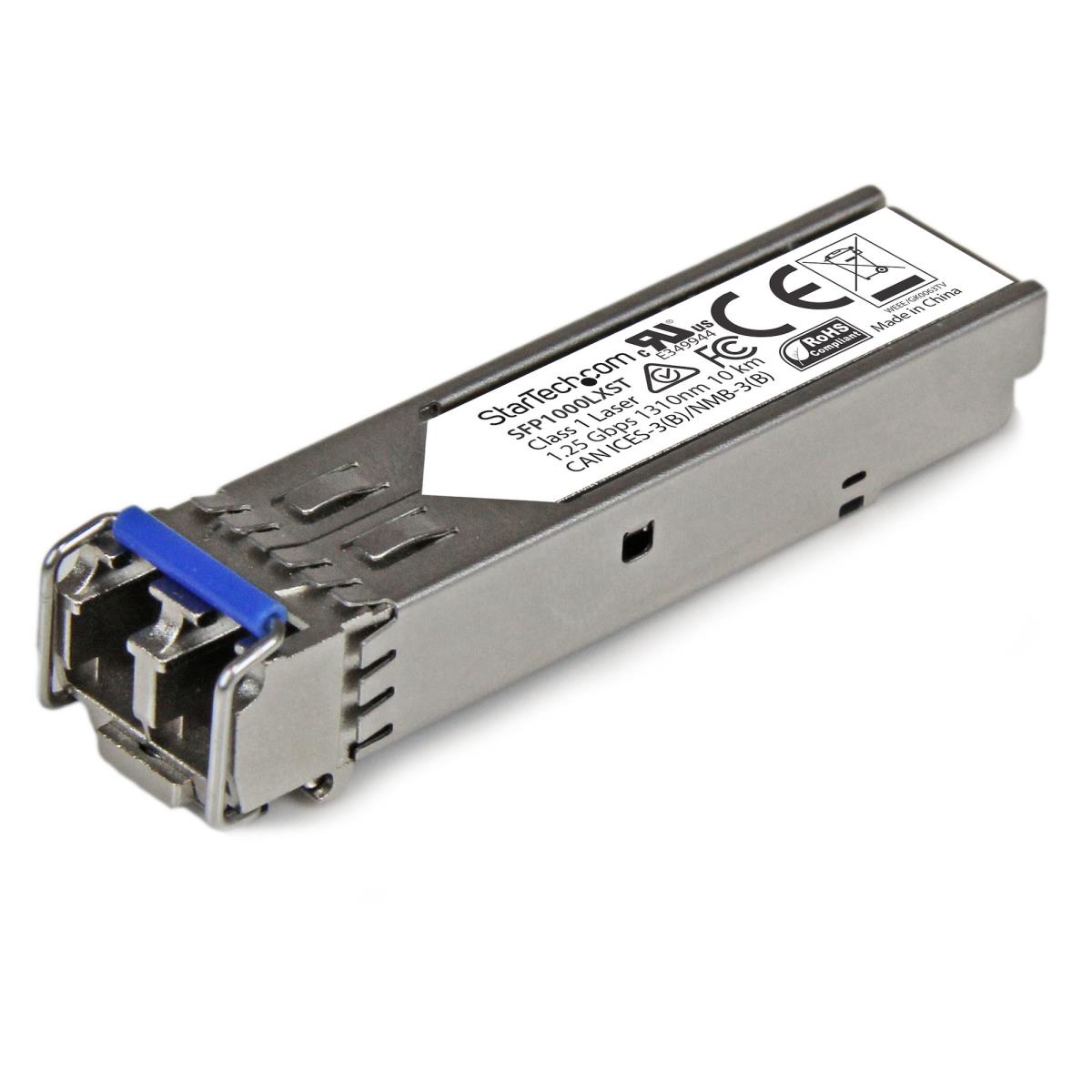

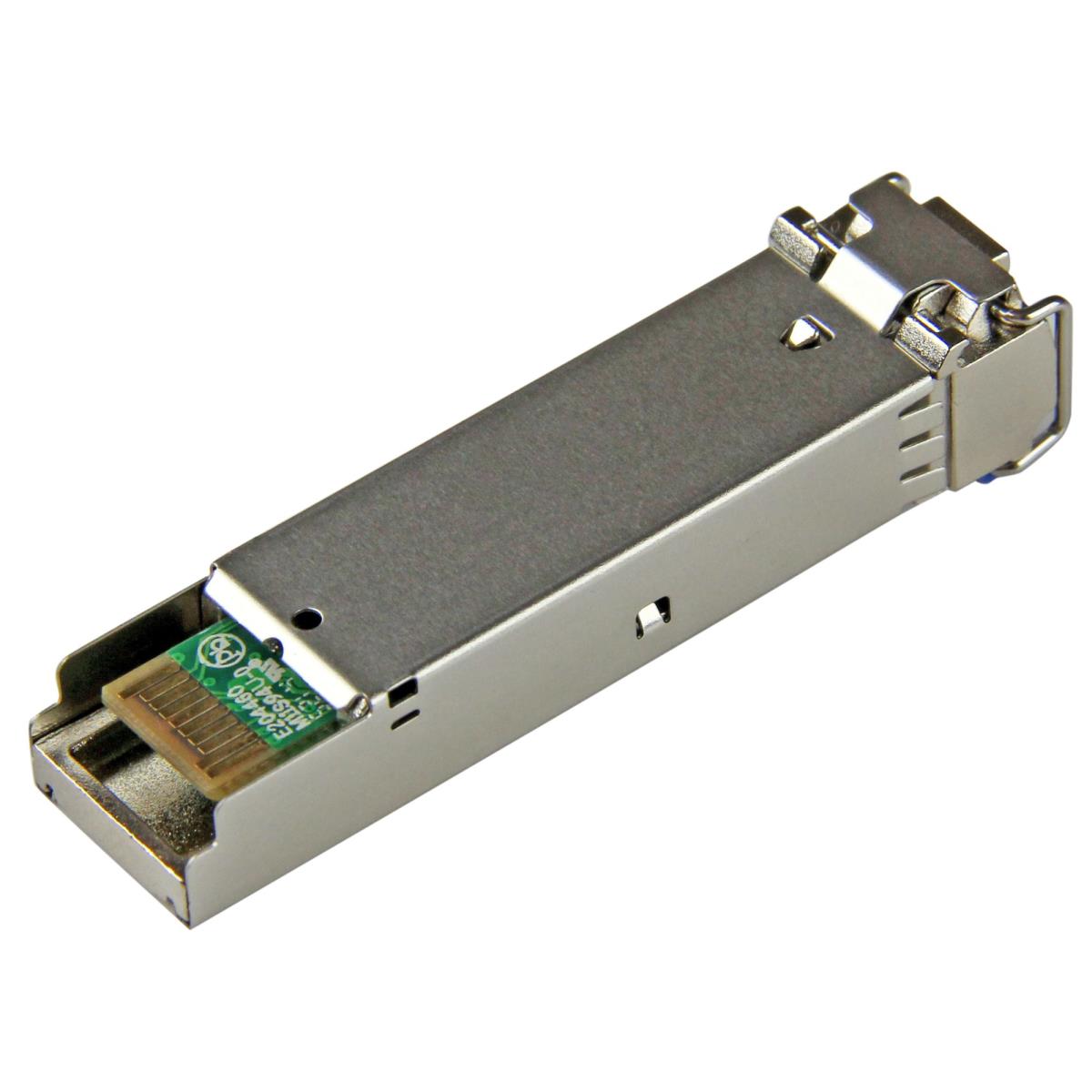

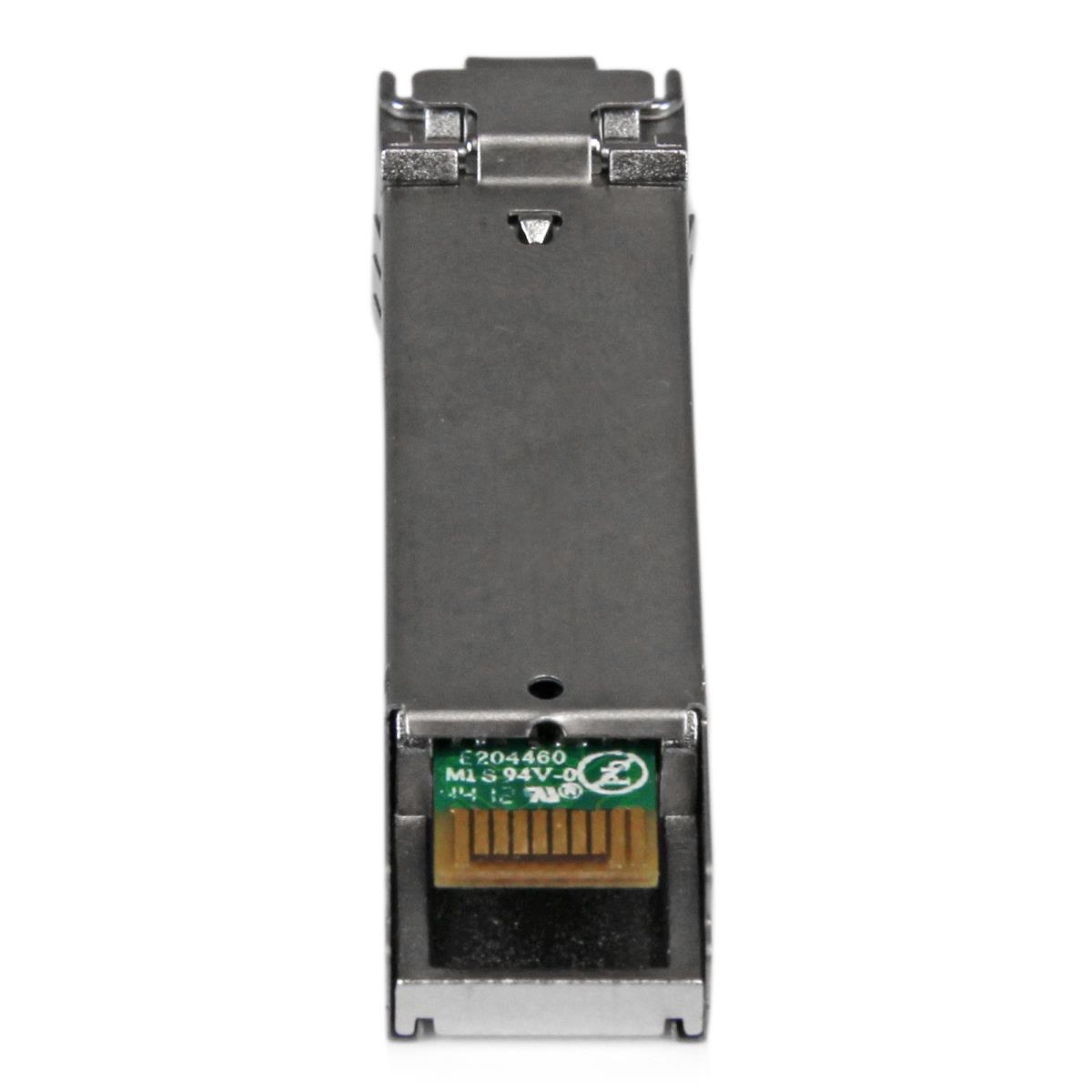

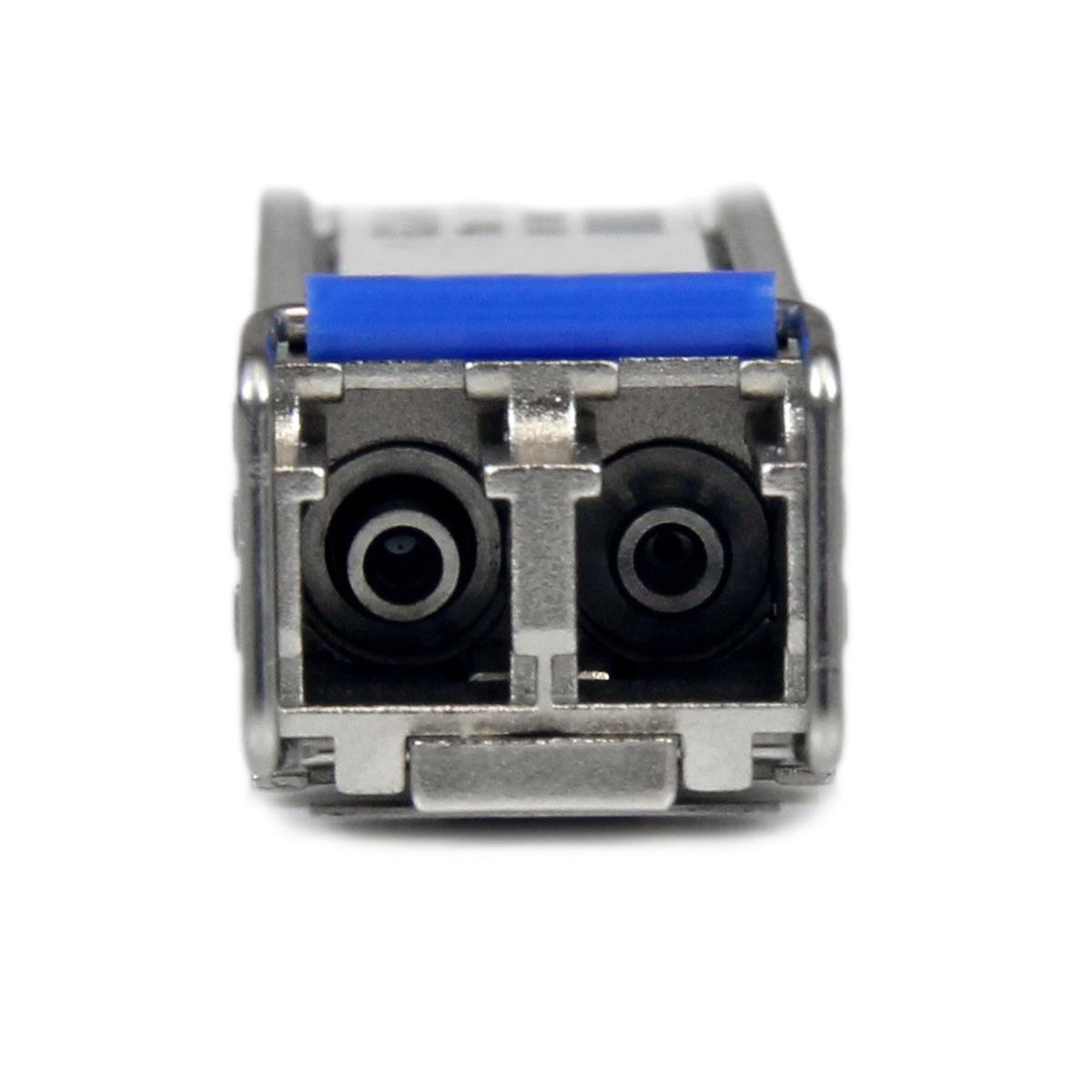

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Network | |
---|---|
SFP transceiver type | Fiber optic |
Fiber optic connector | LC |
Networking standards | IEEE 802.3z |
Maximum data transfer rate | 1250 Mbit/s |
Interface type | SFP |
Technical details | |
Package width | 92 mm |
Package height | 33 mm |
Hot-Plug support | Yes |
Maximum transfer distance | 10000 m |
Wavelength | 1310 nm |
Duplex system | Full |
Sustainability certificates | RoHS |
Performance | |
Product colour | Silver |
Housing material | Aluminium |
Hot-Plug support | Yes |
SFP transceiver type | Fiber optic |
Wavelength-division multiplexing (WDM) | No |
Digital Diagnostics Monitoring (DDM) | Yes |
Fiber optic connector | LC |
Networking standards | IEEE 802.3z |
Maximum transfer distance | 10000 m |
Wavelength | 1310 nm |
Duplex system | Full |
Maximum data transfer rate | 1250 Mbit/s |
Interface type | SFP |
Single-mode fiber (SMF) supported | Yes |
SFP transceiver standard | LX |
Harmonized System (HS) code | 85369010 |
Features | |
Product colour | Silver |
Housing material | Aluminium |
Hot-Plug support | Yes |
Certification | CE, FCC, UR |
Power | |
Power consumption (typical) | 1 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 15 mm |
Depth | 59 mm |
Height | 12 mm |
Weight | 18 g |
Package depth | 117 mm |
Package width | 92 mm |
Package height | 33 mm |
Package weight | 47 g |
Packaging data | |
Package depth | 117 mm |
Number of products included | 1 pc(s) |
Package width | 92 mm |
Package height | 33 mm |
Package weight | 47 g |
Certificates | |
Certification | CE, FCC, UR |
Packaging content | |
Number of products included | 1 pc(s) |
Logistics data | |
Master (outer) case width | 200 mm |
Master (outer) case length | 302 mm |
Master (outer) case height | 256 mm |
Products per master (outer) case | 35 pc(s) |
Harmonized System (HS) code | 85369010 |
