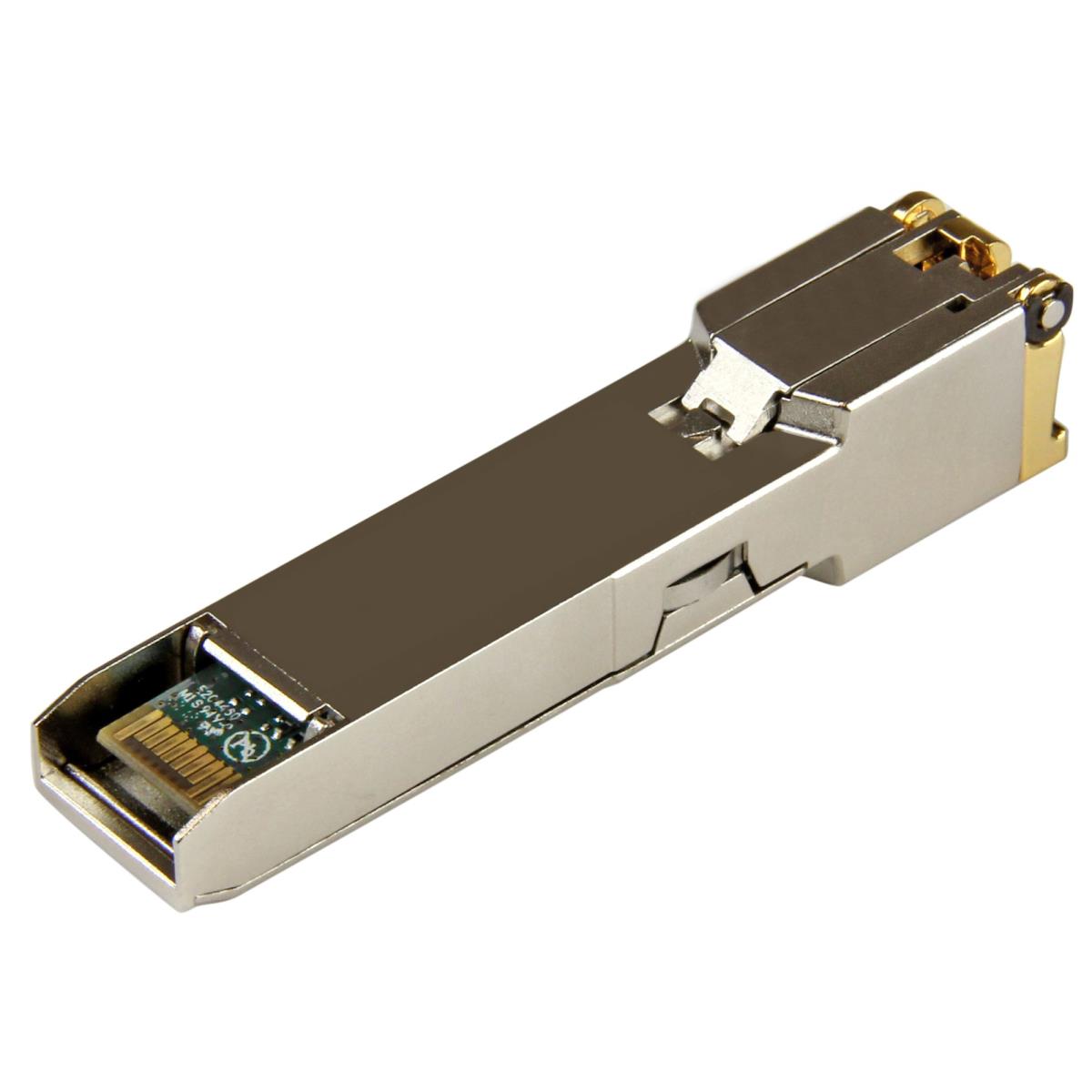

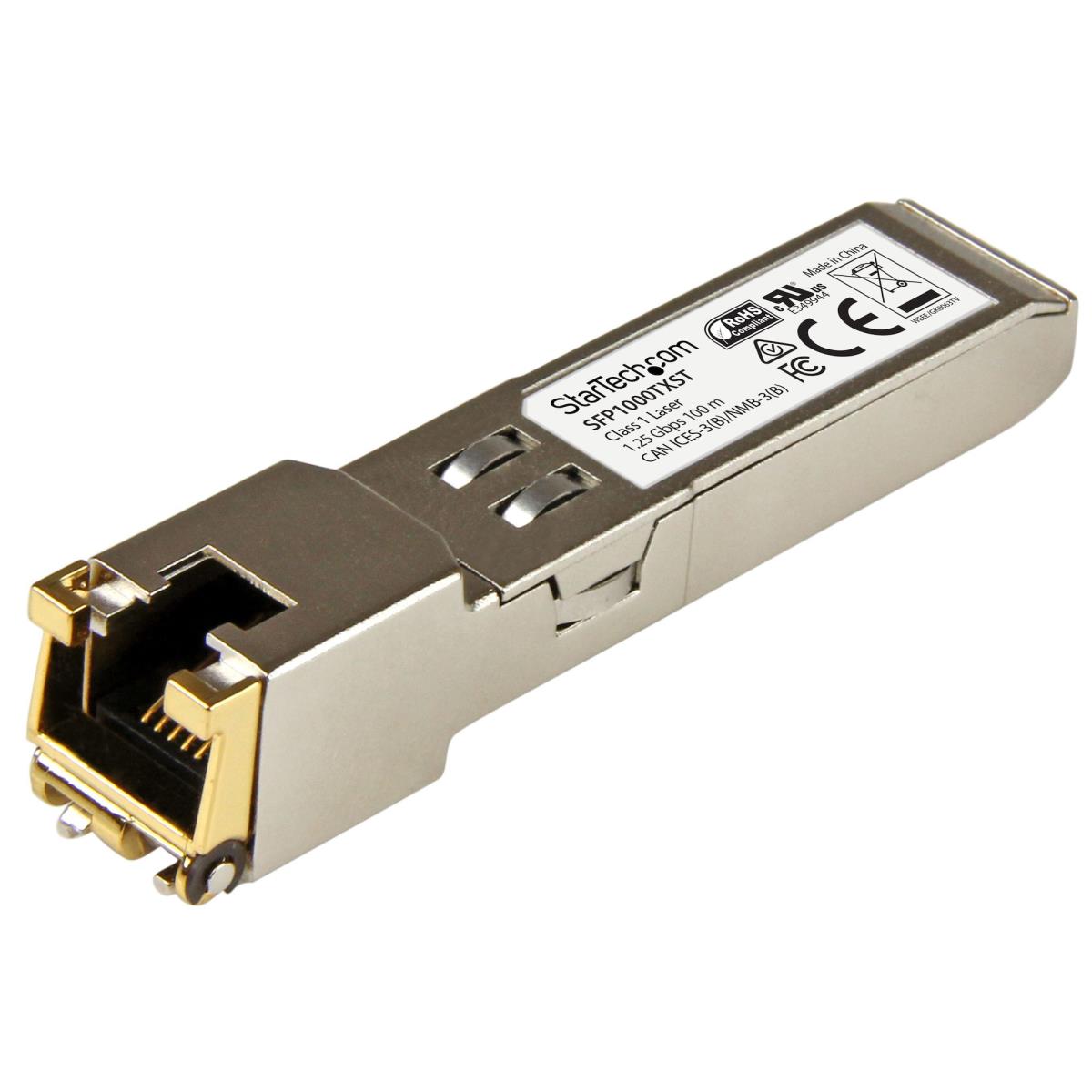

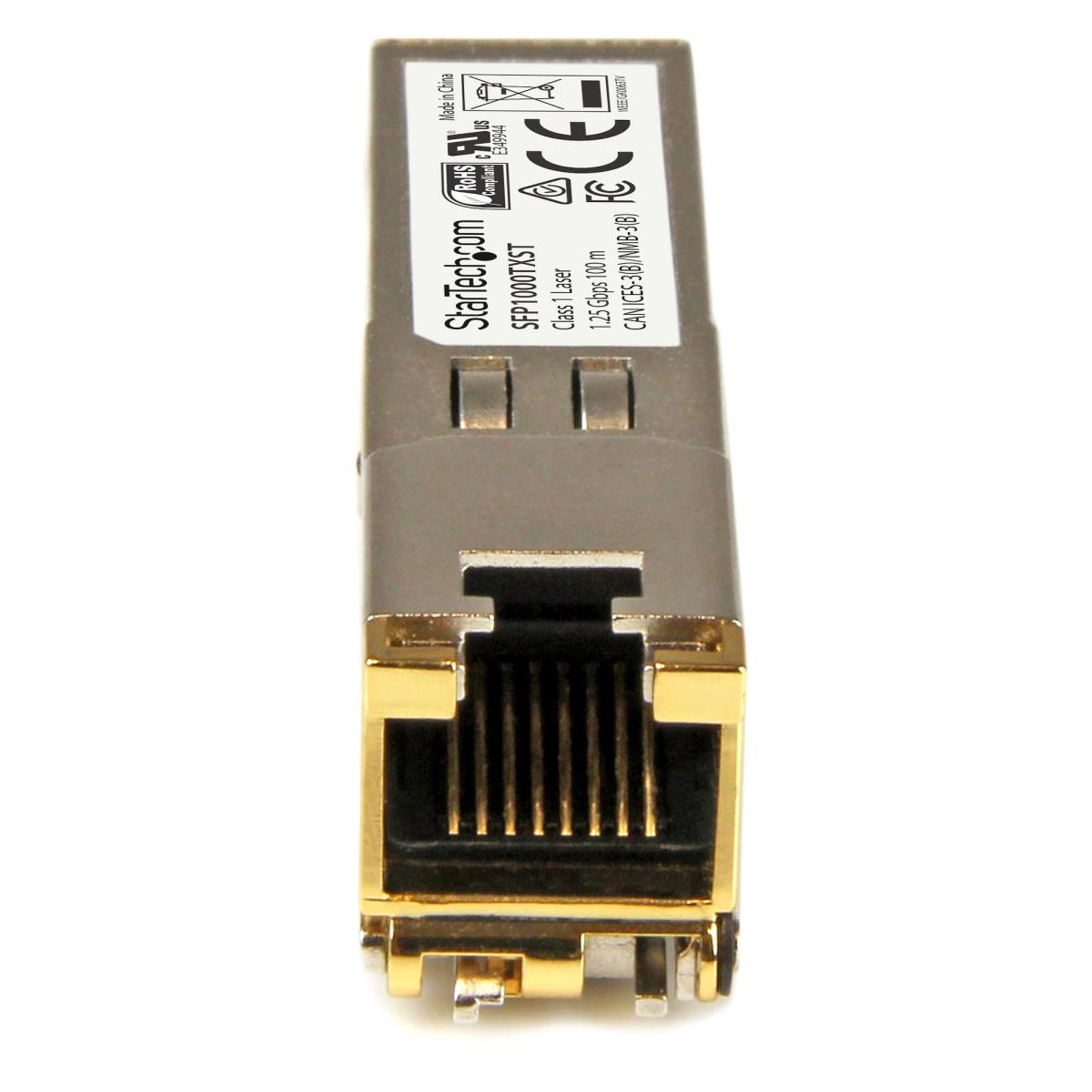

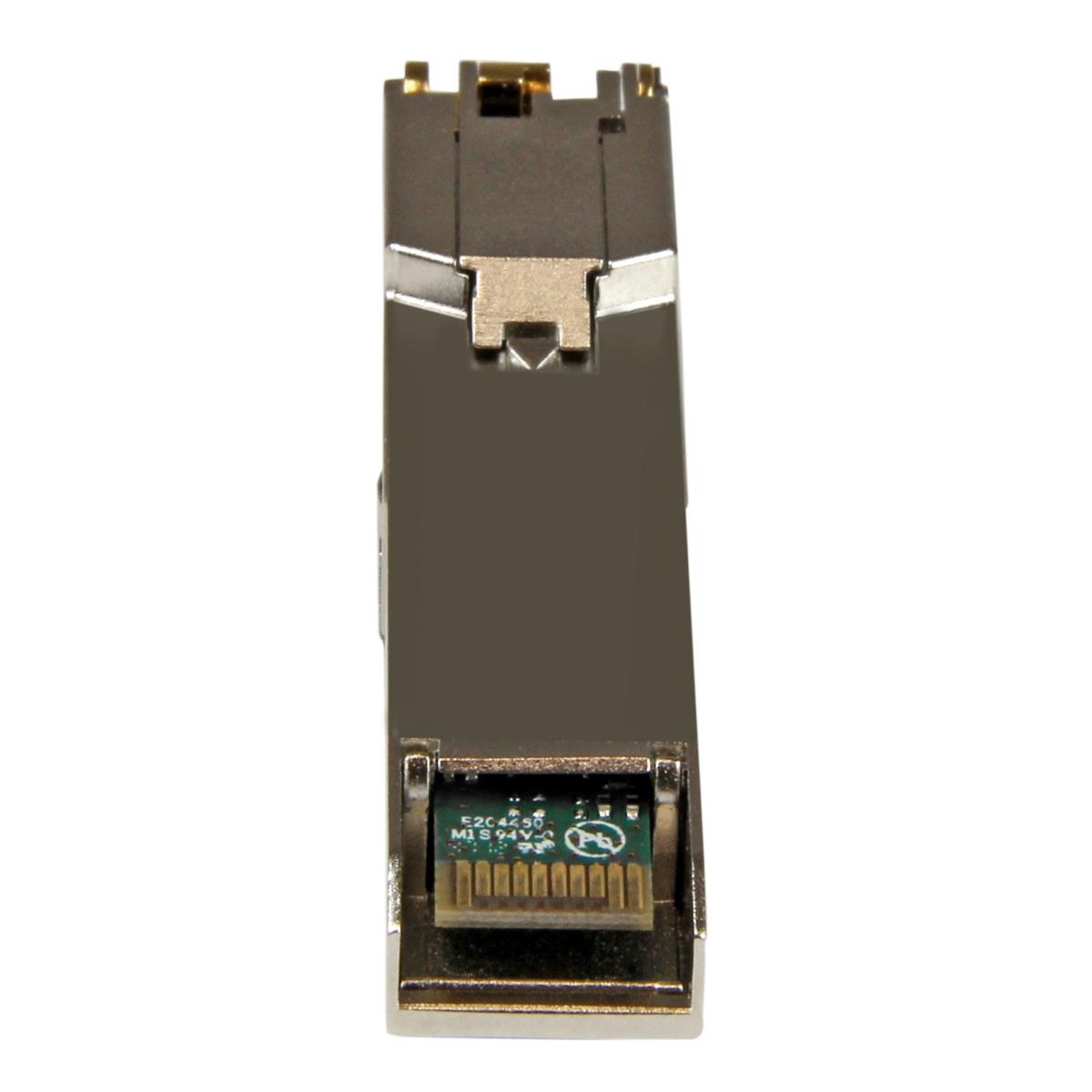

MSA Uncoded Compatible SFP Module, 1000BASE-TX, SFP to RJ45 (Copper) Cat6/Cat5e, 1GE Gigabit Ethernet SFP, RJ-45 (Copper) 100m, 1Gbps/1000Mbps Mini GBIC Transceiver SFP Module - Lifetime Warranty (SFP1000TXST) - SFP (mini-GBIC) transceiver module - 1GbE -
Introduction
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The SFP1000TXST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 1000BASE-TX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 100 m (328 ft) and delivers dependable 1 GbE connectivity over copper cabling.
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• Power Consumption: Less than 1.3 Watt
• DDM: No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Networking standards | IEEE 802.3z |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 100 m |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Certification | CE, FCC, UR |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3z |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 25 g |
| Package depth | 113 mm |
| Package width | 91 mm |
| Package height | 33 mm |
| Package weight | 52 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 91 mm |
| Package height | 33 mm |
| Hot-Plug support | Yes |
| Maximum transfer distance | 100 m |
| Duplex system | Full |
| Ethernet LAN | Yes |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Packaging data | |
| Package depth | 113 mm |
| Package width | 91 mm |
| Package height | 33 mm |
| Package weight | 52 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 70 pc(s) |
| Harmonized System (HS) code | 85369010 |
