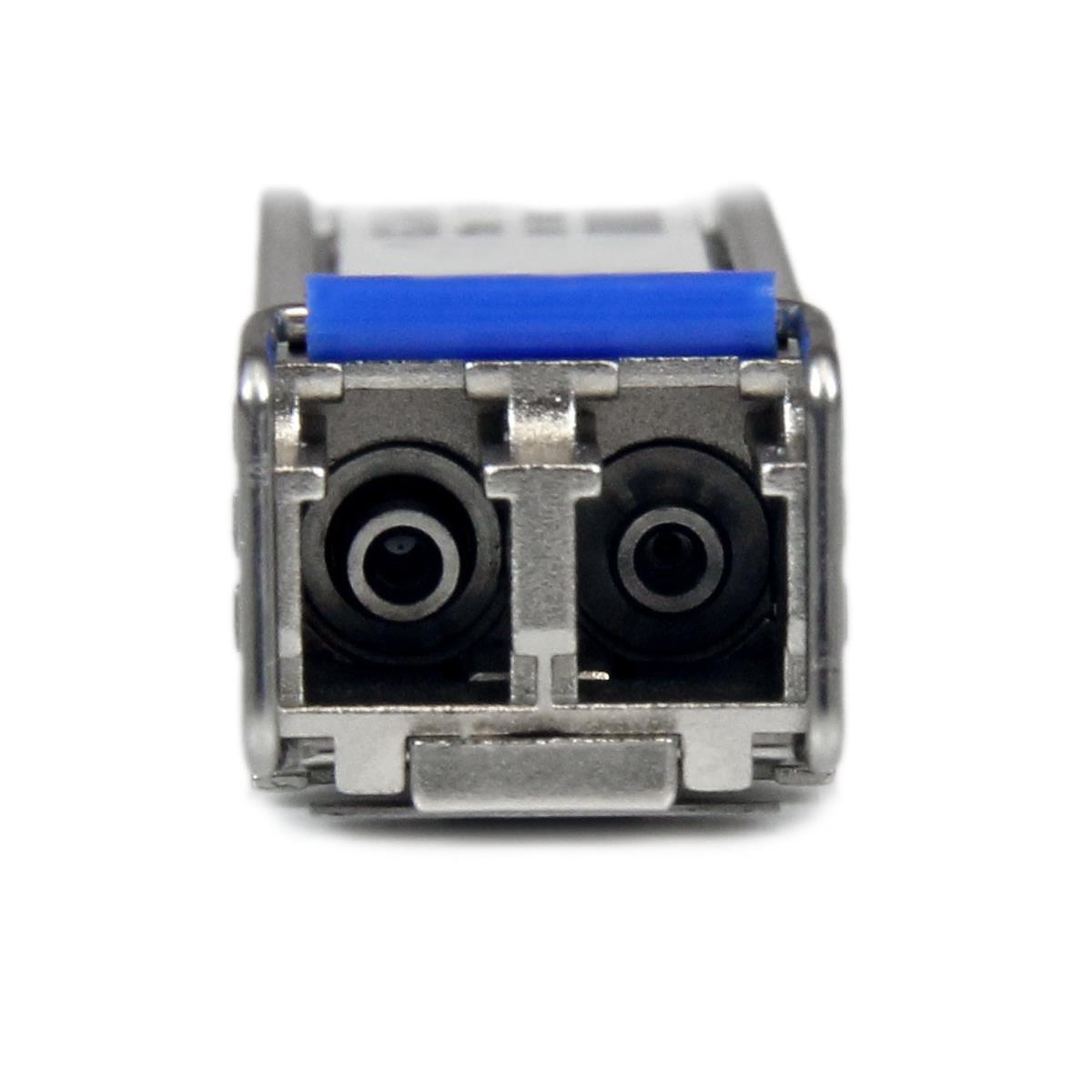

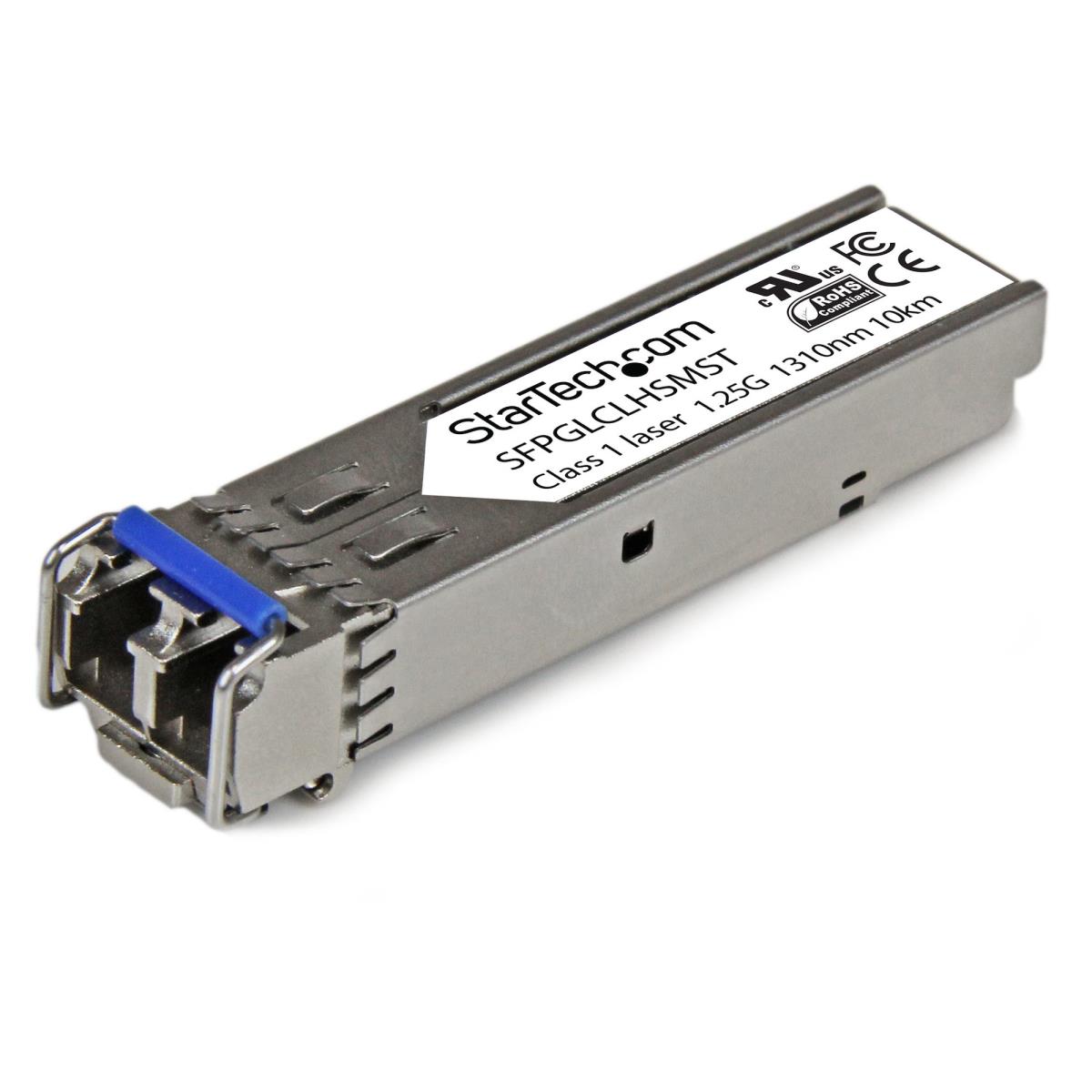

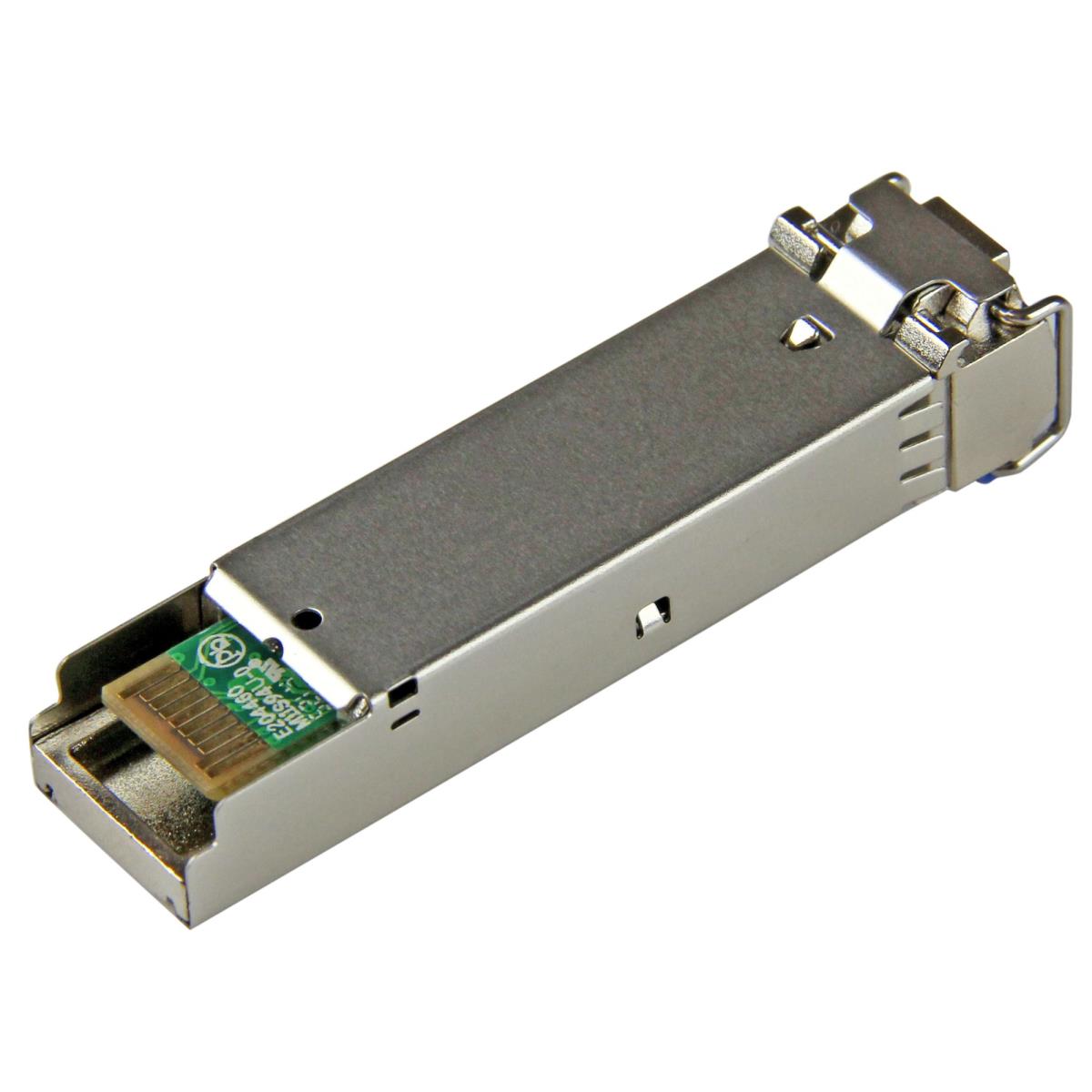

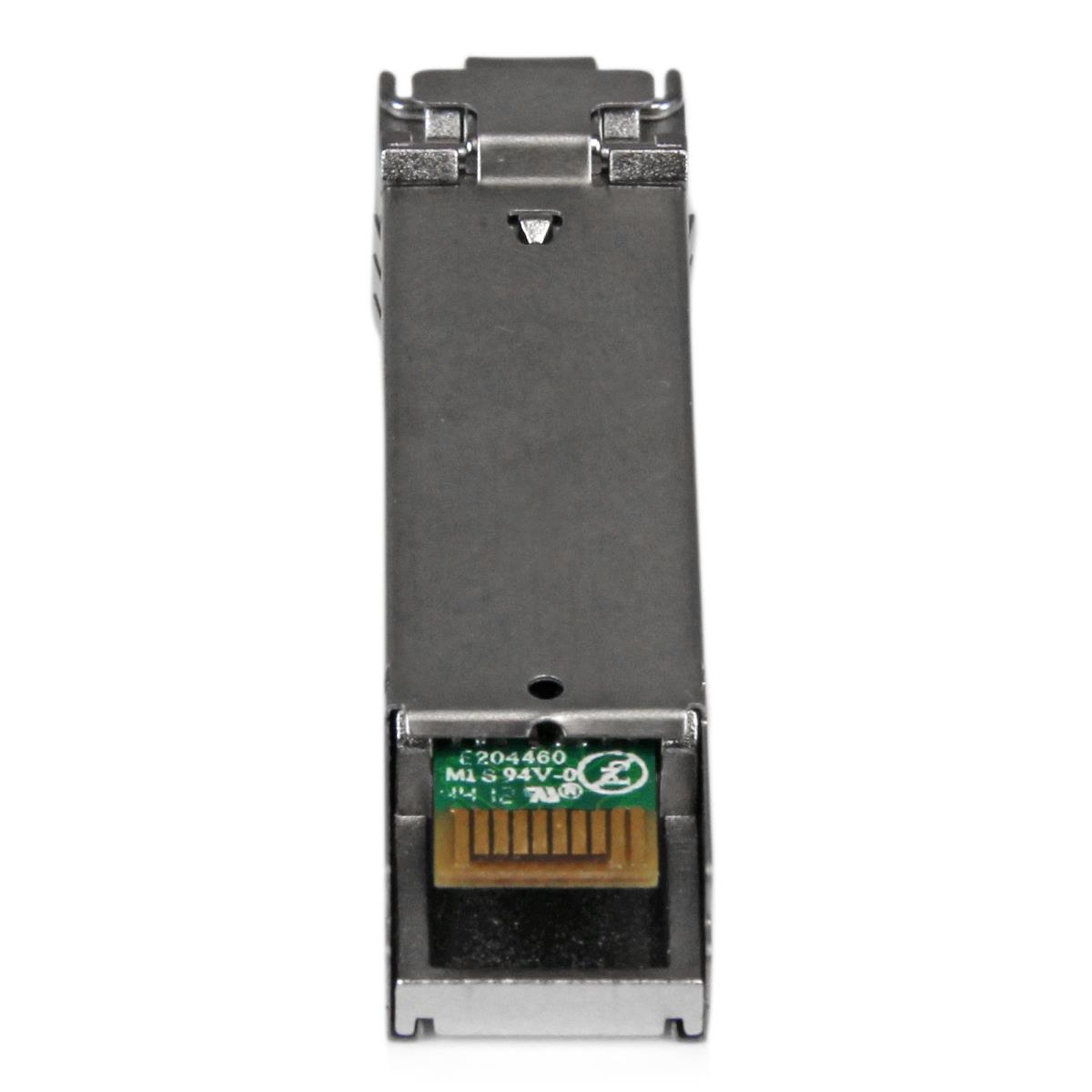

STARTECH.COM SFPGLCLHSMST STARTECH.COM 1310NM 1000BASE-LH SINGLE MODE

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

SFPGLCLHSMST STARTECH.COM 1310NM 1000BASE-LH SINGLE MODE

Part No:SFPGLCLHSMST

Stock:16 In Stock

EAN Code:0065030850643

£42.04 Excl. VAT

£50.45 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

1310NM 1000BASE-LH SINGLE MODE

Introduction

1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Single Mode / Multimode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM

MTBF: 3,092,408 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): No

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% CISCO GLC-LH-SM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others
- TECHNICAL SPECS: 1000BASE-LX/LH
- 1 Gbps

Specifications

Network
SFP transceiver typeFiber optic
Fiber optic connectorLC
Networking standardsIEEE 802.3z
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Technical details
Package width119 mm
Package height33 mm
Hot-swapYes
Maximum transfer distance10000 m
Wavelength1310 nm
Duplex systemFull, Half
Sustainability certificatesRoHS
Performance
Product colourStainless steel
Hot-swapYes
Mean time between failures (MTBF)3092408 h
SFP transceiver typeFiber optic
Wavelength-division multiplexing (WDM)No
Digital Diagnostics Monitoring (DDM)No
Fiber optic connectorLC
Networking standardsIEEE 802.3z
Maximum transfer distance10000 m
Wavelength1310 nm
Duplex systemFull, Half
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedYes
SFP transceiver standardLH, LX
Harmonized System (HS) code85369010
Features
Product colourStainless steel
Hot-swapYes
CertificationCE, FCC, UL
Mean time between failures (MTBF)3092408 h
Power
Power consumption (typical)1 W
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)30 - 70%
Weight & dimensions
Width12 mm
Depth60 mm
Height10 mm
Weight20 g
Package depth93 mm
Package width119 mm
Package height33 mm
Package weight46 g
Packaging data
Package depth93 mm
Number of products included1 pc(s)
Package width119 mm
Package height33 mm
Package weight46 g
Certificates
CertificationCE, FCC, UL
Packaging content
Number of products included1 pc(s)
Logistics data
Master (outer) case width251 mm
Master (outer) case length303 mm
Master (outer) case height211 mm
Products per master (outer) case36 pc(s)
Harmonized System (HS) code85369010
