SERVICE BYPASS PANEL
Introduction

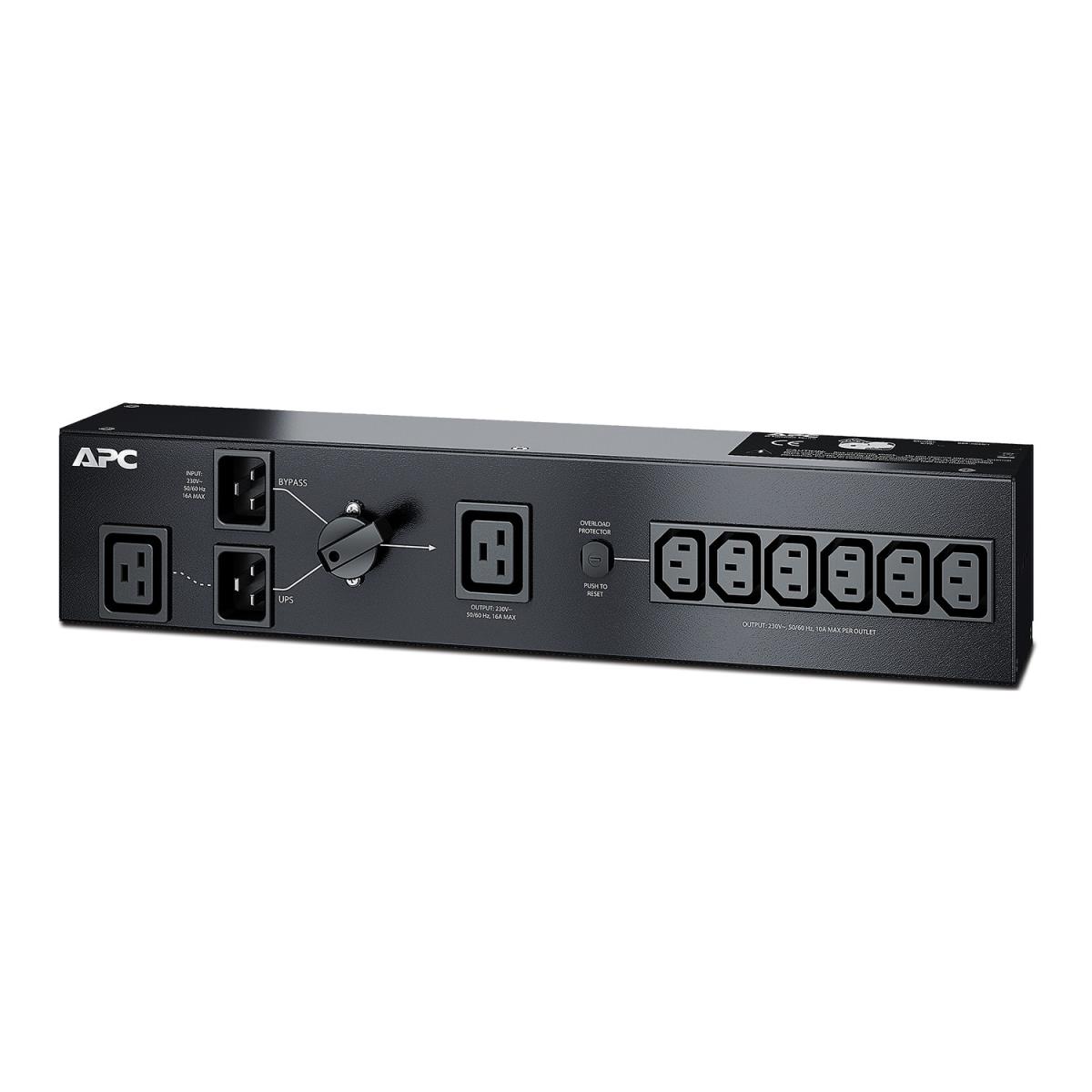

The APC SBP3000RMI Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (6) IEC C13, (1) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Specifications
| Features | |
|---|---|
| Rack capacity | 2U |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certification | VDE, REACH |
| Ports & interfaces | |
| Input connections | IEC 60320 C20 |
| Certificates | |
| Certification | VDE, REACH |
| Compliance certificates | RoHS, REACH, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 76 mm |
| Height | 89 mm |
| Weight | 2.09 kg |
| Technical details | |
| Compliance certificates | RoHS, REACH, WEEE |
