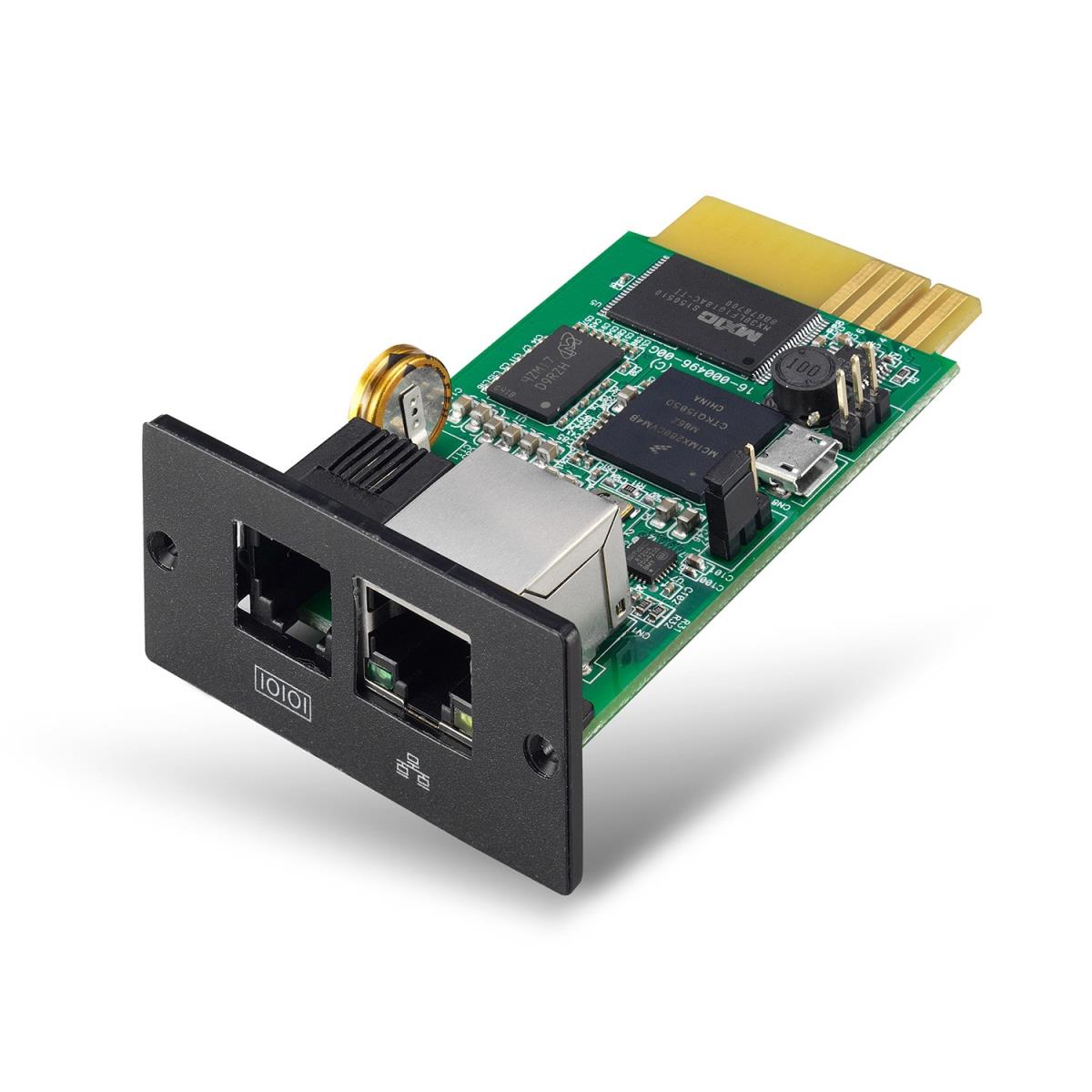

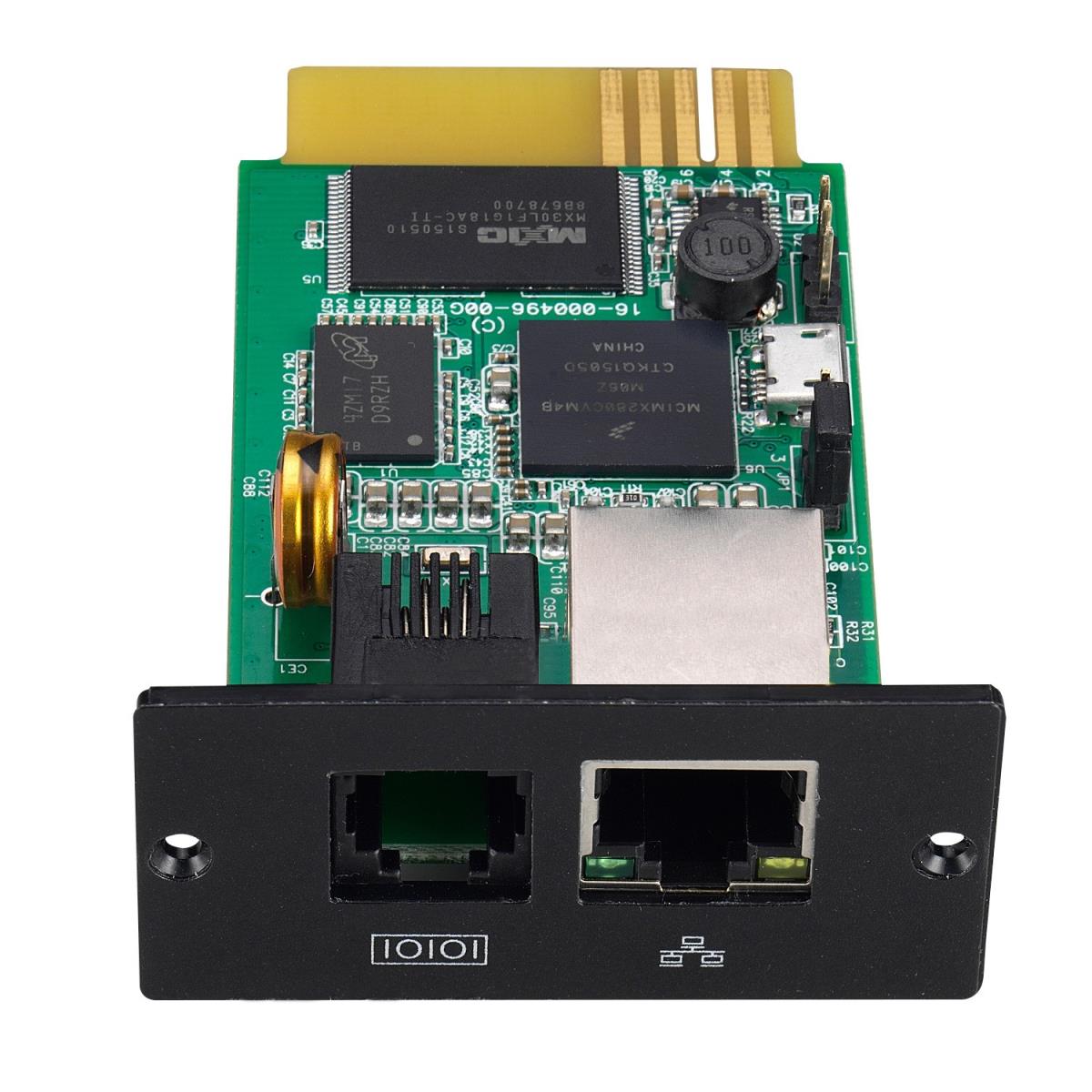

SNMP NETWORK CARD FOR V7 UPS
Introduction
The V7 UPS SNMP Network Card allows you to securely manage and control V7 UPS systems from across the network. It helps you to keep notified, maintain the UPS systems, and safely shut down network computers during power outages, increasing uptime.
Specifications
| Features | |
|---|---|
| Product type | Network management card |
| Product colour | Black, Green |
| LED indicators | Status |
| MIB support | RFC1213, RFC1628, Proprietary MIB |
| Certification | CE, FCC |
| Ports & interfaces | |
| Host interface | SmartSlot |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100BaseT(X) |
| Security algorithms | SNMP |
| Management features | |
| Management protocols | SNMP-V1, SNMP-V2 |
| Password protection | Yes |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 52.6 mm |
| Height | 26 mm |
| Weight | 200 g |
| Package width | 135 mm |
| Package depth | 170 mm |
| Package height | 45 mm |
| Package weight | 300 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Harmonized System (HS) code | 85079080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85079080 |
