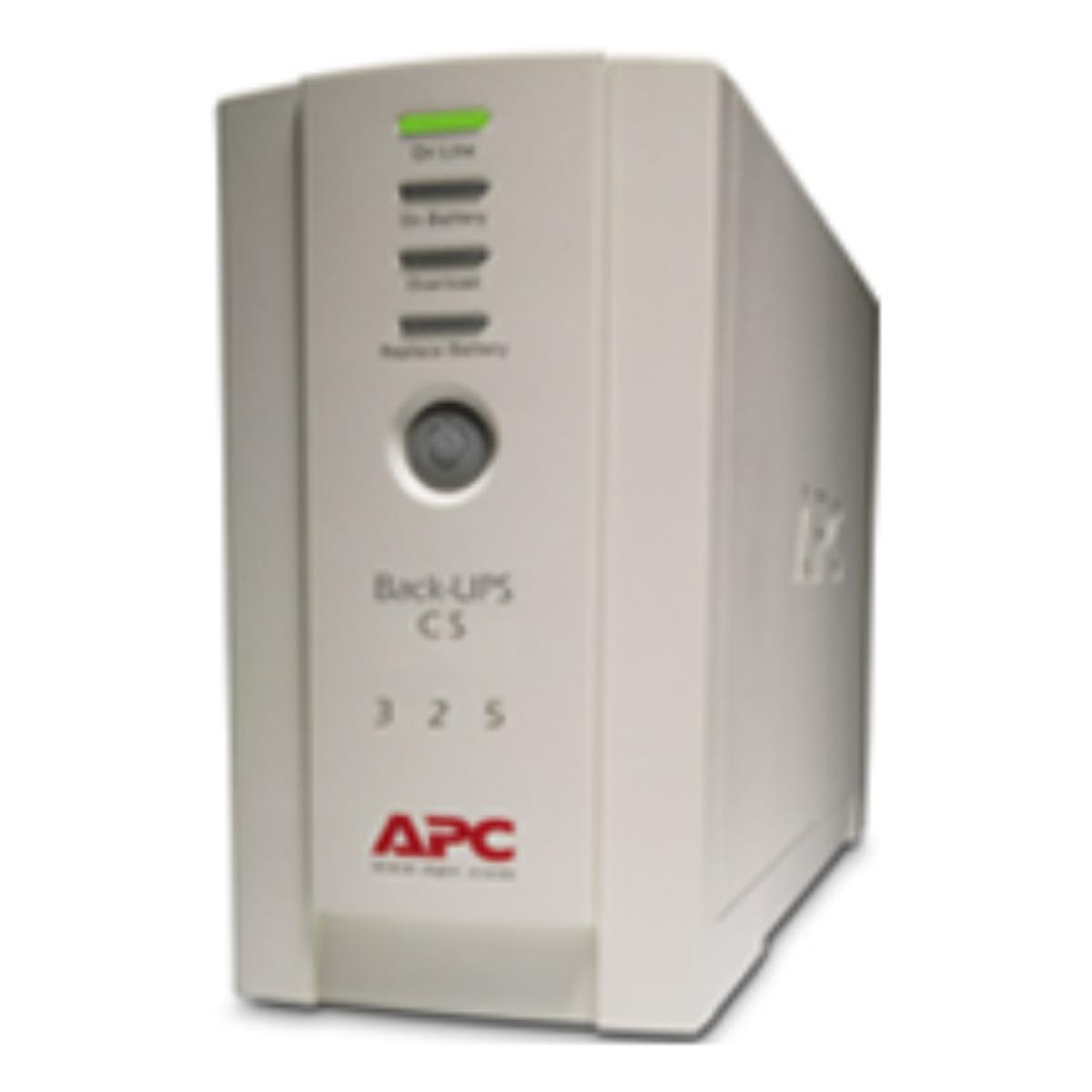

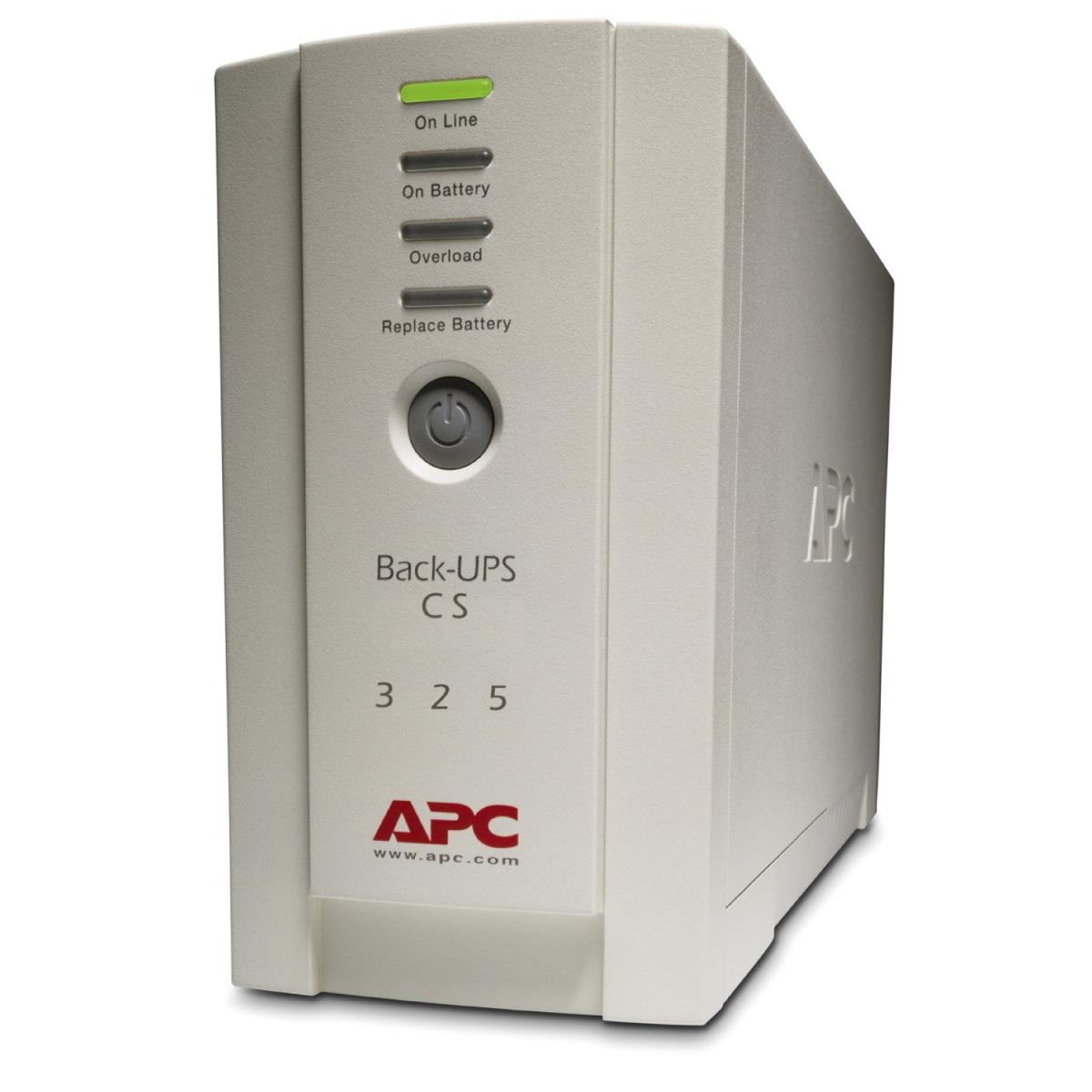

Back-UPS CS 325 - UPS - AC 230 V - 210 watt - 350 VA - output connectors: 4 - beige
Introduction
Battery Backup & Surge Protector for Electronics and Computers
Specifications
| Power | |
|---|---|
| Output power | 210 W |
| Surge energy rating | 310 J |
| Output power capacity | 0.325 kVA |
| Single-phase input voltage supported | 230 V |
| Performance | |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Features | |
| Country of origin | Philippines |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power | 210 W |
| Surge energy rating | 310 J |
| Output power capacity | 0.325 kVA |
| Single-phase input voltage supported | 230 V |
| Ports & interfaces | |
| SmartSlot | No |
| AC outlet types | IEC 60320 |
| Number of output IEC jumpers | 3 |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 6 h |
| Replacement battery cartridge | RBC2 |
| Battery replacement accessibility | End-user |
| Design | |
| Country of origin | Philippines |
| Rack capacity | 0U |
| Product colour | Beige |
| Certification | C-Tick; CE; GOST; VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Output voltage | 230 V |
| Mounting | front |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 226.32654545454545 |
| Compliance certificates | RoHS, REACH, WEEE |
| Packaging data | |
| Package dimensions (WxDxH) | 241 x 368 x 178 mm |
| Package weight | 6.73 kg |
| Management card included | No |
| Certificates | |
| Certification | C-Tick; CE; GOST; VDE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Packaging content | |
| Management card included | No |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Weight | 5.73 kg |
| Width | 91 mm |
| Package weight | 6.73 kg |
| Height | 165 mm |
| Logistics data | |
| Country of origin | Philippines |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 226.32654545454545 |
| Other features | |
| Output voltage | 230 V |
| Mounting | front |

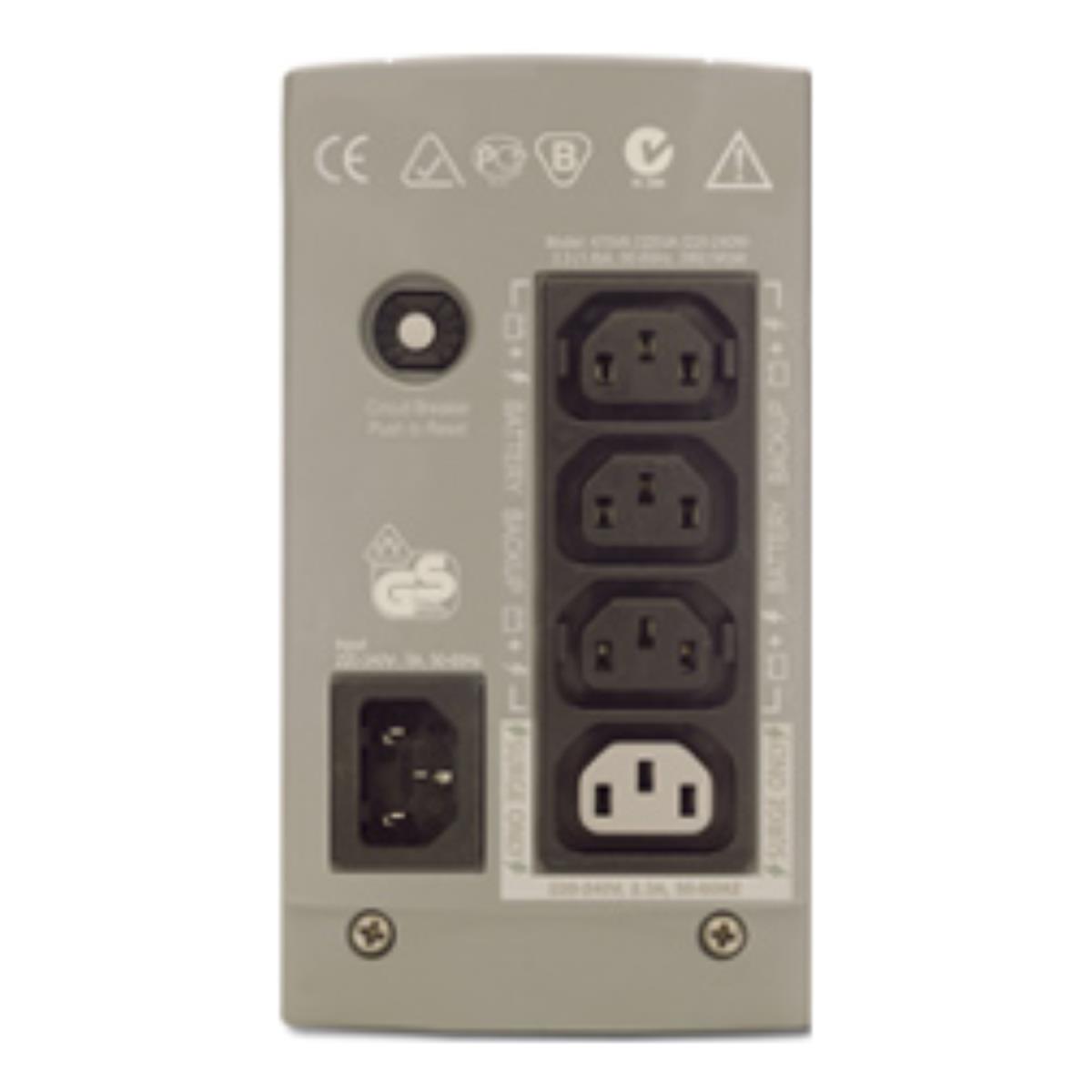

| Output connections | IEC 320 C13 |
| Input connection type | IEC 60320 C14 |
| Dimensions (WxDxH) | 91 x 284 x 165 mm |
| Package dimensions (WxDxH) | 241 x 368 x 178 mm |
| Output connection type | 3 IEC 60320C13; 1 IEC 60320C13surge; 2 IEC Jumpers |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Filtering description | 5% IEEE |
