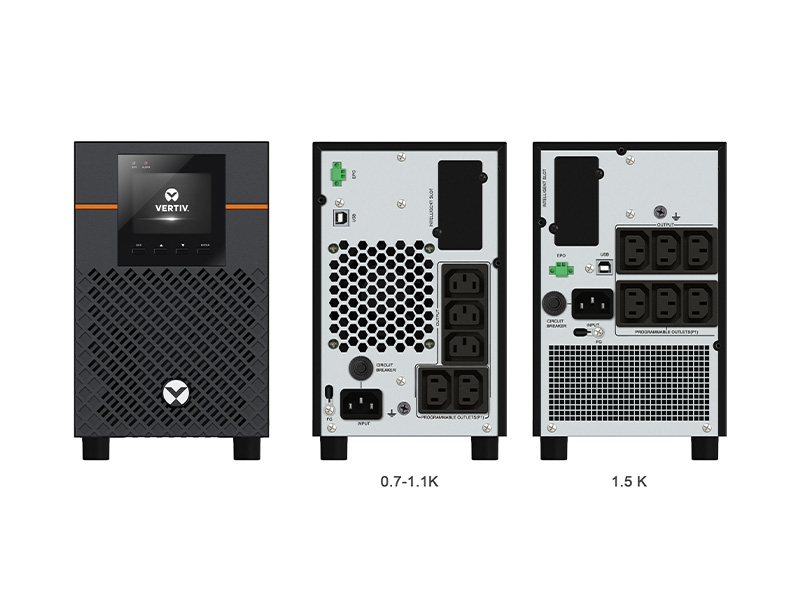

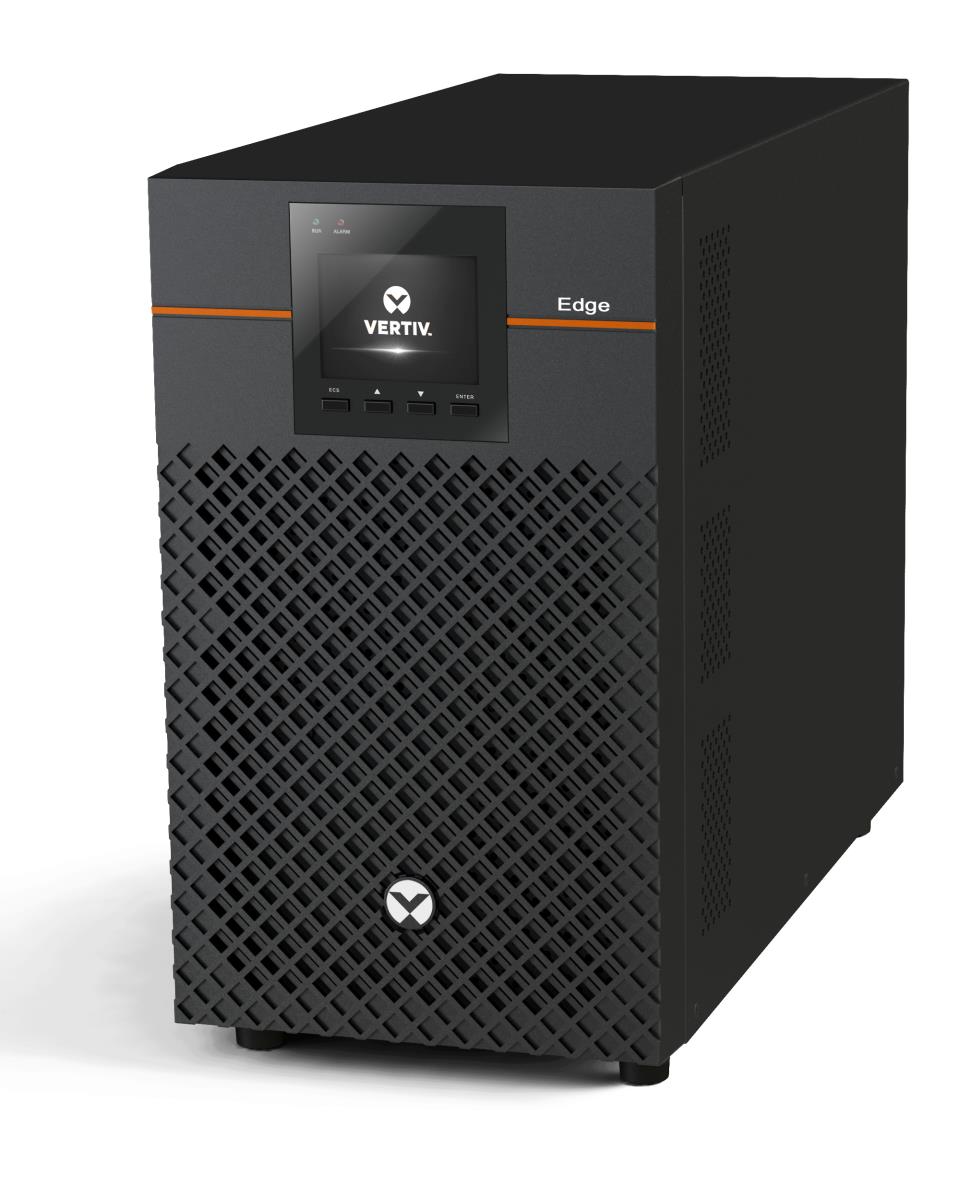

EDGE UPS 1.5kVA 230V Tower
Introduction
VertivT EDGE is a family of highly reliable, efficient, manageable and flexible line interactive sinewave UPSs for critical distributed and edge data center applications. The VertivT EDGE-1500IMT comes in a tower format and offers 1500VA/1350W of backup power protection for server and networking equipment. Featuring a high 0.9 power factor, controllable outlets, and an intuitive LCD screen, Vertiv EDGE is a simple, cost-effective choice for distributed and edge IT applications.
Specifications
| Power | |
|---|---|
| Output power | 1350 W |
| Output power capacity | 1500 VA |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output power | 1350 W |
| Output power capacity | 1500 VA |
| Input frequency | 55/65 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Power plug | C14 coupler |
| Design | |
| Rack capacity | 1U |
| Form factor | Mini Tower |
| Product colour | Black |
| Safety | EN60020-1: 2008 + A1: 2013 |
| Display | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 23 kg |
| Width | 4380 mm |
| Height | 440 mm |
| Depth | 6000 mm |
| Package width | 5700 mm |
| Package depth | 7800 mm |
| Package height | 2000 mm |
| Package weight | 31 kg |
| Certificates | |
| Safety | EN60020-1: 2008 + A1: 2013 |
| Other features | |
| Nominal output voltage | 200-240 V |
| Nominal input voltage | 230 V |
