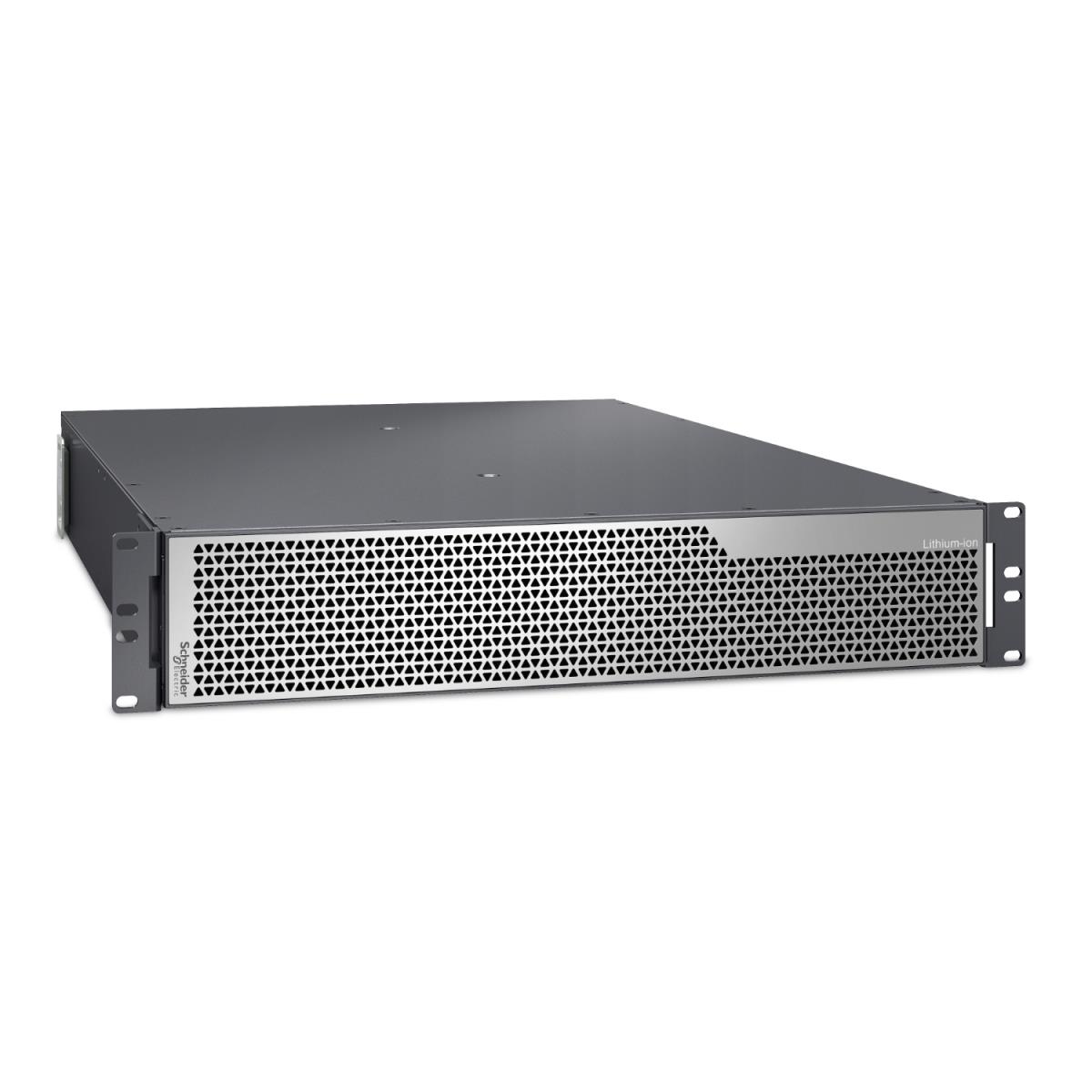

S-UPS ULTRA ONLINE L-ION XBP 180V 2U
Introduction
This product is part of the Smart-UPS battery systems, providing extended runtime to SRTL 5KVA mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded BMS monitoring at the cell, module, and cabinet level provides data of battery SOC and health. It is a lithium-ion battery with a 5-year warranty. Its dimensions are 724mm (depth) x 86mm (height) x 432mm (width) and weighs 32.4kg. Ideal for Smart-UPS on-line mission critical applications.
Specifications
| Features | |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 180 V |
| Certification | UL 1973 |
| Product colour | Silver |
| Country of origin | Philippines |
| Technical details | |
| Sustainability compliance | Yes |
| Total carbon footprint (kg of CO2e) | 309.9722627737226 |
| Compliance certificates | RoHS, REACH |
| Certificates | |
| Certification | UL 1973 |
| Compliance certificates | RoHS, REACH |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery replacement accessibility | End-user |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Weight | 32.4 kg |
| Width | 432 mm |
| Height | 86 mm |
| Depth | 724 mm |
| Packaging data | |
| Package width | 585 mm |
| Package height | 392 mm |
| Package depth | 984 mm |
| Package weight | 42 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Logistics data | |
| Country of origin | Philippines |
| Customs product code (TARIC) | 8507600090 |
| Total carbon footprint (kg of CO2e) | 309.9722627737226 |
